Banner – SG-TL70P-L

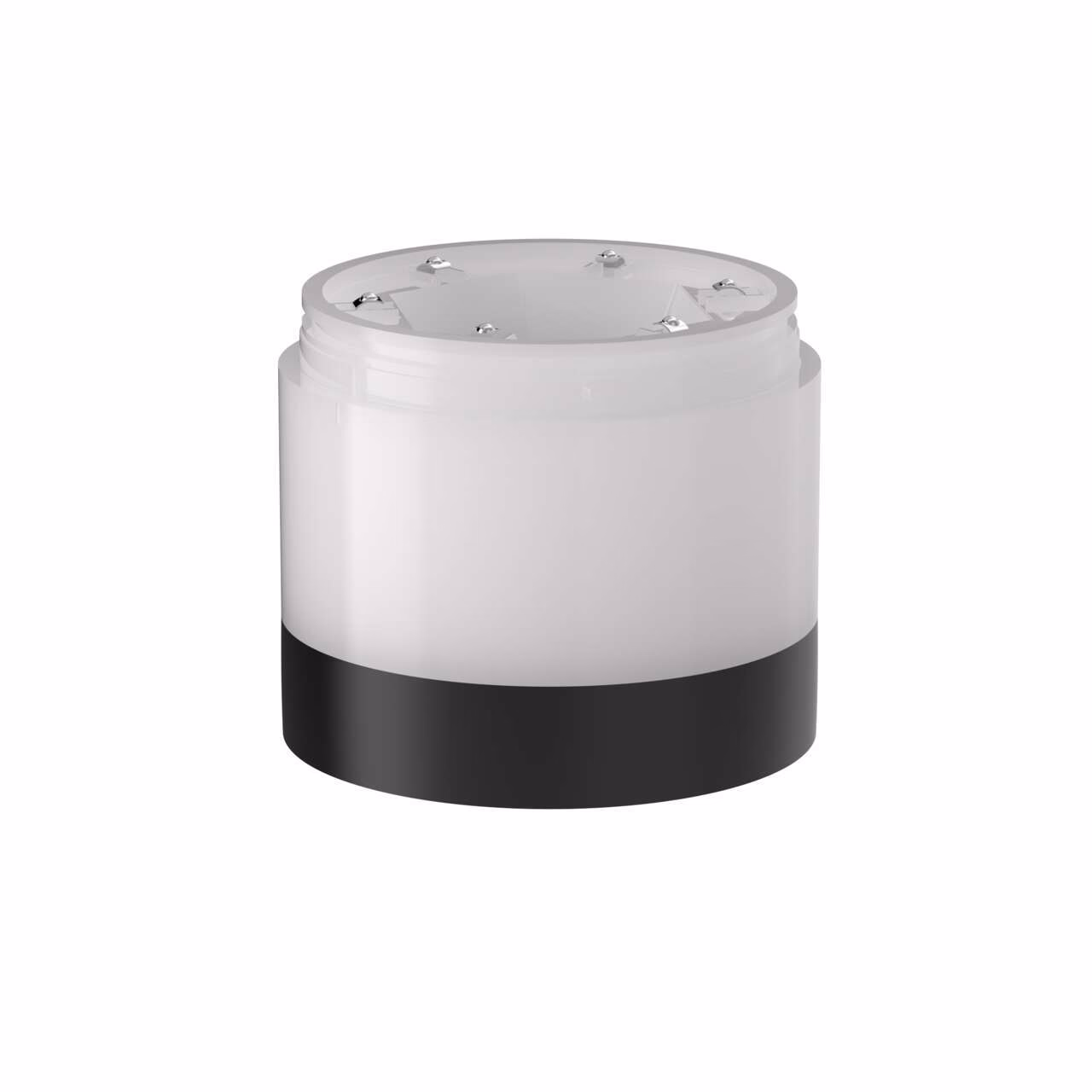

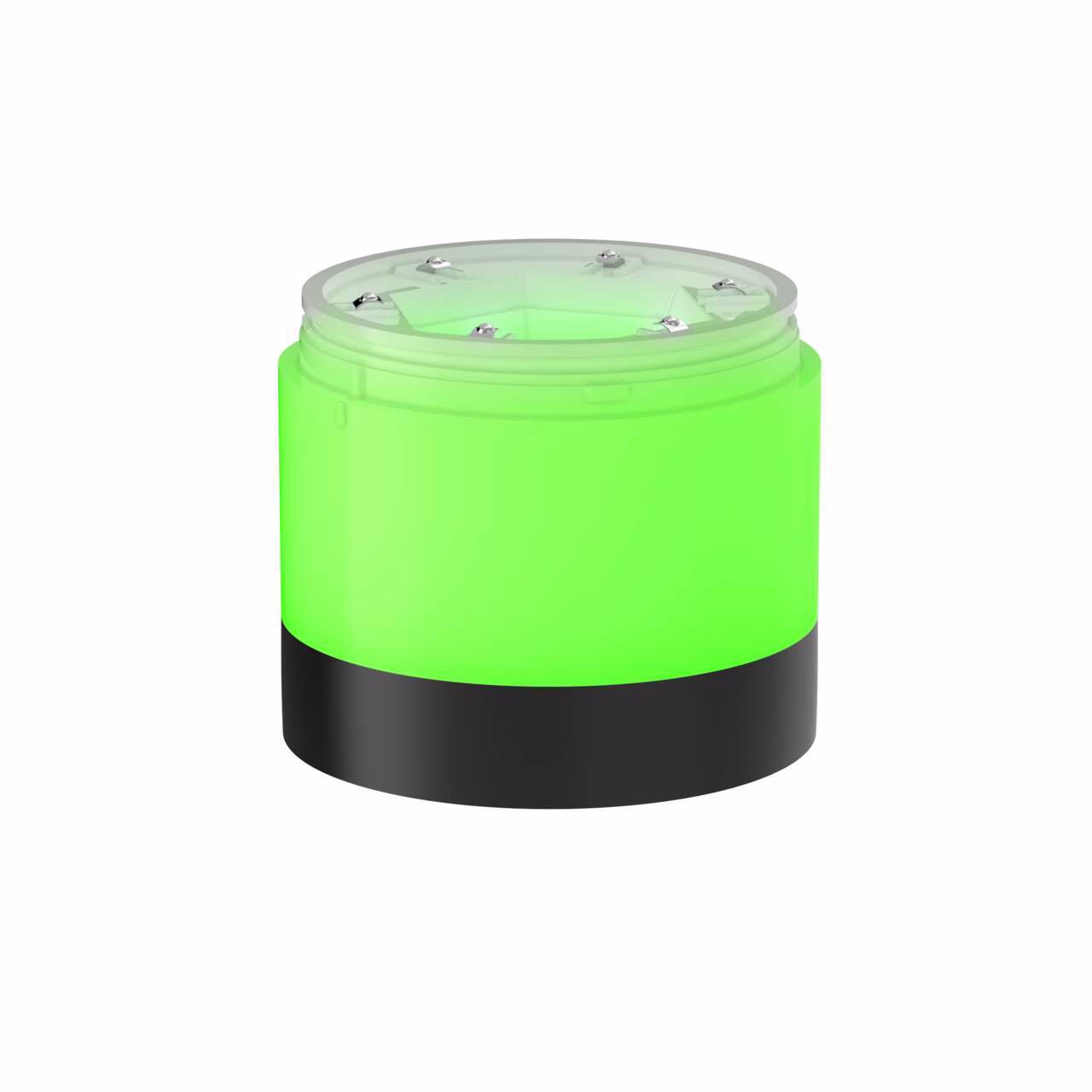

TL70 Pro Light Module
Use with B-TL70PE/M/POE bases Voltage: 12-30 V dc
Environmental Rating: IP65 14-color RGB; Black Housing
Ethernet and Modbus; Use with B-TL70PE-Q, B-TL70PM-Q, B-TL70 POE-Q, B-TL70PSK-Q bases
| Color Technology | RGB Configurable |
|---|---|
| Dimming Option | Programmable |
| Feature: Audible | No |
| Power Over Ethernet (PoE) | Yes |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Product Type | P |
| Animation Option 1 | Multiple |
| Color Option 1 | RGB |
| EtherNet/IP | Yes |
| Eye Shield | No |
| Housing Style | Segment – Light |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Light Module |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Modbus RTU | Yes |
| Mounting | No Thread |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 14 |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 50.0 |
| Power Good Output | DC |
| PROFINET | Yes |
| Programmable | Yes |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Number of Tower Light Segments | 1.0 |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 70 |
| Storage Temp (C) | -40 to 70 |
| Max Current - Audible Alarm (mA) | 125.0 |
| Options Available | Modbus |
Description
TL70 Pro Light Module
Use with B-TL70PE/M/POE bases Voltage: 12-30 V dc
Environmental Rating: IP65 14-color RGB; Black Housing
Ethernet and Modbus; Use with B-TL70PE-Q, B-TL70PM-Q, B-TL70 POE-Q, B-TL70PSK-Q bases
