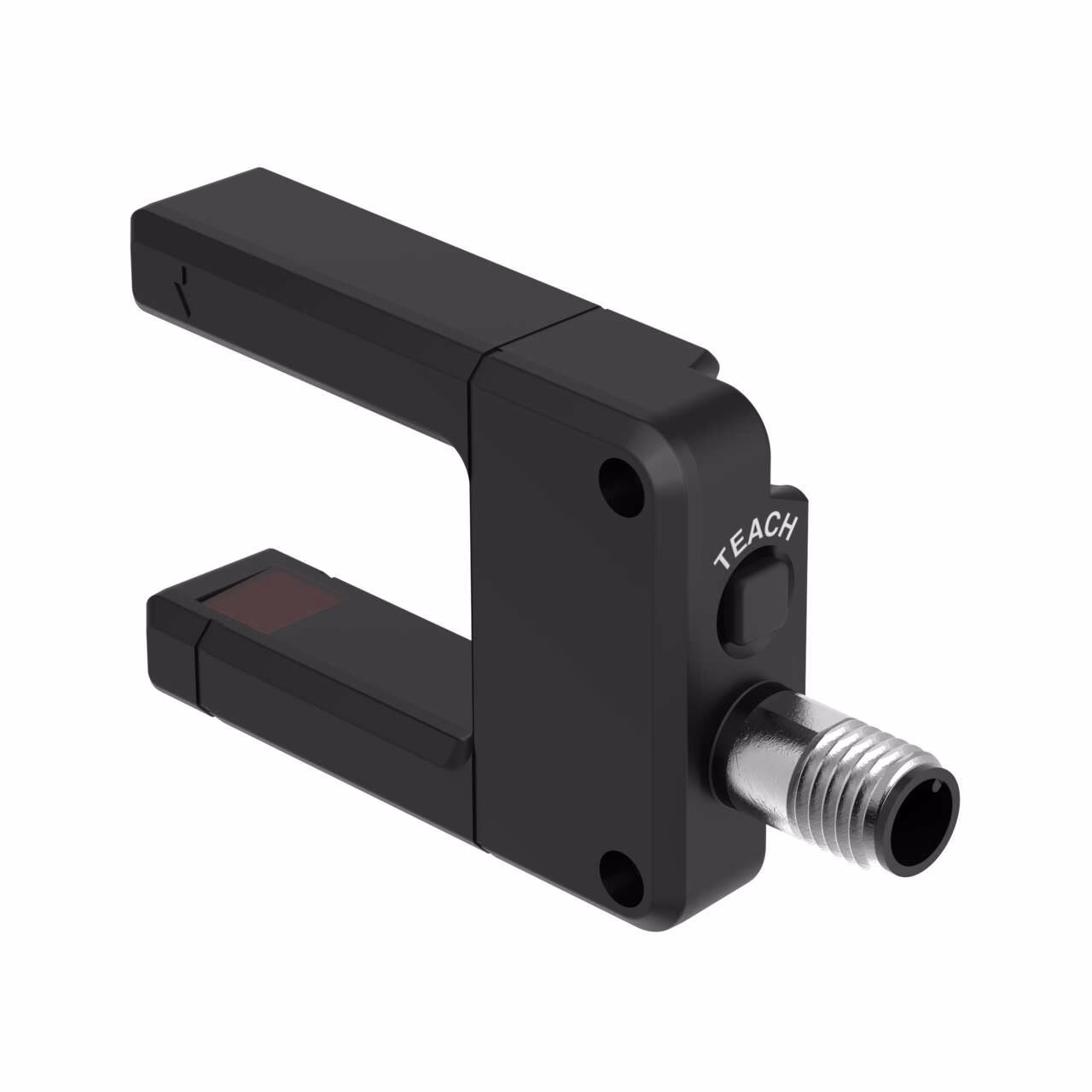

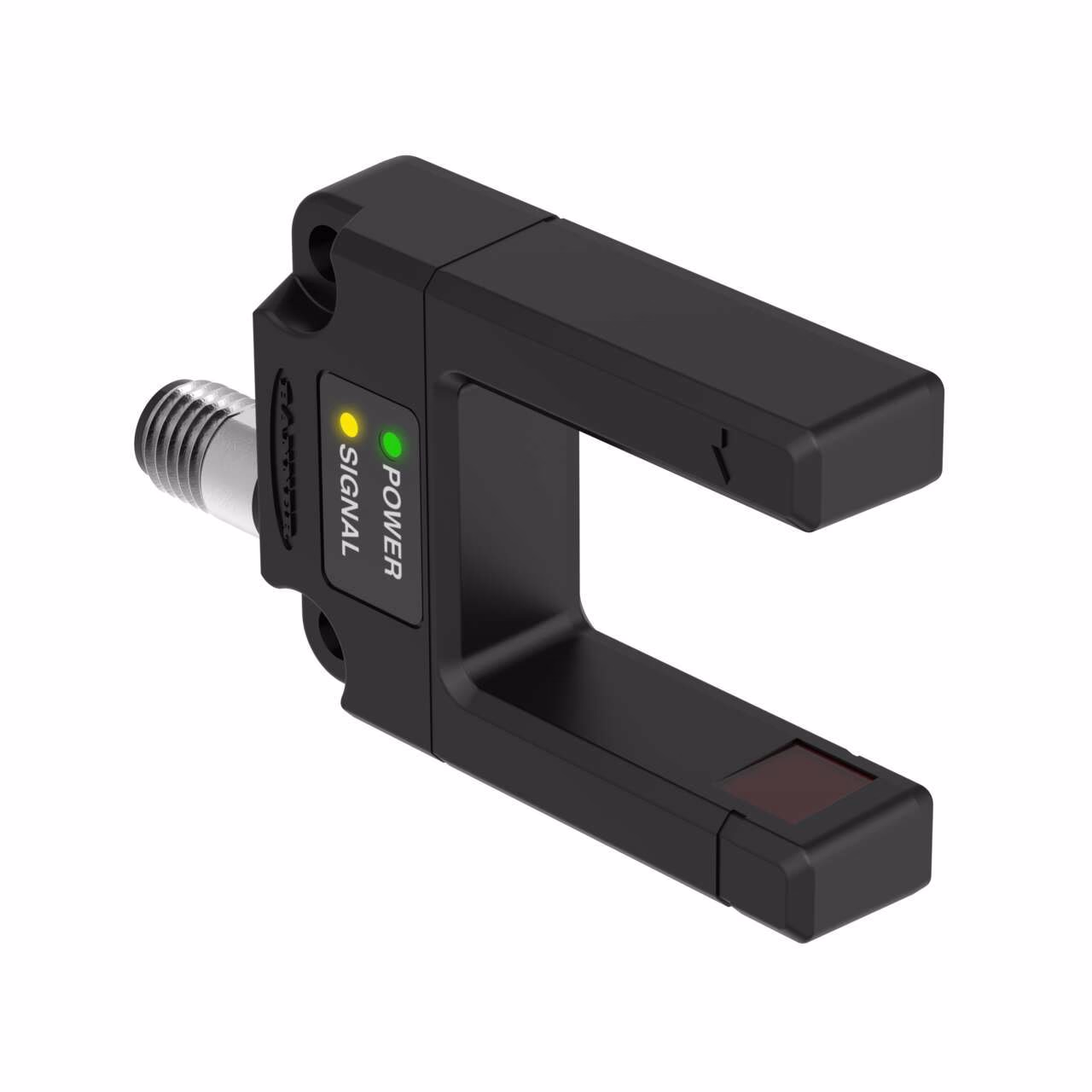

Banner – SLE30B6VYQ
SLE30 EXPERT Series: Teach Mode Slot Sensor
Slot width: 30 mm; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
M12 Integral QD
| Connection | Integral QD |
|---|---|
| Max Op. Temperature [?C] | 60 |
| Max Sensing Range (mm) | 30 |
| Min Op. Temperature [?C] | -20 |
| Minimum Object Detection (mm) | 1.8 |
| Outputs | Bipolar (NPN & PNP) |
| Power Supply/Supply Voltage | 10-30 V dc |
| Slot Depth/Array Length (mm) | 45 |
| Adjustments | Teach Button |
| Connection technology signal | Emitter/Receiver Pair |
| Feature | Quick Disconnect |
| Homerun Exit Location | 0.15 |
| Housing Style | Slot |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of measuring axes | 1.8 |
| Number of pins | 5 |
| Operation | Light/Dark Operate |
| Port | M12 |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 1000 |
| Repeatability (µs) | 75 |
| Max op. relative humidity (%).1 | 90% @ 50°C |
| Slot Overall Depth (mm) | 52 |
| Special feature | Remote Teach |
Description
SLE30 EXPERT Series: Teach Mode Slot Sensor
Slot width: 30 mm; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
M12 Integral QD
