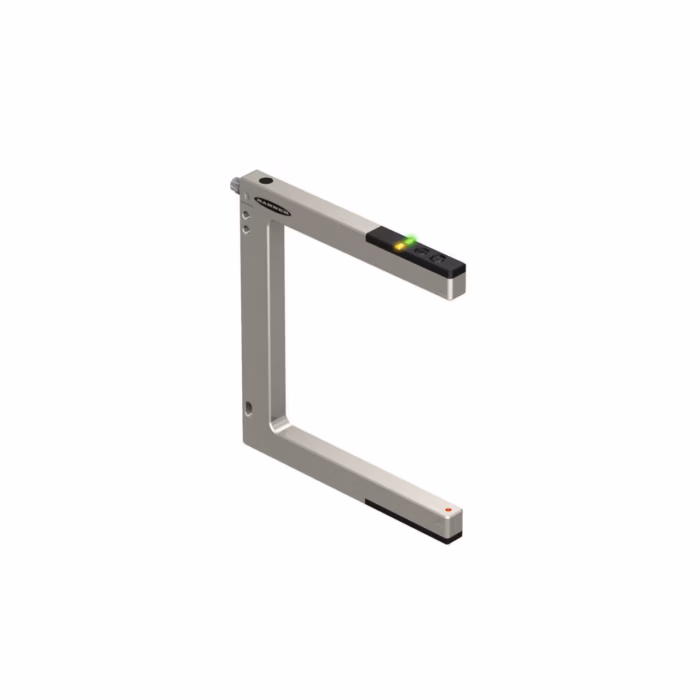

Banner – SLM220P6Q
SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor
Slot Width: 220 mm; Input 10-30 V dc
Output: PNP
3-pin M8 Integral QD
| Connection | Integral QD |
|---|---|
| Max Op. Temperature [?C] | 60 |
| Max Sensing Range (mm) | 220 |
| Min Op. Temperature [?C] | -20 |
| Minimum Object Detection (mm) | 1 |
| Outputs | PNP |
| Power Supply/Supply Voltage | 10-30 V dc |
| Slot Depth/Array Length (mm) | 120.7 |
| Adjustments | Potentiometer |
| Connection technology signal | Emitter/Receiver Pair |
| Feature | Quick Disconnect |
| Homerun Exit Location | 0.5 |
| Housing Style | Slot |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of measuring axes | 1 |
| Number of pins | 3 |
| Operation | Light/Dark Operate |
| Port | M8 |
| Protection class shaft | IP67 |
| Receptacle housing material B | Zinc Die-Cast with Nickel-Plating |
| NEMA / UL Type Rating | NEMA 6 |
| Delay at Power-up (ms) | 100 |
| Repeatability (µs) | 95 |
| Max op. relative humidity (%).1 | 95% @ 55°C |
| Slot Overall Depth (mm) | 252 |
Description
SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor
Slot Width: 220 mm; Input 10-30 V dc
Output: PNP
3-pin M8 Integral QD
