Banner – SLO30VP6YQPMADO

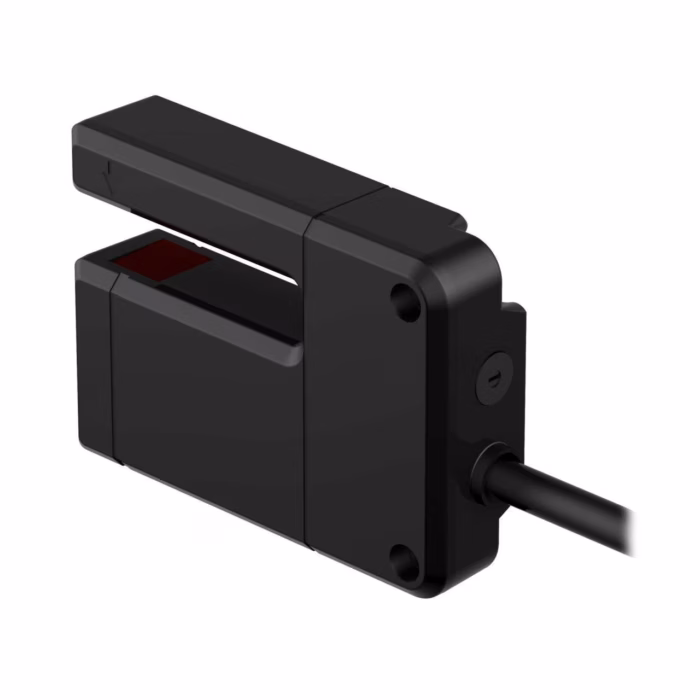

SLO30 VP6YQPMADO SLO Series Slot Sensor
Slot Width: 30.2 mm (1.19 in); Input: 10-30 V dc; Output: PNP Only Dark Operate
150 mm (6 in) 4-pin M12 PUR Pigtail QD
| Connection | Pigtail PUR QD |
|---|---|
| Max Op. Temperature [?C] | 70.0 |
| Max Sensing Range (mm) | 30.0 |
| Min Op. Temperature [?C] | -40.0 |
| Outputs | PNP |
| Power Supply/Supply Voltage | 10-30 V dc |
| Connection technology signal | Emitter/Receiver Pair |
| EPLAN Original Sent Date | 02/25/2026 |
| EPLAN Status | Pending Publish |
| Feature | Quick Disconnect |
| Homerun Exit Location | 0.3 |
| Housing Style | Slot |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of measuring axes | 2 |
| Number of pins | 4 |
| Operation | Dark Operate |
| Port | M12 |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Slot width (mm) | 0.2 |
| NEMA / UL Type Rating | NEMA 4X |
| Repeatability (µs) | 75 |
| Max op. relative humidity (%).1 | 90% @ 50°C |
| Slot Overall Depth (mm) | 52.0 |
| Slot Depth/Array Length (mm) | 45.0 |
Description
SLO30 VP6YQPMADO SLO Series Slot Sensor
Slot Width: 30.2 mm (1.19 in); Input: 10-30 V dc; Output: PNP Only Dark Operate
150 mm (6 in) 4-pin M12 PUR Pigtail QD
