Banner – SLPE25-830AP8

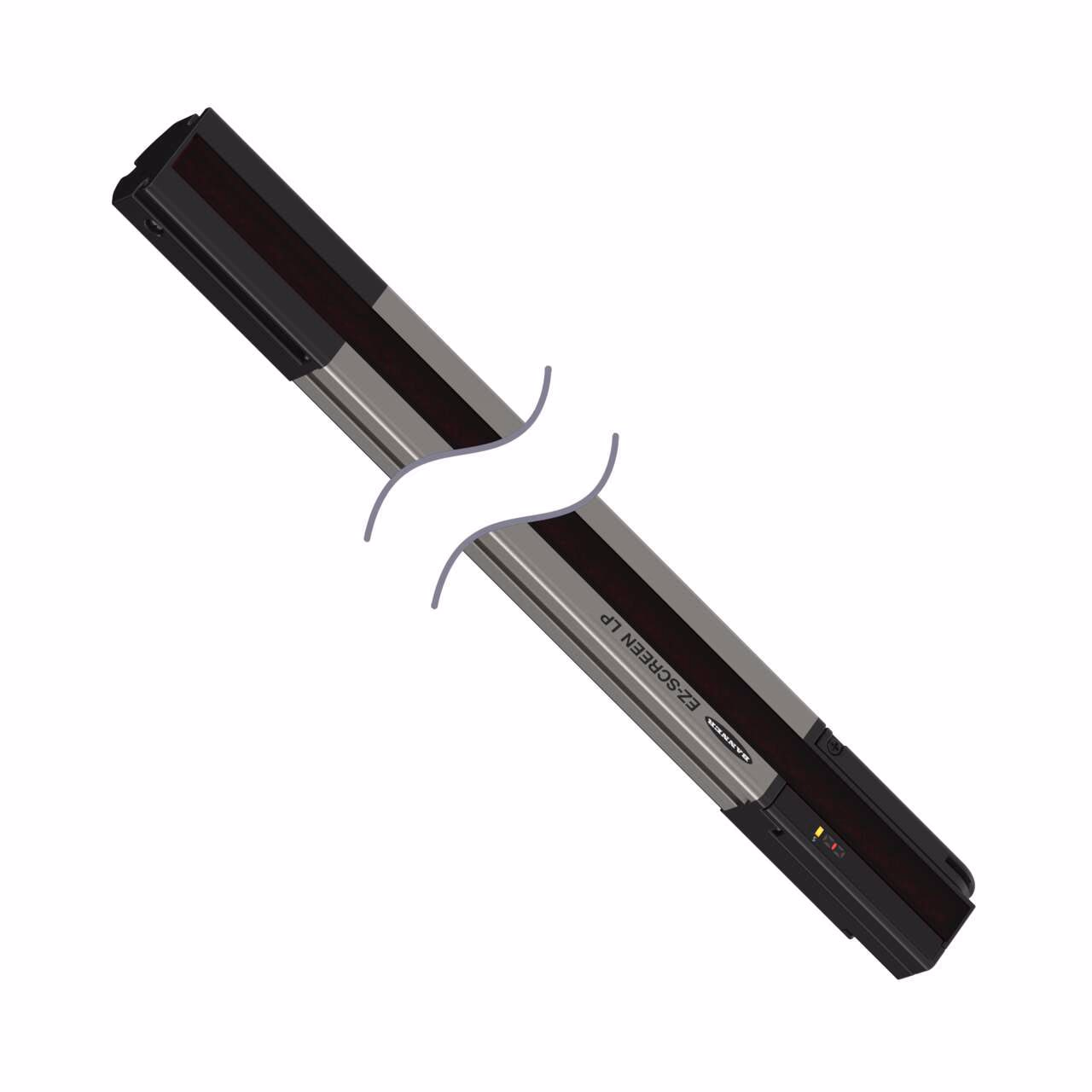

SLPE25-830 AP8 EZ-SCREEN Low Profile EMITTER
Resolution: 25 mm; Response (Tr): 14 ms; Beams: 42
Range: 0.1-7 m (4 in – 23 ft); Height: 830 mm (32.7 in)
300 mm (1 ft) 8-pin M12 Pigtail QD; Housing: Anodized Aluminum
| Auxiliary Output | No |
|---|---|
| Max Operating Range (m) | >4 – <=8 |
| Resolution (mm) | 25 |
| Test Input | Yes |
| Connector type | M12 Pigtail (Yellow) |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Electrical Safety Class | III |
| External Monitoring Device | No |
| Fault Output | Yes |
| Feature | End-to-End Sensing |
| Functional safety (SIL/PL) | SIL3; CL3 |
| Housing Finish | Clear Anodized |
| Housing material | Aluminum; Zinc; Acrylic |
| Item Status | RELEASED |
| Number of channels | 0.1 – 7 |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| Operating voltage | 24 V dc |
| Number of Pins (Receiver/Emitter) | 8 |
| PL Rating | Ple |
| Protection class shaft | IP65 |
| Receptacle housing material B | Aluminum |
| Recovery Time | 25-152 / 81-495 |
| Resolution incremental (ppr) | No |
| Safety Level | Type 4 |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| Supply Current | 60 mA max. |
| System Type | Emitter |
| Vibration | 10-55 Hz at 0.35 mm |
| Overall Length (mm) | 830.0 |
| Defined Area Height Range (mm) | >650 – <=950 |
| Defined Area Height (mm) | 830.0 |
| Dimensions WxD (mm) | 28 x 26 |
Description
SLPE25-830 AP8 EZ-SCREEN Low Profile EMITTER
Resolution: 25 mm; Response (Tr): 14 ms; Beams: 42
Range: 0.1-7 m (4 in – 23 ft); Height: 830 mm (32.7 in)
300 mm (1 ft) 8-pin M12 Pigtail QD; Housing: Anodized Aluminum
