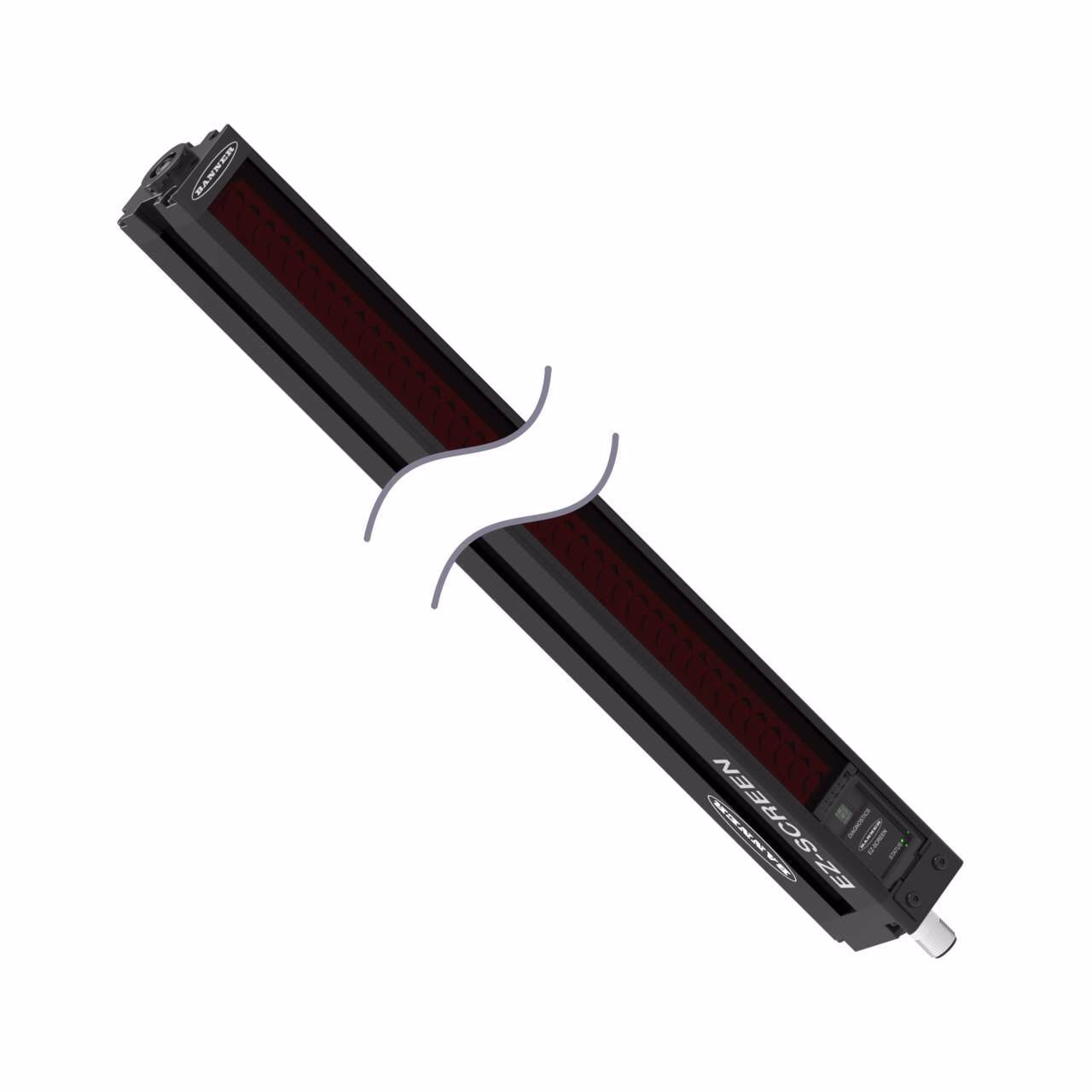

Banner – SLSE30-750P4NT
EZ-SCREEN Emitter
Resolution: 30 mm; Range: 18 m (60 ft)
Defined Area: 750 mm (29.5 in); Housing Length: 821 mm (32.3 in)
Connection: 4-pin M12 Pigtail Connector; No test Input
| Auxiliary Output | Yes |
|---|---|
| Max Operating Range (m) | >8 – <=20 |
| Resolution (mm) | 30 |
| Test Input | No |
| Connector type | M12 Pigtail (Yellow) |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Electrical Safety Class | III |
| External Monitoring Device | No |
| Fault Output | No |
| Functional safety (SIL/PL) | SIL3; CL3 |
| Housing Finish | Black Polyester |
| Housing material | Aluminum; Zinc; Acrylic |
| Item Status | RELEASED |
| Nominal voltage | 24 V dc at 0.5 A each |
| Number of channels | 0.1 – 18 |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| Operating voltage | 24 V dc |
| Number of Pins (Receiver/Emitter) | 4 |
| PL Rating | Ple |
| Protection class shaft | IP65 |
| Receptacle housing material B | Aluminum |
| Recovery Time | 25-152 / 81-495 |
| Resolution incremental (ppr) | Yes |
| Safety Level | Type 4 |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| Supply Current | 100 mA max. |
| System Type | Emitter |
| Vibration | 10-55 Hz at 0.35 mm |
| Overall Length (mm) | 821.0 |
| Defined Area Height Range (mm) | >650 – <=950 |
| Defined Area Height (mm) | 750.0 |
| Dimensions WxD (mm) | 36 x 45.2 |
Description
EZ-SCREEN Emitter
Resolution: 30 mm; Range: 18 m (60 ft)
Defined Area: 750 mm (29.5 in); Housing Length: 821 mm (32.3 in)
Connection: 4-pin M12 Pigtail Connector; No test Input
