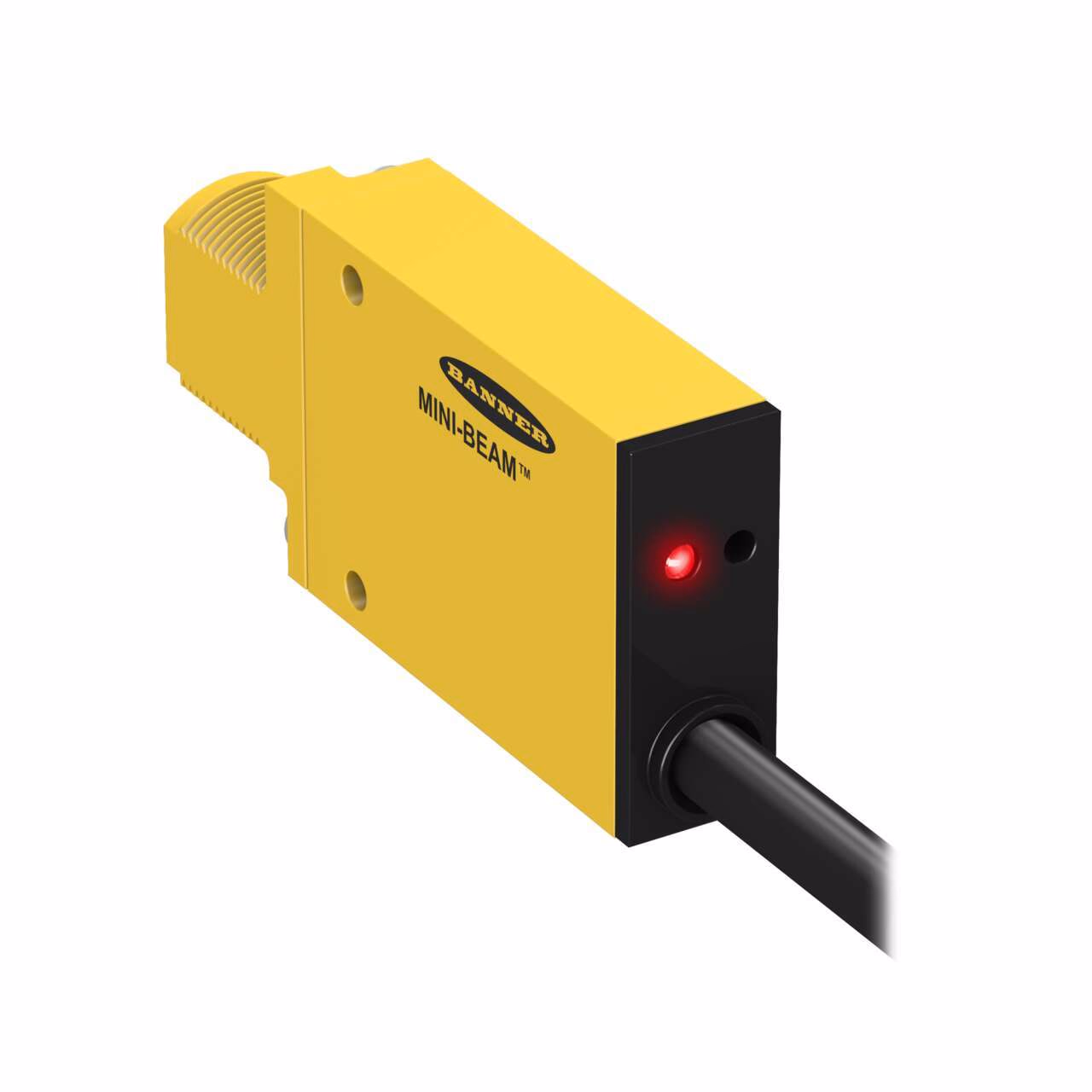

Banner – SMA31EL
MINI-BEAM: Emitter
Range: 30 m; Input: 24-240 V ac
Output: Not Applicable
2 m (6.5 ft) Cable
| Connection | Cable |
|---|---|
| Sensing Mode (General) | Opposed |
| Adjustments | Potentiometer |
| Connection technology signal | Emitter |
| DeviceNet | No |
| EPLAN Status | Published |
| Feature | Encapsulated |
| Housing Style | Rectangular w/M18 Mount |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 2 |
| Operating voltage | 24-240 V ac |
| Opposed Mode Emitter/Receiver | Emitter |
| Power Good Output | AC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Max Sensing Distance (mm) | 30000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 18 |
Description
MINI-BEAM: Emitter
Range: 30 m; Input: 24-240 V ac
Output: Not Applicable
2 m (6.5 ft) Cable
