Banner – SSA-EB3PL1-11

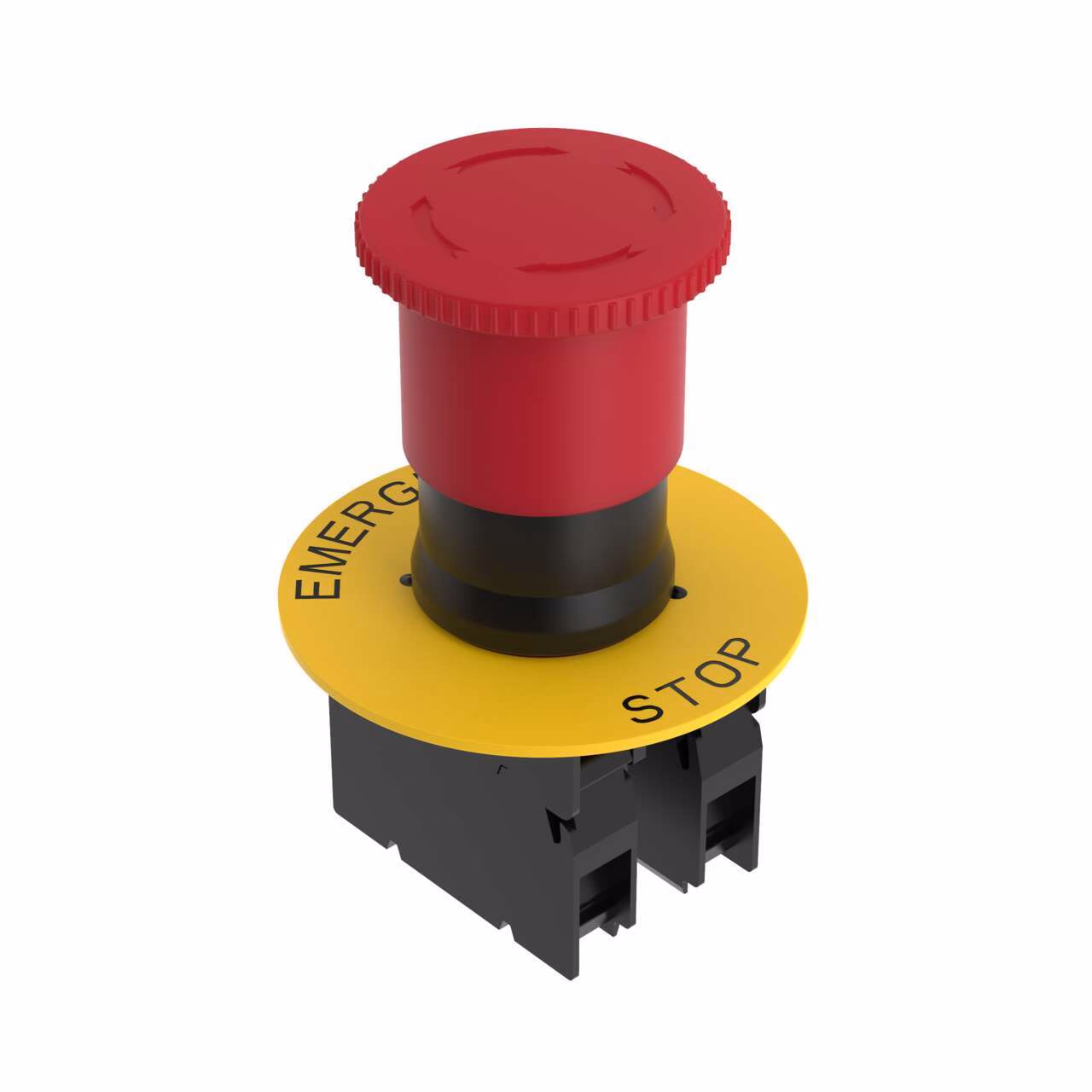

SSA-EB1 Panel-mount Emergency Stop Push Button
40 mm Actuator, LED Indication, 24 V AC/DC
Contacts: 1NO/1NC
Screw Terminals; 22 mm Mounting hole
| Actuated Color | Red or OFF |
|---|---|
| Armed Color (Solid) | OFF or Red |
| Button Diameter (mm) | 40 |
| Contact Quantity | 1 NC, 1 NO |
| Contact Rating | 8 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 79 x 30 x 42 |
| Illumination Type | Button |
| Max Operating Temperature (C) | 55 |
| Min Operating Temperature (C) | -20 |
| Mounting Thread/Style | Panel |
| Actuation | Twist/Pull-to-Release |
| Device type | Push Button |
| Feature | Illuminated |
| Housing Style | Base |
| Item Status | RELEASED |
| Operating voltage | 21.6-26.4 V ac/dc |
| Protection class shaft | IP20, IP65 |
| Receptacle housing material A | Thermoplastic |
| Receptacle housing material B | Polyamide |
| Voltage supply connection | Screw Terminal |
Description
SSA-EB1 Panel-mount Emergency Stop Push Button
40 mm Actuator, LED Indication, 24 V AC/DC
Contacts: 1NO/1NC
Screw Terminals; 22 mm Mounting hole
