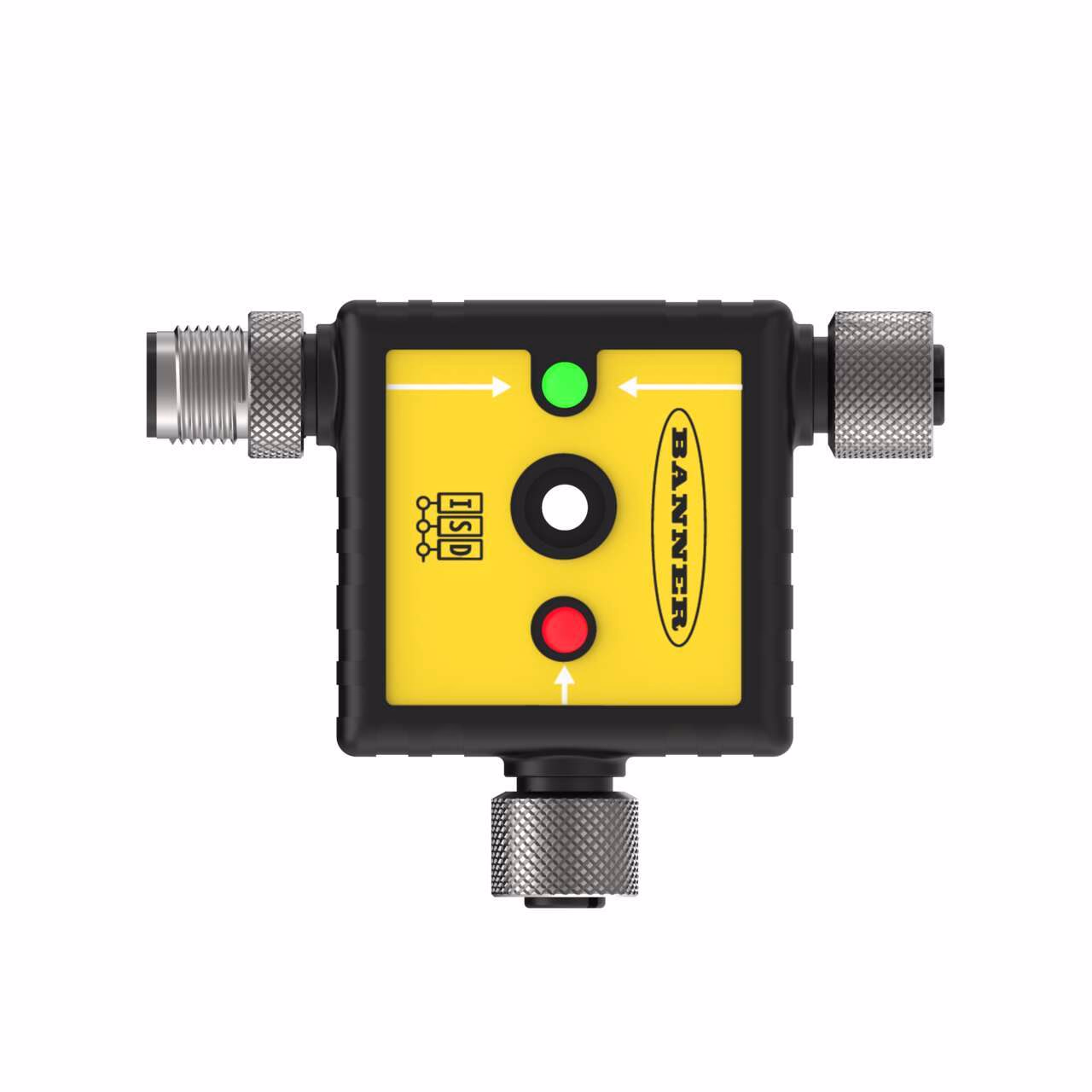

Banner – SSA-ISD-TCA
ISD Connect
Input Type 2NC Safe
Input Connector 5-pin M12 A
Pin1: Ch1a, Pin2: Ch1b, Pin3: N/C, Pin4: Ch2a, Pin5: Ch2b
| Connector 2 Gender | Female |
|---|---|
| ISD Connect Compatible | Yes |
| SISTEMA | PFHd of 6.56 x 10-9 |
| Safety Category | Cat 4 |
| Connector B | Male |
| EPLAN Original Sent Date | 12/07/2024 |
| EPLAN Status | Published |
| Functional safety (SIL/PL) | SIL CL 3 |
| Input voltage | 24 V dc @ 30 mA each |
| Item Status | RELEASED |
| Operating voltage | 24 V dc |
| PL Rating | PL e |
| Protection class shaft | IP65, IP67 |
| Setting option | ISD and OSSDs |
| Signal type | ISD and OSSDs |
| IO-Link Device | No |
| Modbus Server | No |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | ISD Connect |
| Modbus Client | No |
| Input | Safety Device 2NC Contacts |
| Device Size (mm) | 45 x 45 |
| Connector 1 Pin Count | 4.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 4.0 |
| Current | <100 mA |
Description
ISD Connect
Input Type 2NC Safe
Input Connector 5-pin M12 A
Pin1: Ch1a, Pin2: Ch1b, Pin3: N/C, Pin4: Ch2a, Pin5: Ch2b
