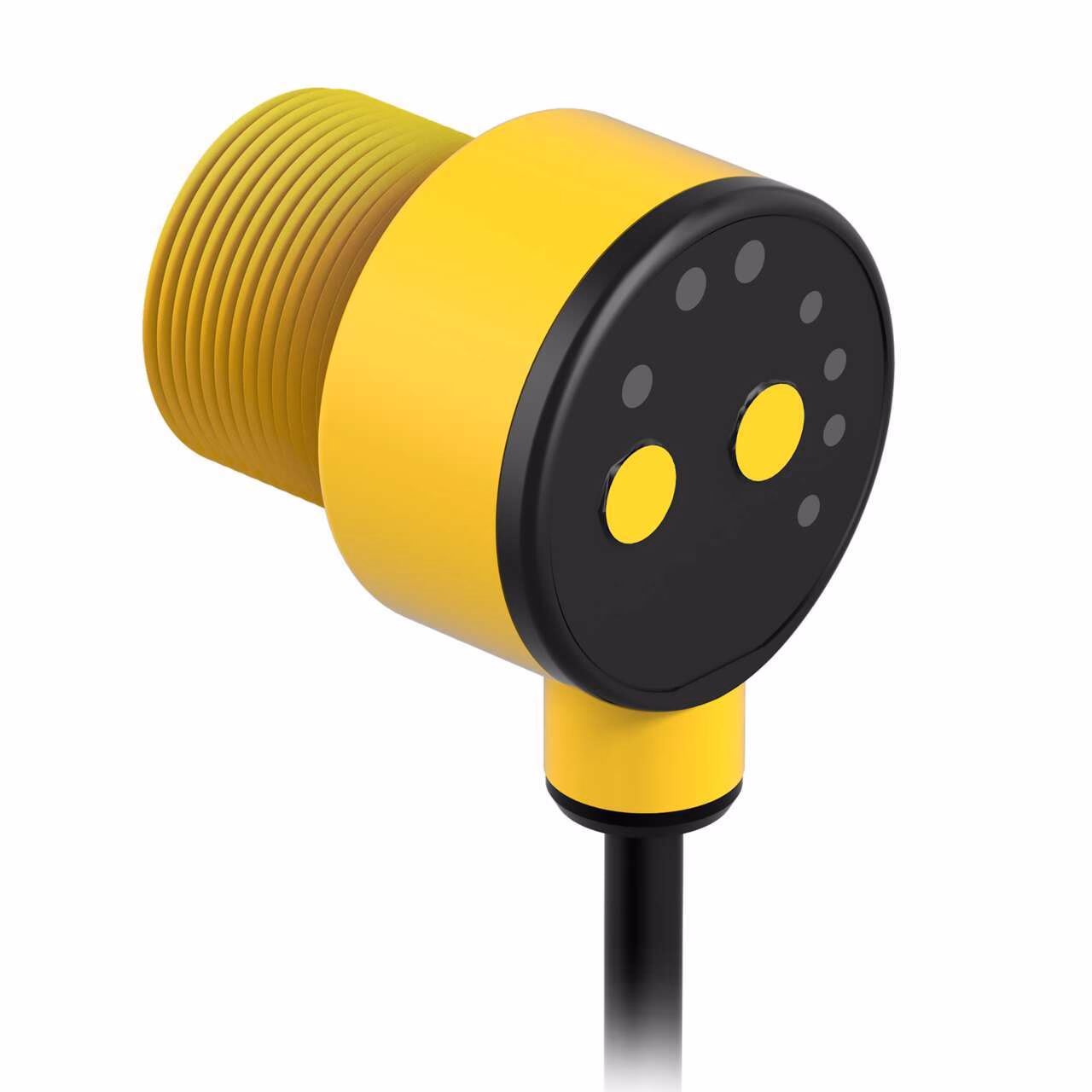

Banner – T30UXIC-CRFV W/30
T30UX Series: CRFV Coating W/Flange
w/ Analog Output
Range: 300 mm – 1.5 m; Input: 10-30 V dc
Analog Output: 4-20 mA
9 m (30 ft) Cable
| Analog Output Configuration | 4-20 mA |
|---|---|
| Connection | Flying Leads |
| Jam Detection | No |
| Laser Control | No |
| Minimum Sensing Distance (mm) | 300.0 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Ultrasonic Frequency (kHz) | 114.0 |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| Feature | Chemical Resistant, Clear Object Detection, Remote Teach |
| Housing Style | Barrel |
| Input/Output | Analog |
| Item Status | RELEASED |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | PBT |
| RS-232 | No |
| Screw-in thread | M36 |
| Sensing Beam | Ultrasonic |
| Slot width (mm) | 9 |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 1500.0 |
Description
T30UX Series: CRFV Coating W/Flange
w/ Analog Output
Range: 300 mm – 1.5 m; Input: 10-30 V dc
Analog Output: 4-20 mA
9 m (30 ft) Cable
