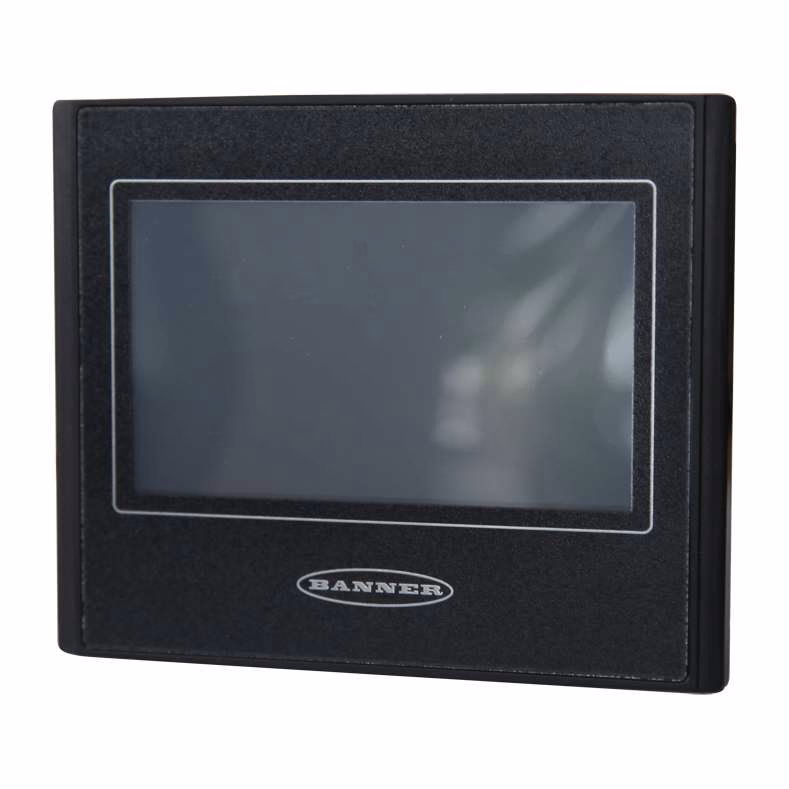

Banner – THM043C3
HMI: 4.3 in TFT LCD with LED Back Light
Resolution: 480 X 272; 65535 Colors; Supply Voltage: 12-24 V dc
2 USB Ports; 64M Flash Memory
Operating Temperature: -10? to 50?
| Resolution (pixels) | 480 x 272 |
|---|---|
| Environmental Rating | IP54 |
| EtherNet/IP | No |
| Item Status | RELEASED |
| System Memory | 64 MB |
| Audio | Optional |
| Display Size(cm) | 10.92 |
| Battery Backup Memory | 128 KB |
| HMI Type | Compact |
| Dimension | 129.0mm x 103.0mm x 26.3mm |
Description
HMI: 4.3 in TFT LCD with LED Back Light
Resolution: 480 X 272; 65535 Colors; Supply Voltage: 12-24 V dc
2 USB Ports; 64M Flash Memory
Operating Temperature: -10? to 50?
