Banner – WLB72IZCW1200D25ACT

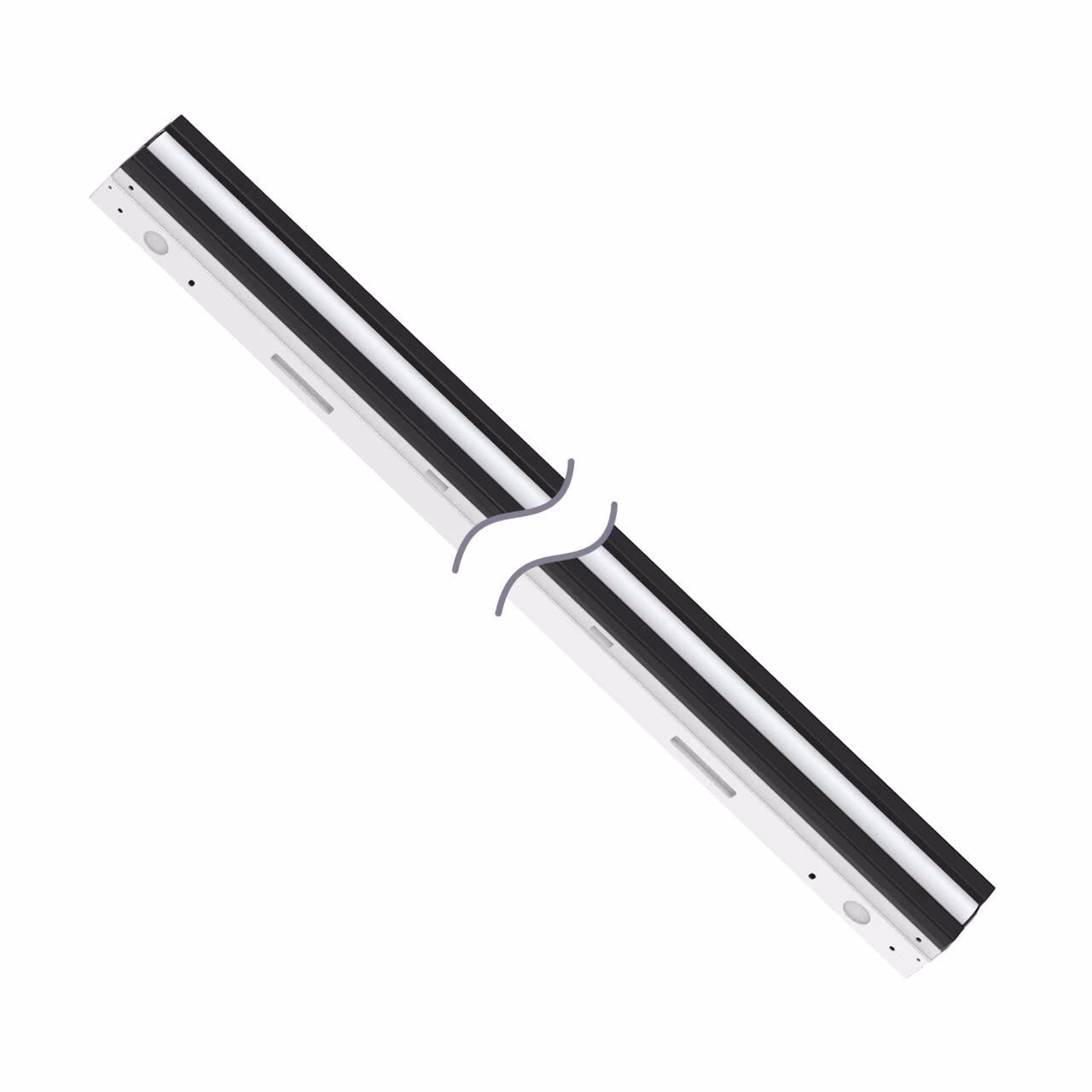

WLB72 Inspection Light Bar
Length: 1200 mm; Environ. Rating: IP20
Voltage: 120-277 V ac; 0-10 V dc Analog Dimming
Color: Daylight White; 80 CRI; 25 mm Diffuse window
Conduit Openings – No Power cord; Cascadable
| Color Technology | Standard LED |
|---|---|
| Connection | Conduit |
| Dimming Option | 0-10 V dc |
| Feature: Audible | No |
| Input Type | AC |
| Primary Housing Color | White |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Daylight White |
| Environmental Rating | IP20 |
| Eye Shield | No |
| Feature | Cascade |
| Housing Style | Linear Strip |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 4225.0 |
| Mounting | No Thread |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 5.0 |
| Operating voltage | 120-277 V ac |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 1222.0 x 72.0 x 68.0 |
| Power Good Output | AC |
| Protection class shaft | IP20 |
| Radio interface | No |
| Receptacle housing material B | Galvanized Steel |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 72 |
| Max Current Color (mA) | 850.0 |
| Storage Temp (C) | -40 to 70 |
| Illuminated Length (LxWxH mm) | 1200.0 |
| CRI | 80.0 |
Description
WLB72 Inspection Light Bar
Length: 1200 mm; Environ. Rating: IP20
Voltage: 120-277 V ac; 0-10 V dc Analog Dimming
Color: Daylight White; 80 CRI; 25 mm Diffuse window
Conduit Openings – No Power cord; Cascadable
