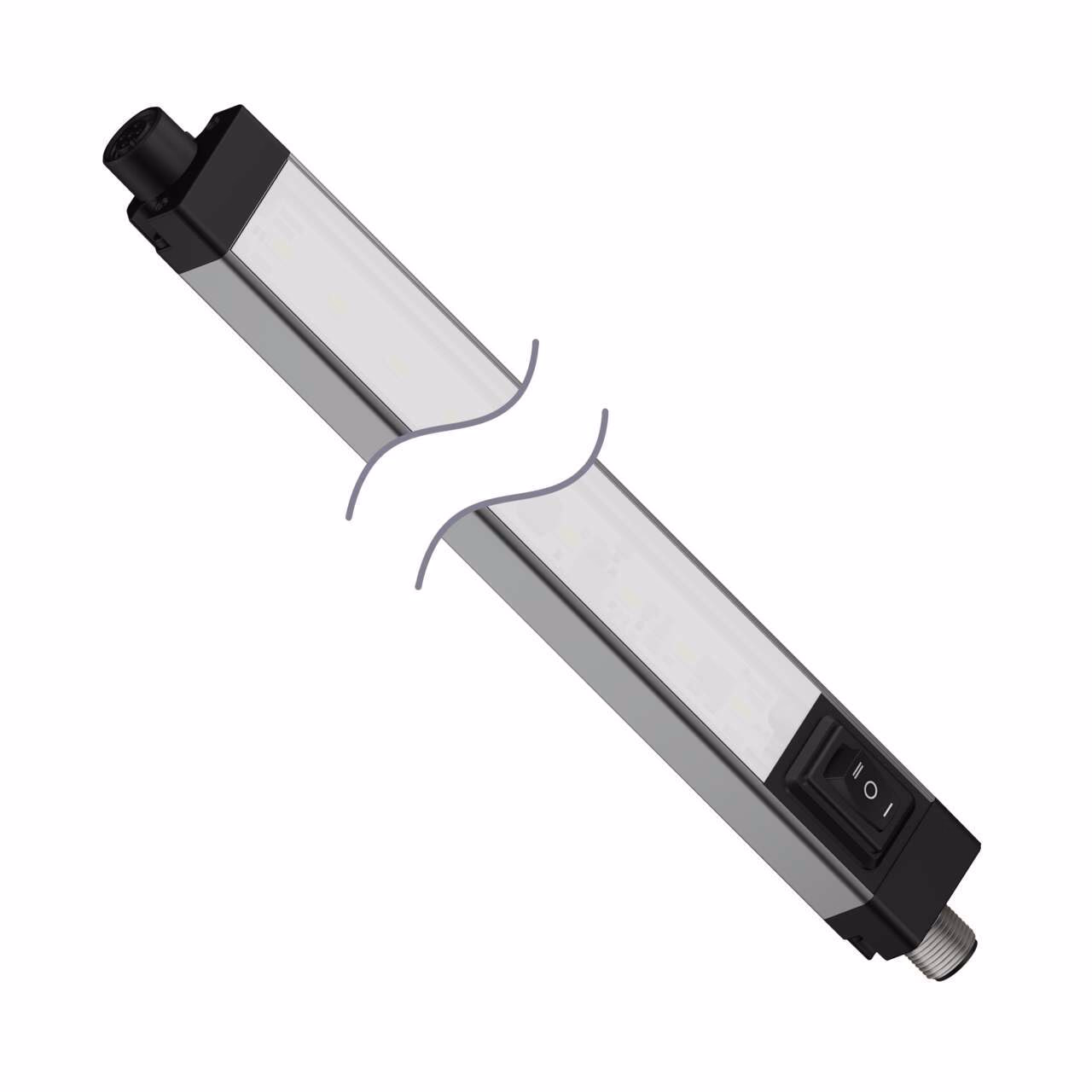

Banner – WLS28-2CUV395-285XPBQ
WLS28-2 Work Light Strip; switched; Length: 285 mm
Voltage: 12-30 V dc; Environmental Rating: IP50
Color: UV395; Cascadable
4-pin M12 Integral QD
| Color 1 - IR/UV Intensity (mW) | 850 |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Dimming Option | High-Low-Off |
| Feature: Audible | No |
| Illumination Switch Function | I=Low; O=OFF; II=High |
| Primary Window Material | Polycarbonate Clear |
| Pro-Editor Compatible (Discrete) | No |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 395 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Ultraviolet |
| Environmental Rating | IP50 |
| Eye Shield | No |
| Feature | Cascade, Quick Disconnect |
| Housing Style | Linear Strip |
| Indication | No |
| IO Link | No |
| Item Status | RELEASED |
| Light type | Yes |
| Mounting | No Thread |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 365.0 x 28.0 x 25.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP50 |
| Radio interface | No |
| Receptacle housing material B | Aluminum |
| Min Op. Temperature (C) | -40 |
| High Temperature (up to 100 C) | 70 |
| Product Size (mm) | 28 |
| Touchscreen | No |
| USB | No |
| Storage Temp (C) | -40 to 70 |
| Illuminated Length (LxWxH mm) | 285 |
Description
WLS28-2 Work Light Strip; switched; Length: 285 mm
Voltage: 12-30 V dc; Environmental Rating: IP50
Color: UV395; Cascadable
4-pin M12 Integral QD
