BL compact Fieldbus Station for CANopen BLCCO-8M12LT-4AI-VI-4DO-2A-P
BL compact Fieldbus Station for CANopen
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Connection technology signal | M12 |
| Device type | Compact station, I/O Module |

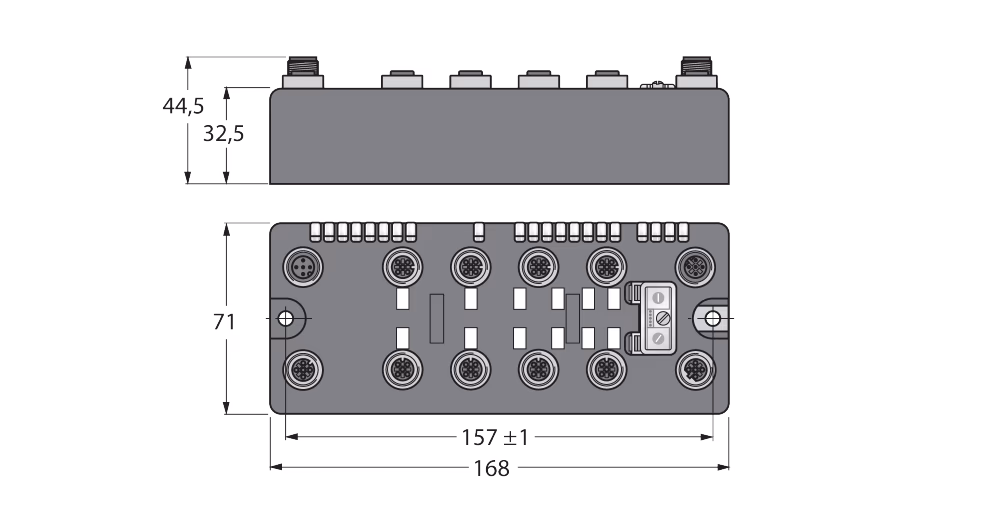

| Dimensions | 168 mm x 71 mm x 32.5 mm |
| Fieldbus connection technology | 2 × M12 |
| Fieldbus transmission rate | 10 kbps …1 Mbps |
| Network protocol | CANopen |
| Number of channels | 4/4 |
| Protection class | IP67 |
| Signal type | Analog input, Digital output |
