BL Compact Fieldbus Station for DeviceNet BLCDN-2M12S-2AI-TC
BL Compact Fieldbus Station for DeviceNet
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Connection technology signal | M12 |
| Device type | Compact station, I/O Module |

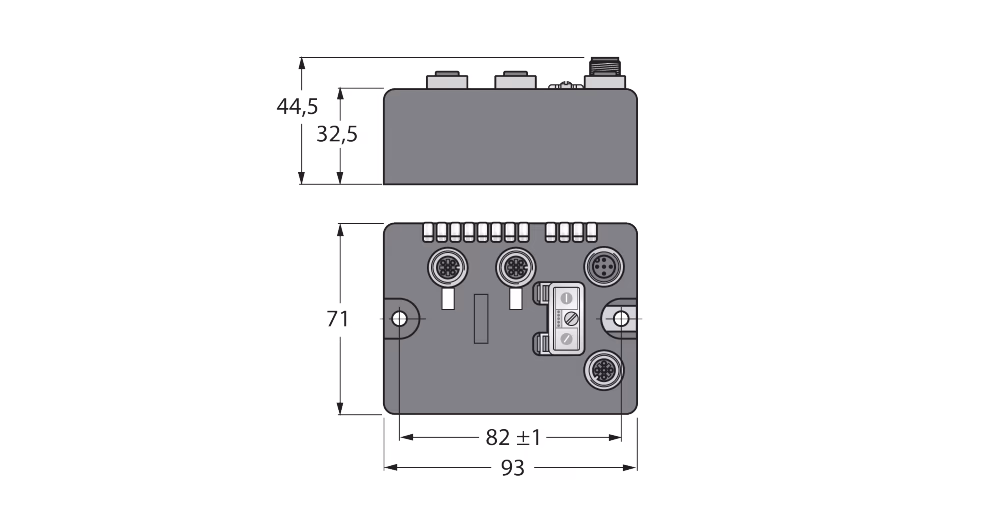

| Dimensions | 93 mm x 71 mm x 32.5 mm |
| Fieldbus connection technology | 2 × M12 |
| Fieldbus transmission rate | 125/250/500 kbps |
| Network protocol | DeviceNet |
| Number of channels | 2 |
| Protection class | IP67 |
| Signal type | Analog input, Temperature |
