BL compact Multiprotocol Station for Industrial Ethernet BLCEN-8M12LT-8DI-PD-8DI-PD
BL compact Multiprotocol Station for Industrial Ethernet
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Connection technology signal | M12 |
| Device type | Compact station, Field Logic Controller (ARGEE), I/O Module |

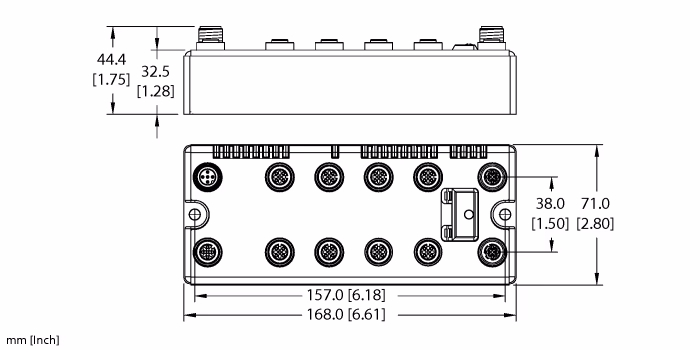

| Dimensions | 168 mm x 71 mm x 32.5 mm |
| Fieldbus connection technology | 2 × M12 |
| Fieldbus transmission rate | 10/100 Mbps |
| Network protocol | EtherNet/IP, Modbus TCP, PROFINET |
| Protection class | IP67 |
| Signal type | Digital input |
