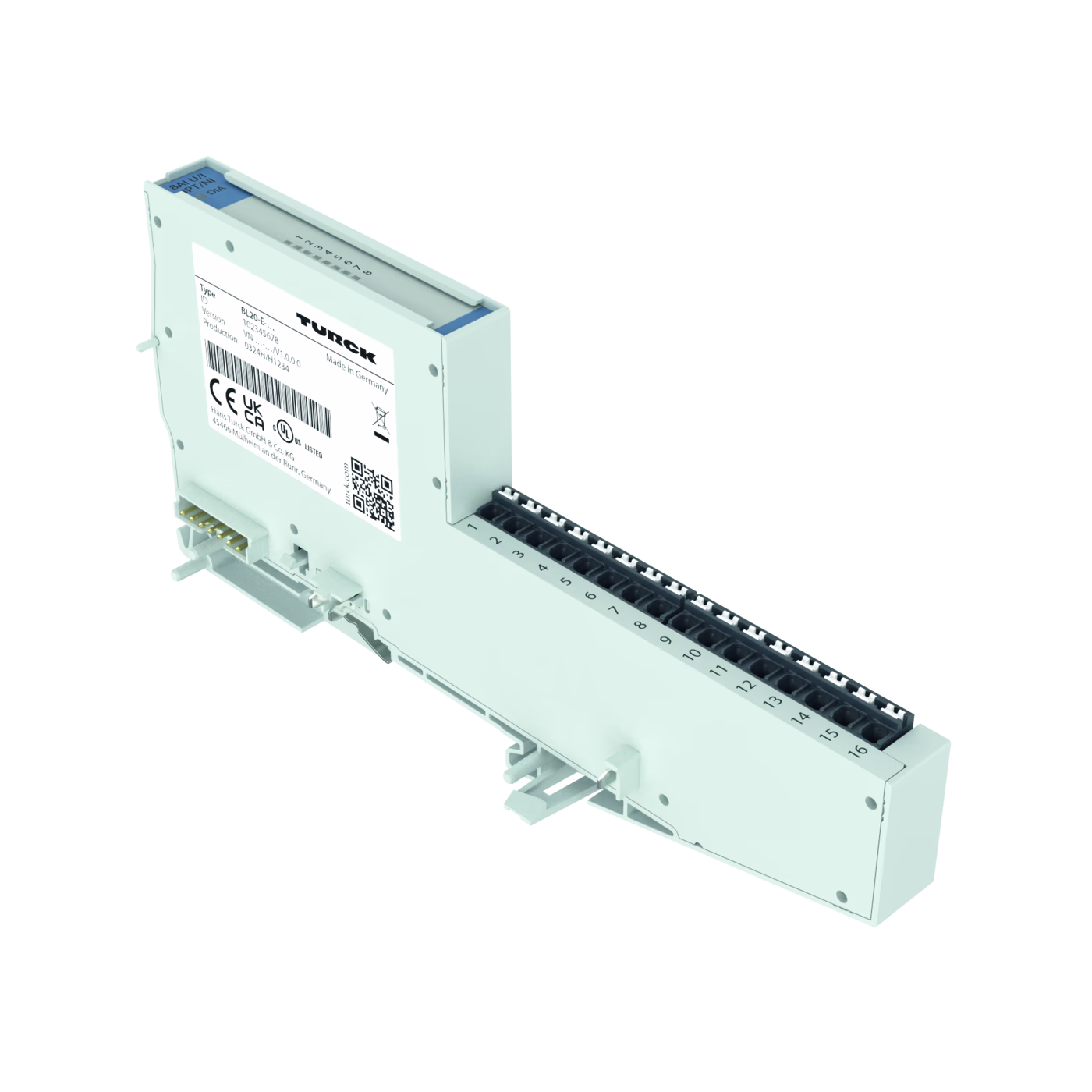

BL20 Economy Module BL20-E-8AI-U/I-4PT/NI
BL20 Economy Module
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | |
| Approvals | cULus |
| Connection technology signal | Cage clamp terminal |
| Device type | I/O Module |
| Dimensions | 160.8 mm x 13 mm x 74.6 mm |
| Input type | -10/0…10 VDC, 0…2000 Ω, 0…250 Ω, 0…400 Ω, 0…4000 Ω, 0…800 Ω, 0/4…20 mA, NI100, NI1000, Pt100, Pt1000, Pt200, Pt500 |
| Installation area | zone 2 |
| Number of channels | 8/4 |
| Operating voltage | DC |
| Protection class | IP20 |
| Signal type | Analog input, Temperature |
