Blanking Kits for Safety Light Curtains – Banner – S4BA-RFB

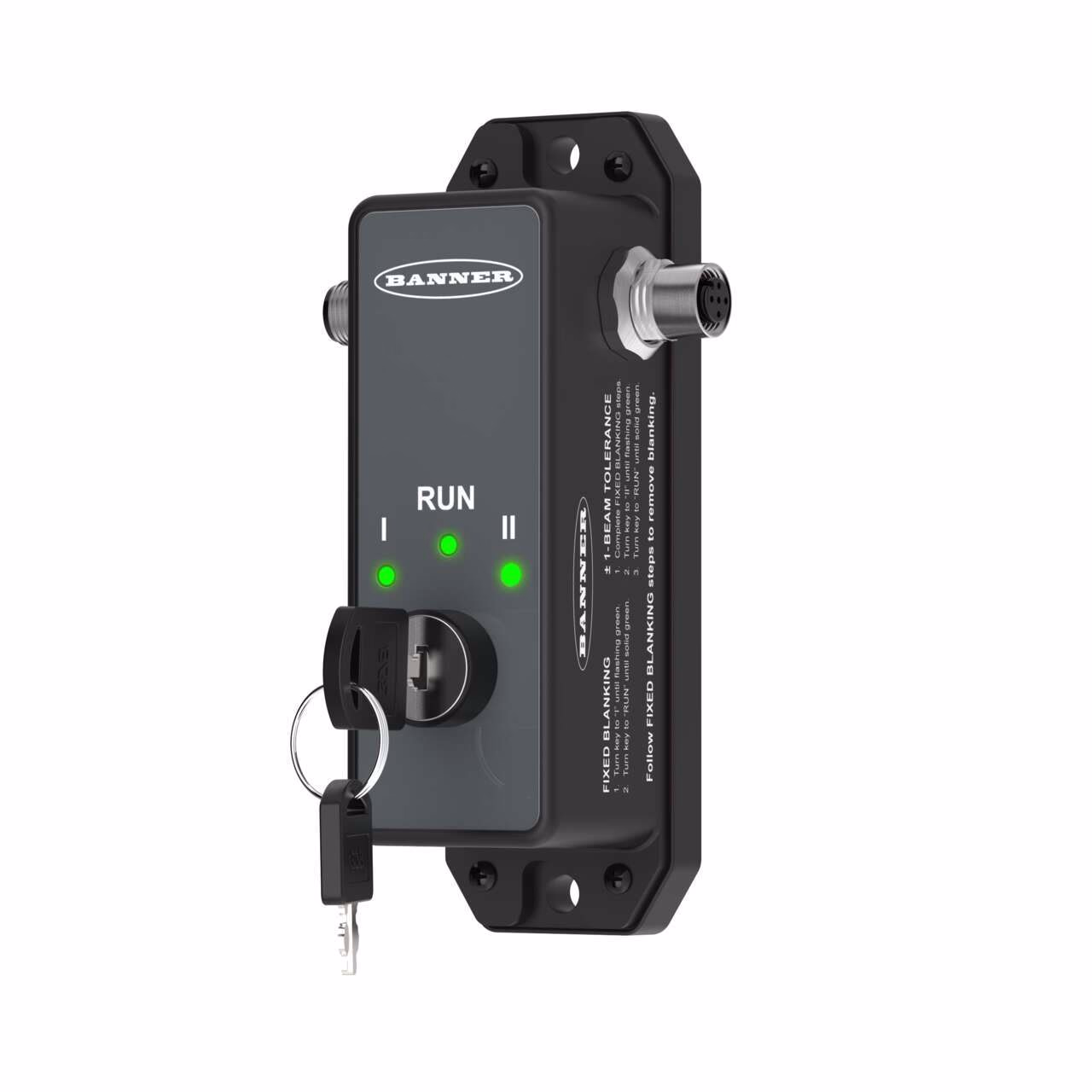

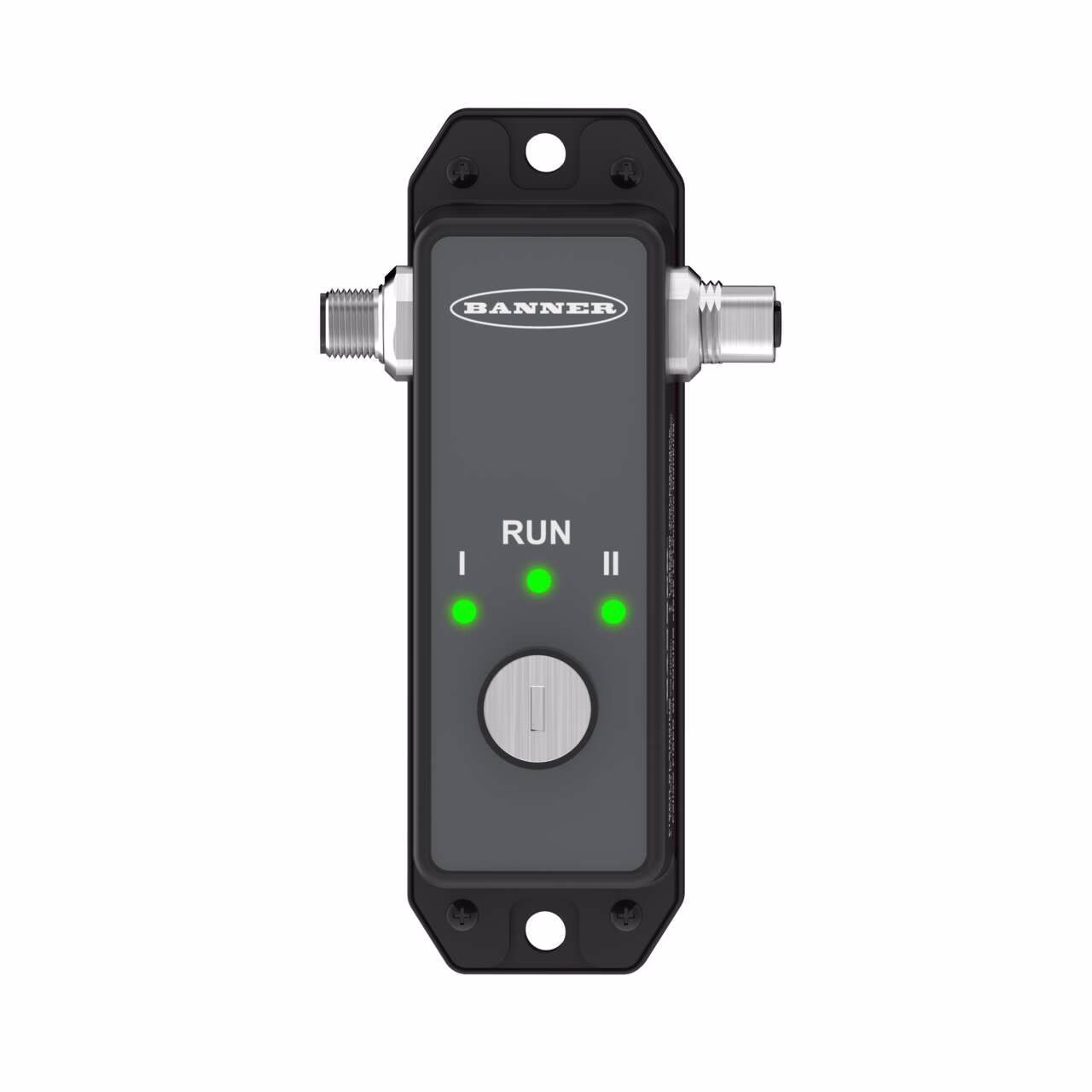

S4B Remote Fixed Blanking Configuration Tool
Includes Key Switch and Terminal Plug
5-pin M12
| Connection | Integral QD |
|---|---|
| QD Type/Cable Length | M12 |
| EPLAN Original Sent Date | 05/07/2025 |
| EPLAN Status | Published |
| Feature | Quick Disconnect |
| Indicator | LEDs |
| Item Status | RELEASED |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| Protection class shaft | IP65 |
| Min Op. Temperature (C) | -20.0 |
| Max Op. Temperature (C) | 55.0 |
| Adjustment | Key Switch |
| Dimensions WxDxL (mm) | 78.5 x 57.4 x 147.8 |
Description
S4B Remote Fixed Blanking Configuration Tool
Includes Key Switch and Terminal Plug
5-pin M12
