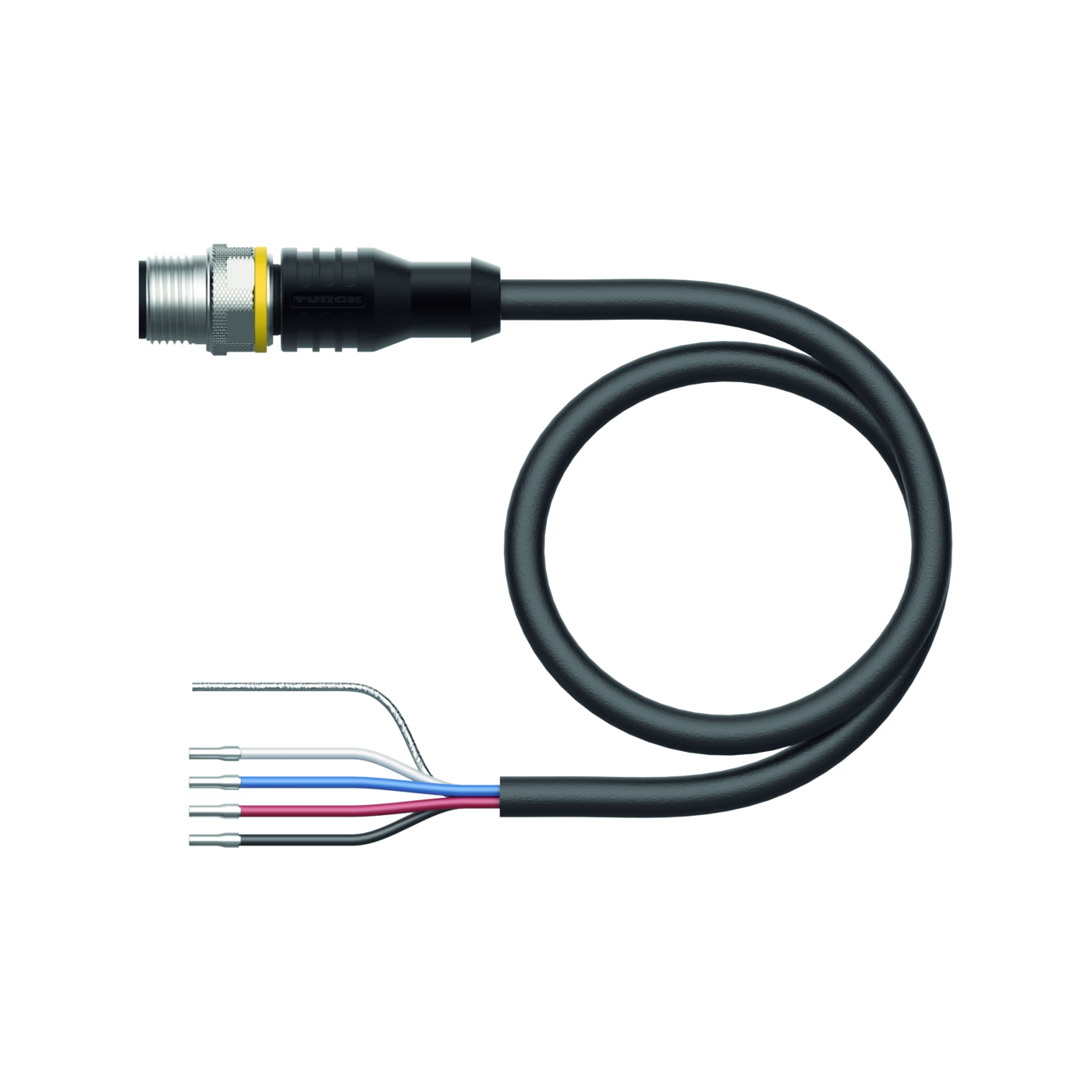

Bus Cable for CAN (DeviceNet, CANopen) RSC5701-1M
Bus Cable for CAN (DeviceNet, CANopen)
| Ambient temperature max. (°C) | 60 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Application | Data |
| Approvals | UL |
| Cable color | Anthracite |
| Cable length (m) | 1 |
| Cable quality | PUR |
| Connector A | A-coded, M12×1, Male, Straight |
| Coupling nut/screw material A | Brass |
| Current (A) | 4 |
| Design | Connection Cable |
| Network protocol | DeviceNet |
| Number of Conductors | 2 |
| Number of pins | 5 |
| Plug body | Plastic |
| Voltage output | 60 |
| Cable diameter (mm) | 6.7 |
| Core cross section mm? | 0.25 |
