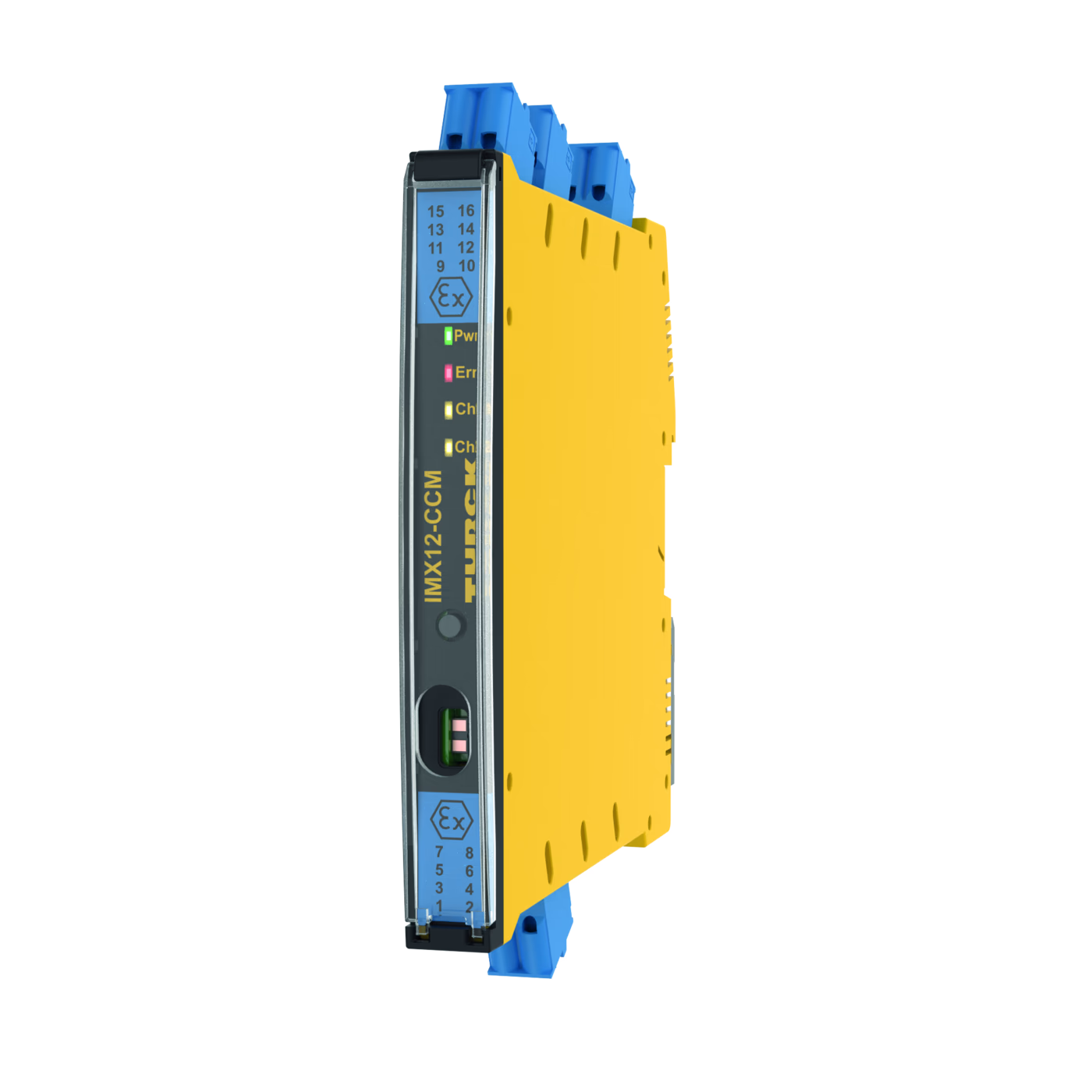

Cabinet Guard IMX12-CCM05-MTI-1I2T-HC/L/CC
Cabinet Guard
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Approvals | ATEX |

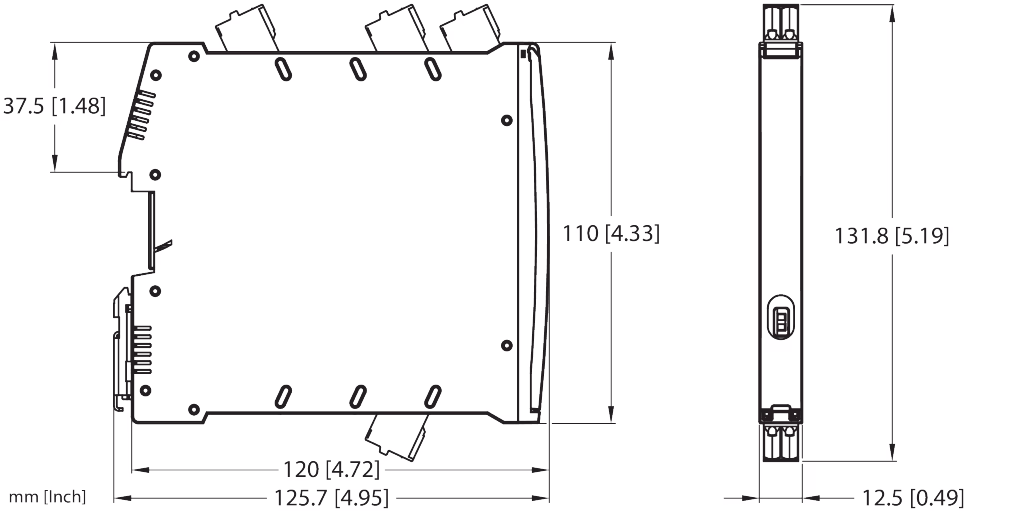

| Dimensions | 120 mm x 12.5 mm x 128 mm |
| Electrical output | 2-pin, Removable spring-type terminals |
| Ex version | yes |
| Housing material | Plastic |
| Housing quality | Polycarbonate/ABS |
| Nominal voltage | 24 VDC |
| Power supply | 24 VDC |
| Protection class | IP20 |
