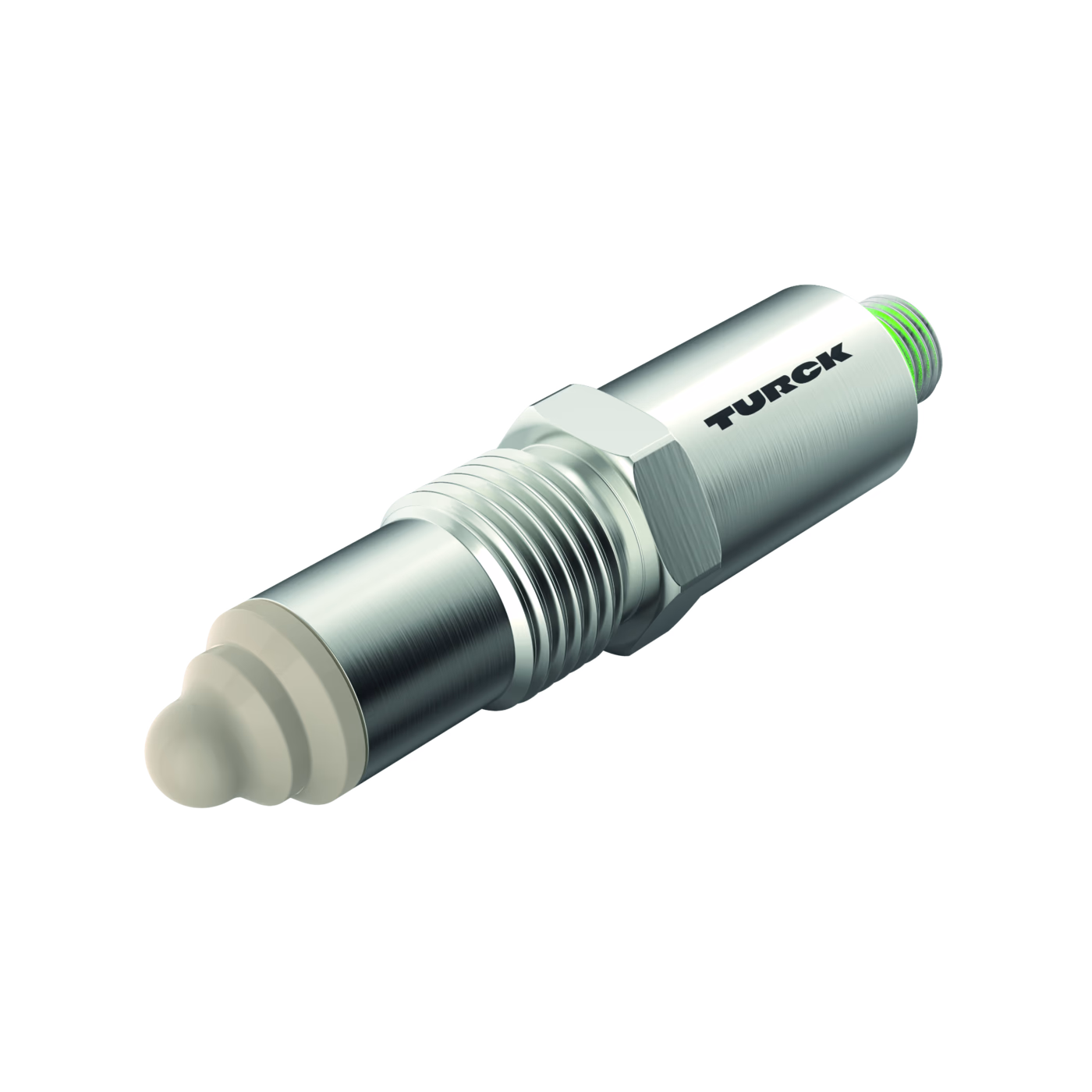

Capacitive Limit Level Sensor NCLS-30-UP6X-H1141
Capacitive Limit Level Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -10 |
| Approvals | CE, EHEDG |
| Communication protocol | IO-Link |
| Connector type | M12 × 1 |
| Design | Threaded barrel |
| Detection type | medium contact |
| Dimensions | 94.8 mm x 22 mm x 22 mm |
| Electrical connection | 1 × switching output, 2 × switching output, IO-Link, Switching output |
| Electrical output | Connector |
| Function | Level detection |
| Housing material | Stainless steel |
| Housing quality | 1.4404 (AISI 316L) |
| Materials (contact with media) | PEEK, Plastic |
| Measuring principle | Capacitive |
| Media temperature max. (°C) | 100 |
| Media temperature min. (°C) | |
| Medium | Bulk goods, liquids |
| Mounting conditions | Immersion sensor |
| Operating voltage | DC |
| Output function | PNP |
| Process connection | G 1/2” male thread, hygienic |
| Protection class | IP67 |
| Switching element function | NO/NC |
