Capacitive Sensor BC10-M30K-VP4X
Capacitive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Approvals | UL |
| Cable length (m) | 2 |
| Design | Threaded barrel |

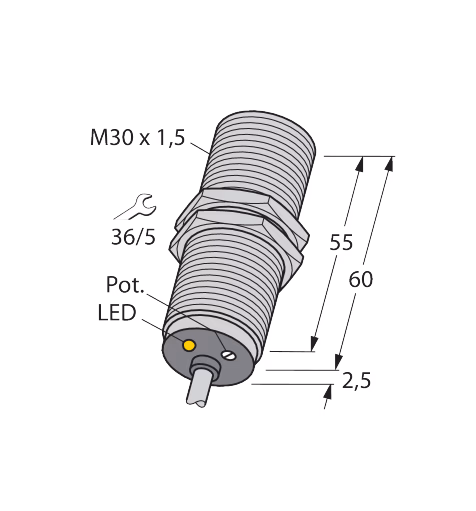

| Dimensions | 30 mm x 62.5 mm |
| Electrical output | Cable |
| Housing material | Metal |
| Housing quality | CuZn |
| Measuring principle | Capacitive |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PA12-GF30 |
| Rated switching distance (mm) | 10 |
| Switching element function | Complementary contact |
| Switching frequency (kHz) | 0.1 |
