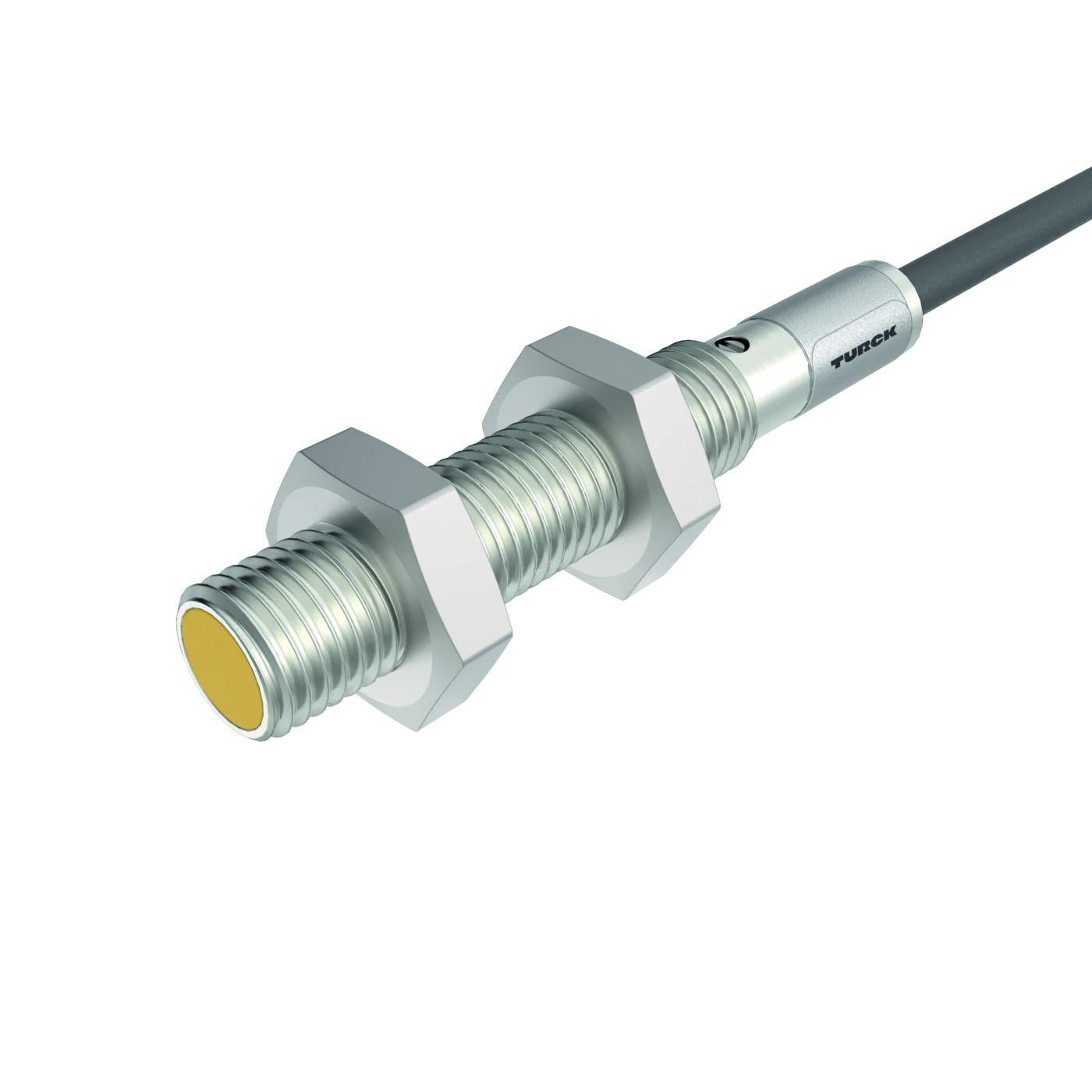

Capacitive Sensor BC2-EM08-UN8X
Capacitive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable length (m) | 2 |
| Construction size | M8 x 1 |
| Design | Threaded barrel |
| Detection type | medium contact |
| Dimensions | 8 mm x 51.5 mm |
| Electrical output | Cable |
| Function | Level detection |
| Housing material | Stainless steel |
| Measuring principle | Capacitive |
| Media temperature max. (°C) | 70 |
| Media temperature min. (°C) | -25 |
| Medium | Bulk goods, liquids |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | NPN |
| Protection class | IP67 |
| Quality active face | PBT |
| Rated switching distance (mm) | 2 |
| Switching element function | NO/NC (NO pre-set) |
| Switching frequency (kHz) | 0.1 |
