Capacitive Sensor BC20-CP40-VP4X2
Capacitive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Approvals | UL |

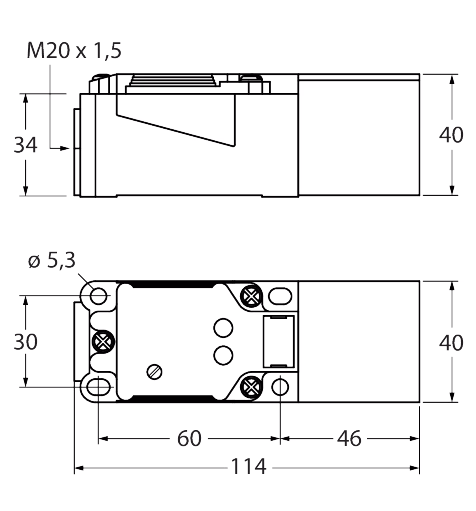

| Construction size | 114 x 40 x 40 mm |
| Design | Rectangular |
| Dimensions | 114 mm |
| Electrical output | Terminal chamber |
| Housing material | Plastic |
| Housing quality | PBT-GF30-V0 |
| Measuring principle | Capacitive |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PBT-GF30-V0 |
| Rated switching distance (mm) | 20 |
| Switching element function | Complementary contact |
| Switching frequency (kHz) | 0.1 |
