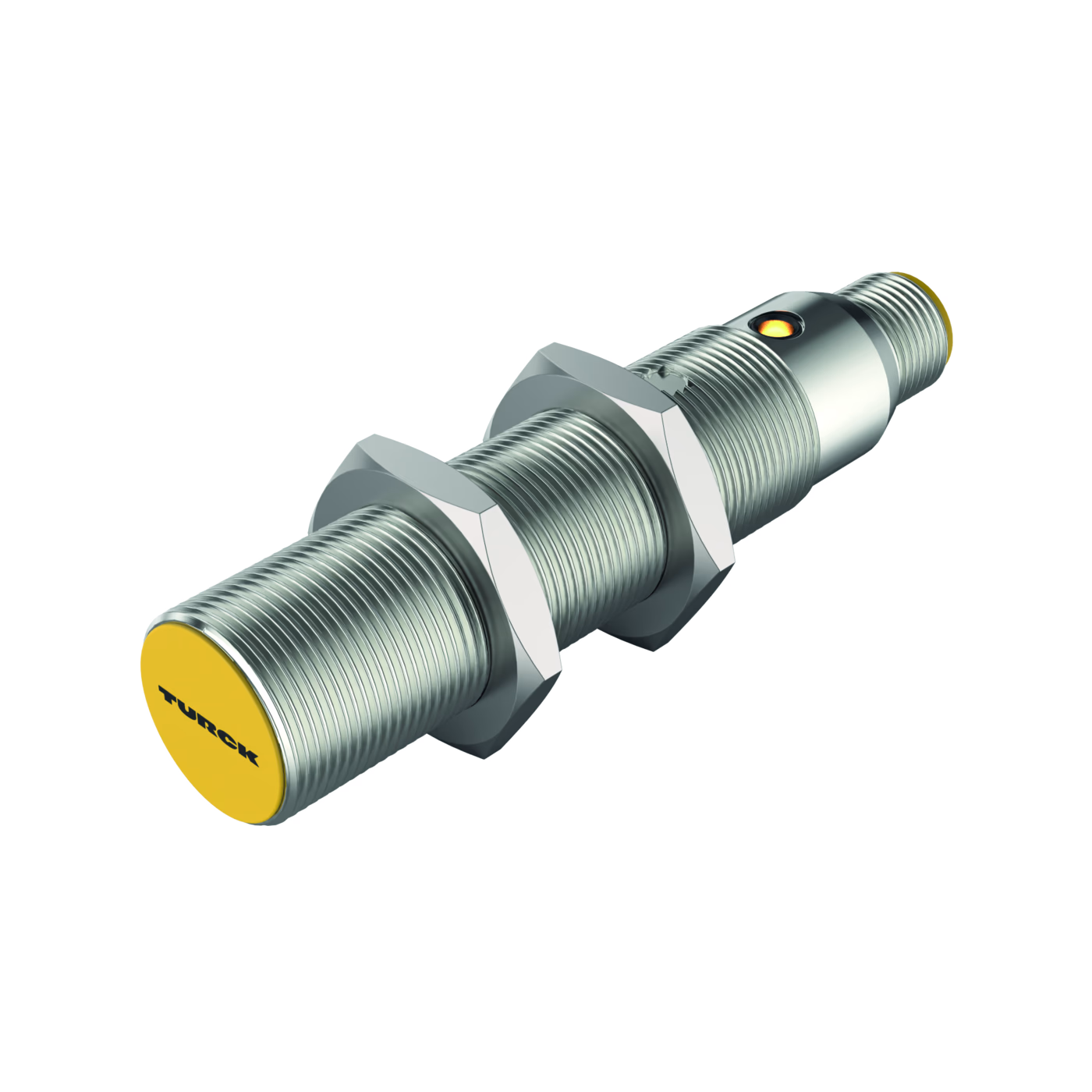

Capacitive Sensor BC5-M18-AP4X-H1141/S250
Capacitive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | UL |
| Connector type | M12 × 1 |
| Design | Threaded barrel |
| Dimensions | 18 mm x 83 mm |
| Electrical output | Connector |
| Housing material | Metal |
| Housing quality | CuZn |
| Measuring principle | Capacitive |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PBT-GF30-V0 |
| Rated switching distance (mm) | 5 |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.1 |
