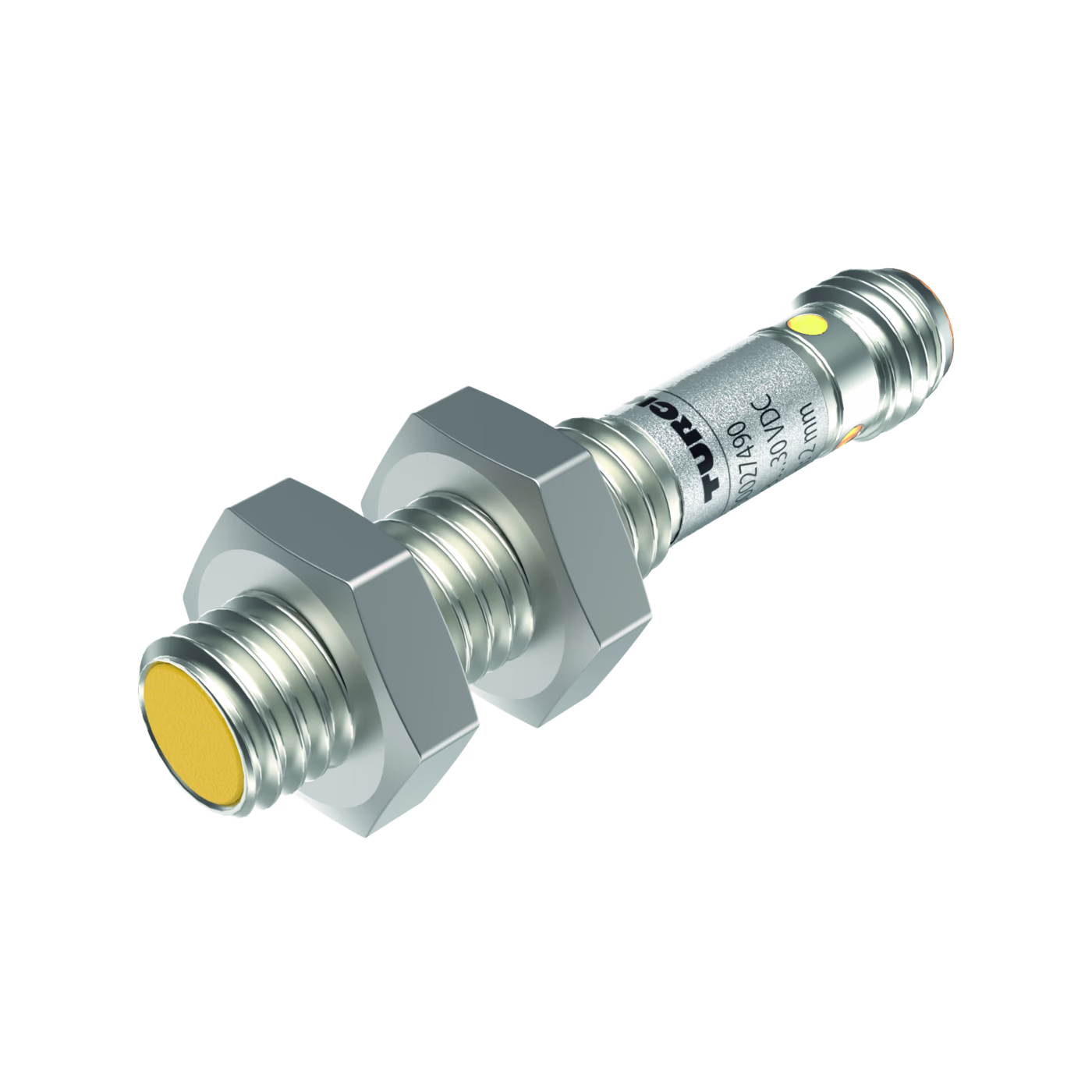

Capacitive Sensor BCT2-M08-IOL-V1131
Capacitive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Communication protocol | IO-Link |
| Connector type | M8 x 1 |
| Design | Threaded barrel |
| Dimensions | 8 mm x 44.8 mm |
| Electrical output | Connector |
| Function | Level detection |
| Housing material | Metal |
| Housing quality | Nickel-plated brass |
| Measuring principle | Capacitive |
| Media temperature max. (°C) | 70 |
| Media temperature min. (°C) | -25 |
| Medium | Bulk goods, liquids |
| Mounting conditions | Flush/Non-flush |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Quality active face | PBT |
| Rated switching distance (mm) | 2 |
| Switching element function | NO/NC programmable |
| Switching frequency (kHz) | 0.2 |
