Capacitive Sensor HC3-K28S-AP4X
Capacitive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable length (m) | 2 |

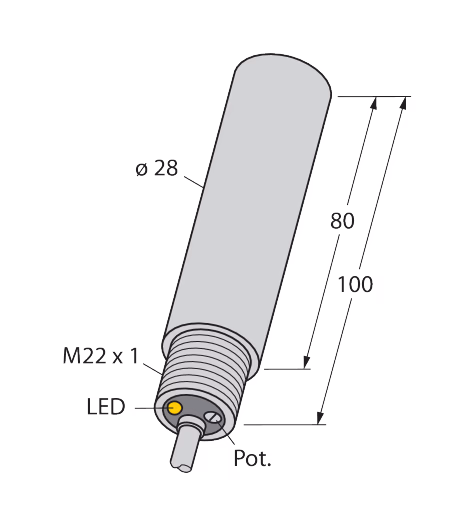

| Construction size | Ø 28 mm |
| Design | Smooth barrel |
| Dimensions | 28 mm |
| Electrical output | Cable |
| Housing material | Plastic |
| Housing quality | PBT-GF30 |
| Measuring principle | Capacitive |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PBT-GF30 |
| Rated switching distance (mm) | 3 |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.1 |
