CL50 Pro Series 50 mm Programmable Column Lights – Banner – CL50PKQ

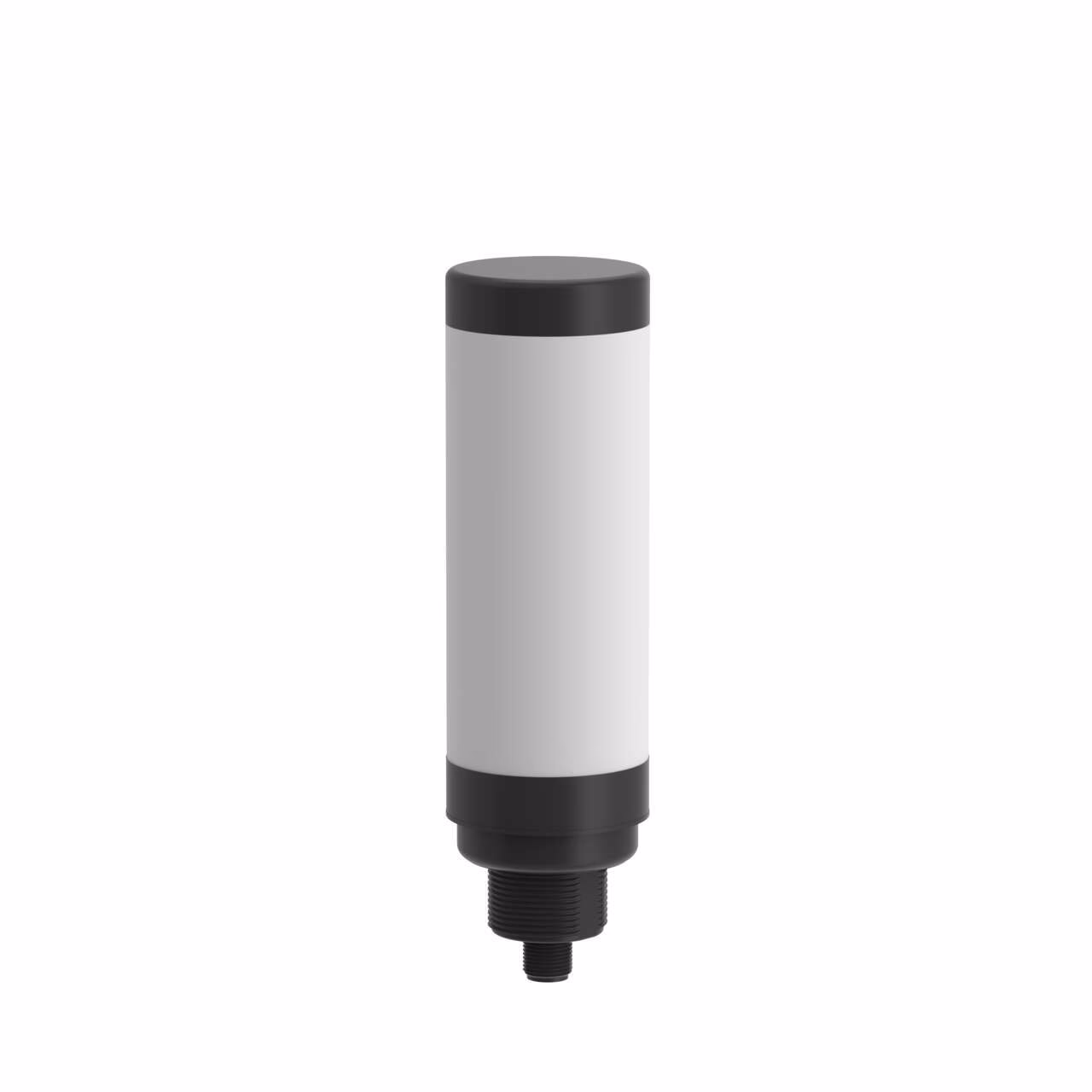

CL50 Pro Column Light with IO-Link; RGB Indicator
Voltage: 18-30 V dc; Environ. Rating: IP65
Colors: Multicolor
4-pin M12 Integral QD
| Color 5 - Wavelength/Color Temp/Coordinates | 5700K |
|---|---|
| Color Option 2 | Green |
| Color Option 5 | White |
| Color Technology | RGB IO-Link |
| Connection | Integral QD |
| Dimming Option | Programmable |
| Feature: Audible | No |
| Input Type | Communication Protocol |
| Lumens Color 5 | 79.4 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | IO-Link Controlled |
| Color 1 - Wavelength/Color Temp/Coordinates | 620 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 522 nm |
| Color 3 - Wavelength/Color Temp/Coordinates | 466 nm |
| Color 4 - Wavelength/Color Temp/Coordinates | 576 nm |
| Color Input Control | Communication Protocol |
| Color Option 1 | RGB |
| Color Option 3 | Blue |
| Color Option 4 | Yellow |
| Environmental Rating | IP65 |
| EPLAN Original Sent Date | 12/07/2024 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Tower |
| Indication | Yes |
| IO Link | Yes |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 29.1 |
| Lumens Color 2 | 52.2 |
| Lumens Color 3 | 11.6 |
| Lumens Color 4 | 75.9 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | Programmable |
| Number of Conductors | 4.0 |
| Operating voltage | 18-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 69.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP65 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | UL 4X |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 130.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 30.0 |
| Lumens Color 6 | 36.7 |
| Color Option 6 | Magenta |
| Color Option 7 | Cyan |
| Color 7 - Wavelength/Color Temp/Coordinates | 493 nm |
| Lumens Color 7 | 57.9 |
| Color 6 - Wavelength/Color Temp/Coordinates | 0.370, 0.185 |
Description
CL50 Pro Column Light with IO-Link; RGB Indicator
Voltage: 18-30 V dc; Environ. Rating: IP65
Colors: Multicolor
4-pin M12 Integral QD
