CODESYS 3 Programmable Gateway for the BL67 I/O System BL67-PG-EN-V3
CODESYS 3 Programmable Gateway for the BL67 I/O System
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Device type | Cloud Gateway, Programmable gateway |

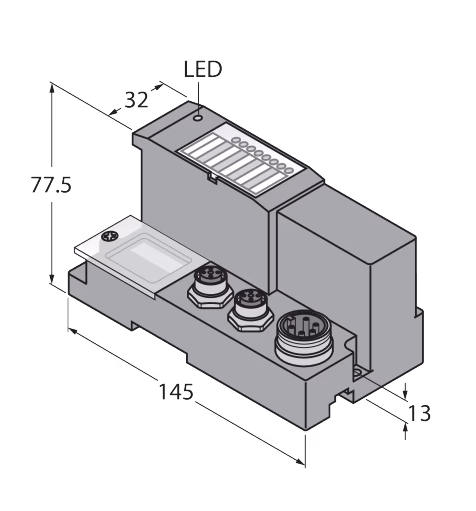

| Dimensions | 145 mm x 74 mm x 77.5 mm |
| Fieldbus connection technology | 2 × M12, 4-pin, D-coded |
| Fieldbus transmission rate | 10/100 Mbps, Auto Crossing, Auto Negotiation, Full/Half Duplex |
| Network protocol | EtherNet/IP, Modbus TCP, PROFINET |
| Operating voltage | DC |
| Protection class | IP67 |
| Voltage (V) | 5-pin, 7/8″ |
| Device function | Programmable gateway |
| Fieldbus master | Modbus TCP |
| Fieldbus slave | PROFINET |
| Programming | CODESYS V3 |
