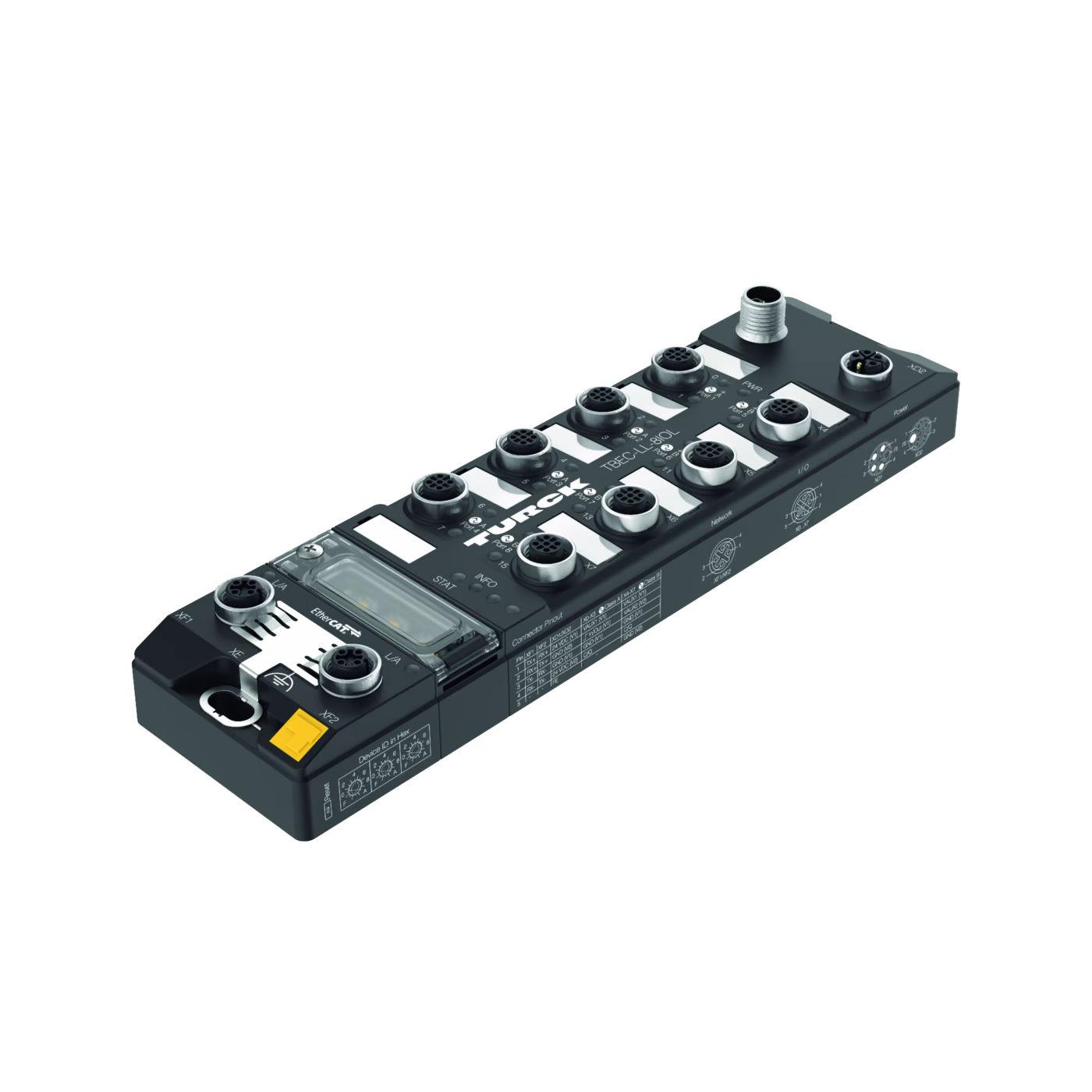

Compact I/O Module for EtherCAT TBEC-LL-8IOL
Compact I/O Module for EtherCAT
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX Zone 2/22, cULus |
| Connection technology signal | M12 |
| Device type | Compact station, I/O Module |
| Dimensions | 230.4 mm x 60.4 mm x 34.8 mm |
| Fieldbus connection technology | 2 × M12, 4-pin, D-coded |
| Installation area | zone 2, zone 22 |
| Network protocol | EtherCAT |
| Output voltage | 24 VDC from potential group |
| Protection class | IP65 |
| Signal type | Digital input, Digital input/output, Digital output, IO-Link |
| Voltage (V) | L-coded, M12 |
