Compact PLC in IP67 TBEN-L4-PLC-10
Compact PLC in IP67
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX Zone 2/22, cULus, IECEx |
| Connection technology Ethernet | 2 x M12, 4-pin, D-coded |
| Connection technology signal | M12 |
| Device function | Control |
| Device type | Cloud Gateway, Control |

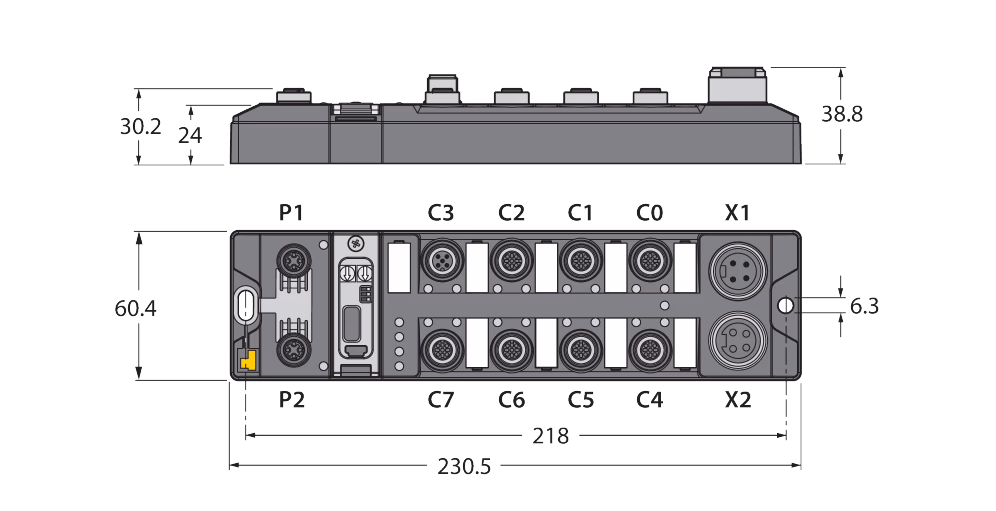

| Dimensions | 230.5 mm x 60.4 mm x 38.8 mm |
| Fieldbus master | PROFINET |
| Fieldbus slave | PROFINET |
| Installation area | zone 2, zone 22 |
| Network protocol | CANopen, EtherNet/IP, Modbus RTU, Modbus TCP, PROFINET, RS232, RS485, SAE J1939 |
| Number of channels | 16 |
| Output voltage | 24 VDC from V2 |
| Programming | CODESYS V3 |
| Protection class | IP65 |
| Signal type | Digital input, Digital input/output, Digital output |
| Transmission rate Ethernet | 10/100 Mbps |
| Voltage (V) | 4-pin, 7/8″ |
