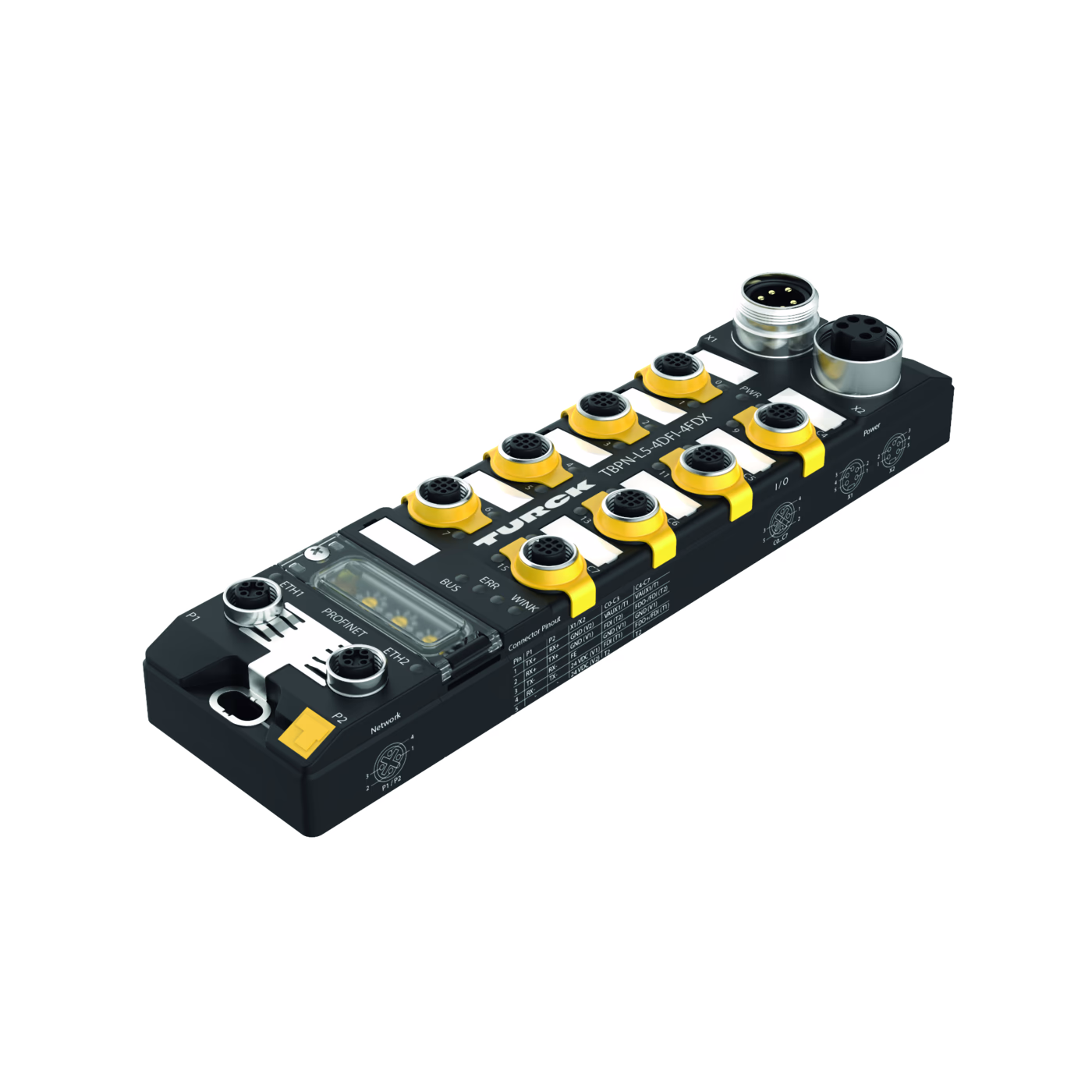

Compact PROFIsafe / PROFINET Block I/O Module TBPN-L5-4FDI-4FDX
Compact PROFIsafe / PROFINET Block I/O Module
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX Zone 2/22, CCC, cULus, IECEx |
| Category acc. to ISO 13849-1:2008 | 4 |
| Connection technology signal | M12 |
| Device type | Compact station, I/O Module |

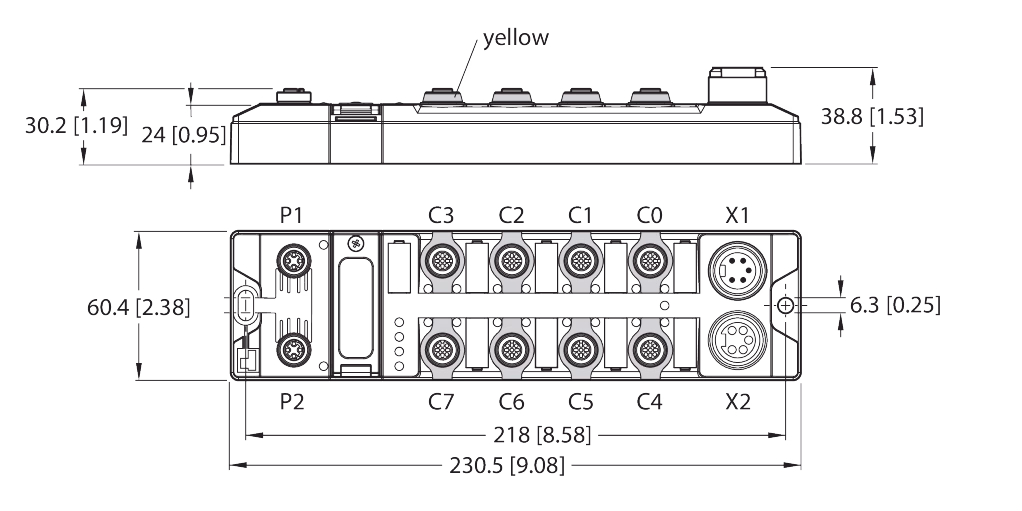

| Dimensions | 230.5 mm x 60.4 mm x 38.8 mm |
| Fieldbus connection technology | 2 × M12, 4-pin, D-coded |
| Fieldbus transmission rate | 100 Mbps |
| Installation area | zone 2, zone 22 |
| Network protocol | PROFIsafe via PROFINET |
| Number of channels | 16 |
| PL acc. to EN ISO 13849-1 | Level e |
| Protection class | IP65 |
| Signal type | Fail-safe inputs, Fail-safe inputs and outputs |
| SIL acc. to IEC 61508 | 3 |
| Voltage (V) | 5-pin, 7/8″ |
