Cordsets – Banner – DELSE-81D

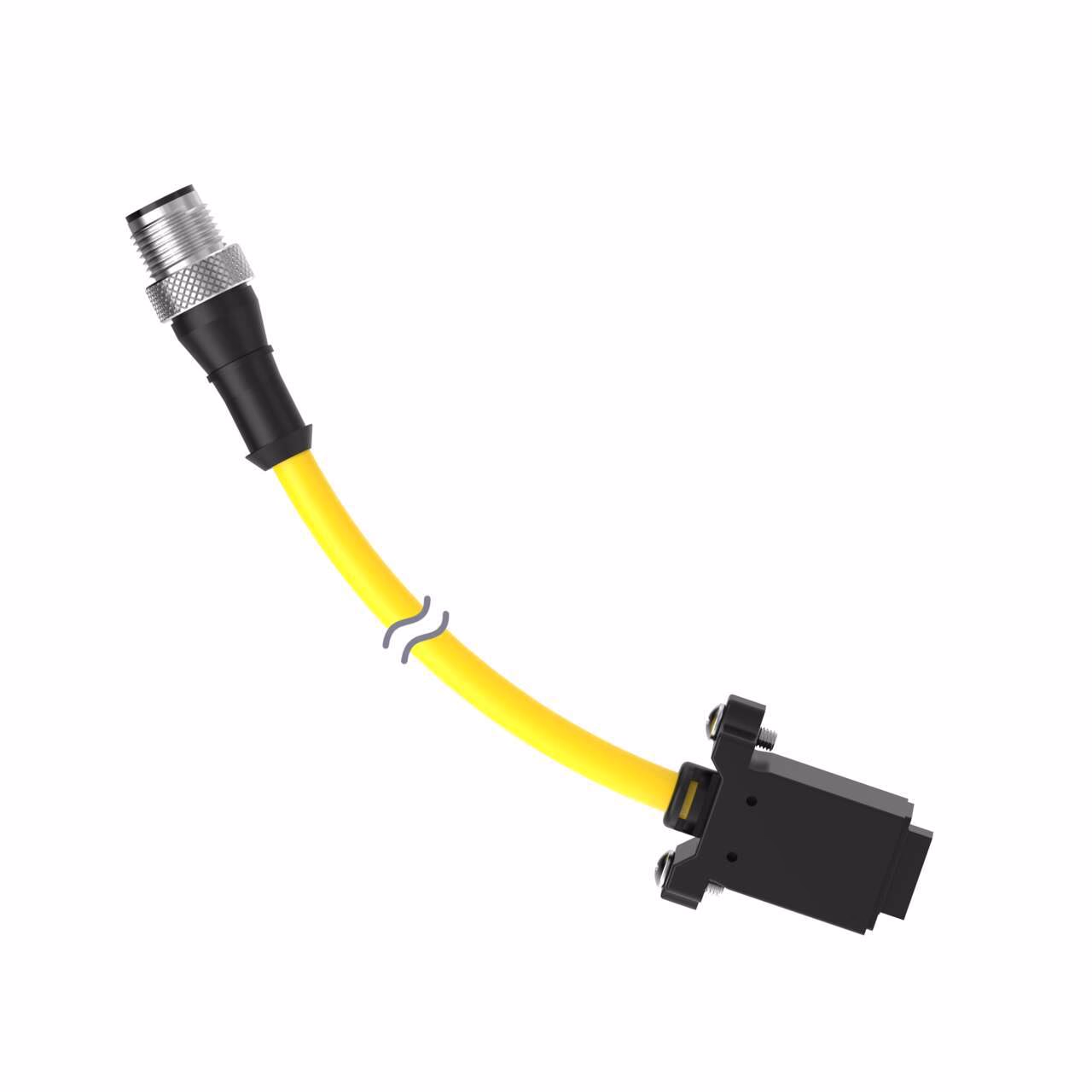

Cordset: Double-Ended LS-Custom to M12
12-pin Straight Female; 8-pin Straight Male
0.3 m 8×22 Yellow PVC Jacket
PVC Black; Nickel-Plated Brass Coupling Nuts
| Application | Safety Accessory |
|---|---|
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| Connector 1 Overmold Material and Color | PVC Black |
| Connector 2 Body Size | Standard |
| Connector 2 Coupling Nut Material | Nickel Plated Brass |
| Connector 2 Gender | Male |
| Connector 2 Key Code | A |
| Connector 2 Number of Contacts | 8.0 |
| Connector 2 Orientation | Straight |
| Connector 2 Overmold Material and Color | TPU Black |
| Connector 2 Thread/Snap | Threaded |
| Cordset Length (m) | 0.3 |
| Coupling Nut Material | Nickel Plated Brass |
| Number of Conductors | 8.0 |
| Outside Cable Diameter (mm) | 6.00 |
| Wire AWG | 22 |
| Connector 1 Orientation | Straight |
| Connector 1 Type | LS-Custom |
| Connector 2 Type | M12 |
| Connector B | Female |
| Current (A) | 2 |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V ac/dc |
| Overmold Material and Color | PVC Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 12.0 |
| Minimum Temp. (Celsius) | -40.0 |
Description
Cordset: Double-Ended LS-Custom to M12
12-pin Straight Female; 8-pin Straight Male
0.3 m 8×22 Yellow PVC Jacket
PVC Black; Nickel-Plated Brass Coupling Nuts
