Cordsets – Banner – DES4-M51-RTP

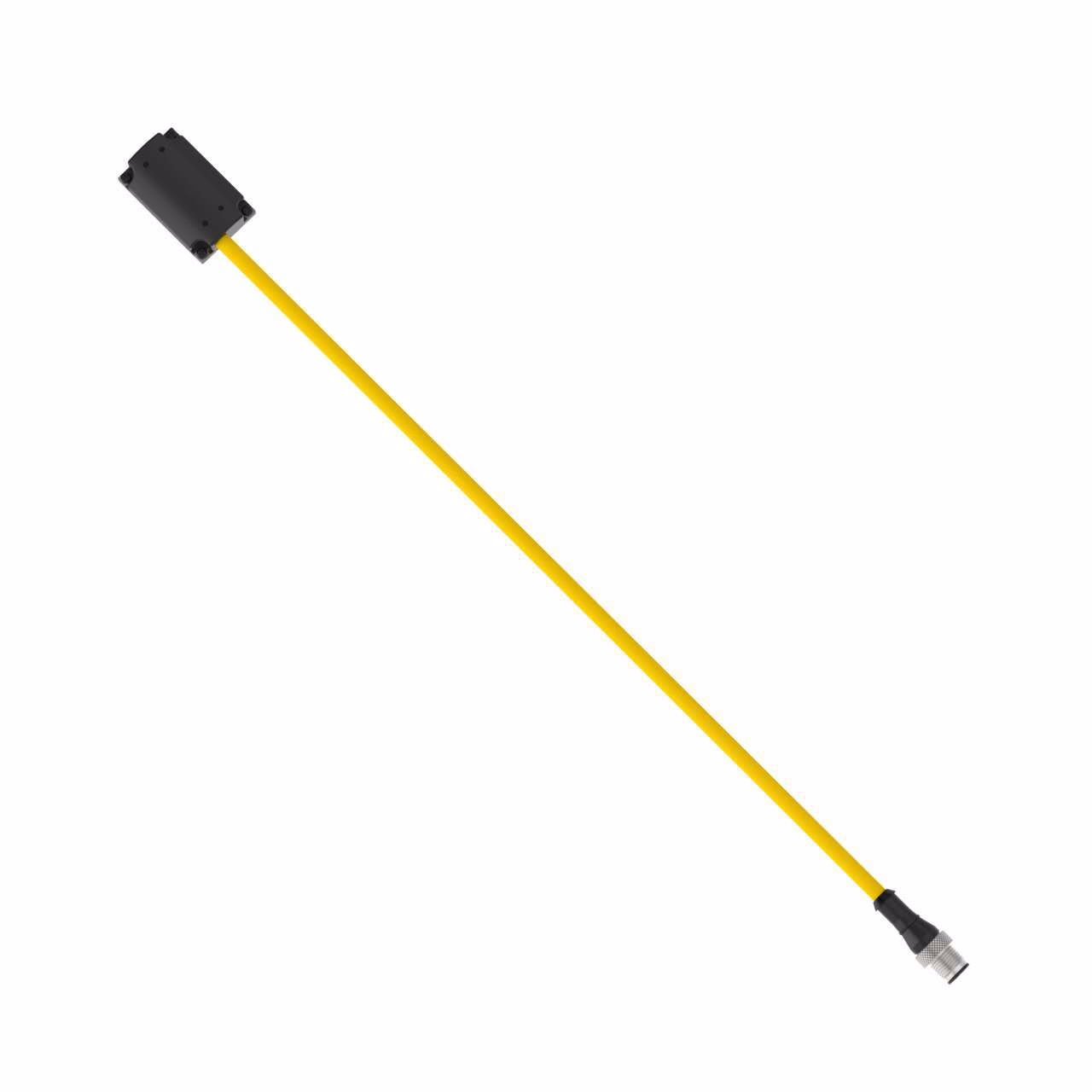

S4B CASCADE Custom to M12 Double-Ended Terminator
5-pin Straight Male Connector
0.4 m (1.31 ft)Yellow PVC Jacket
Nickel-Plated Brass Coupling Nut
FID2 or Higher
| Cable Jacket Color | Yellow |
|---|---|
| Cable Jacket Material | PVC |
| Connector 2 Gender | Male |
| Connector 2 Key Code | A |
| Connector 2 Number of Contacts | 5.0 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 0.4 |
| Outside Cable Diameter (mm) | 5.46 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Orientation | Straight |
| Connector 1 Type | S4B-Custom |
| Connector 2 Type | M12 |
| Connector B | Female |
| Current (A) | 2.0 |
| EPLAN Original Sent Date | 05/07/2024 |
| EPLAN Status | Published |
| Feature | Cascade |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 60 V ac / 75 V dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP65 |
| Maximum Temp. (Celsius) | 70.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | No Trunk |
Description
S4B CASCADE Custom to M12 Double-Ended Terminator
5-pin Straight Male Connector
0.4 m (1.31 ft)Yellow PVC Jacket
Nickel-Plated Brass Coupling Nut
FID2 or Higher
