Detection Arrays and Wide Beam Sensors – Banner – B25-K6LP-Q5

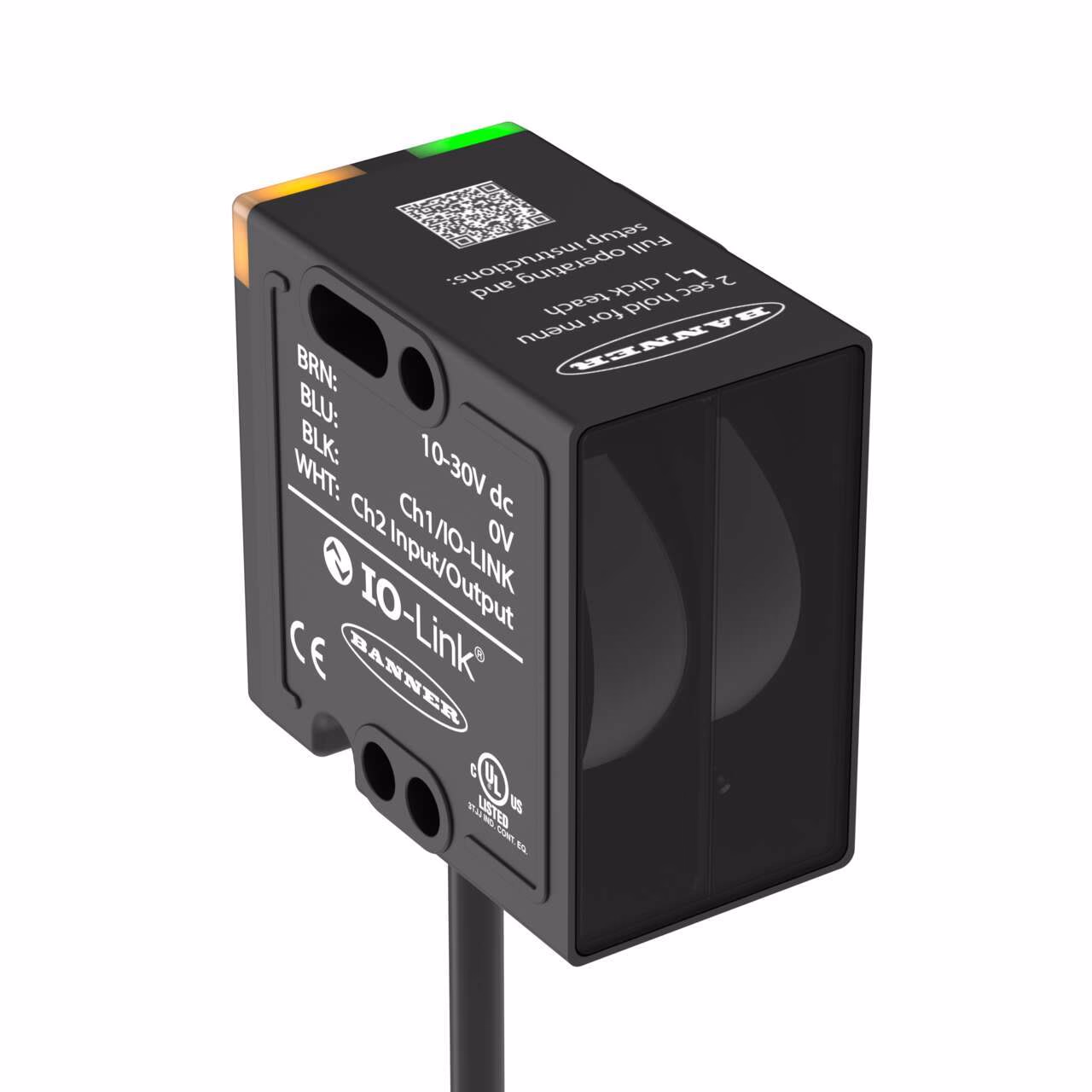

B25 Wide Beam Sensor
Range: 2 m; Input: 10-30 V dc; 25 mm Beam Width
Output: Push/Pull with IO-Link, PNP
150 mm (6 in) M12 Pigtail QD
| Connection | Pigtail QD |
|---|---|
| Outputs | 1 Configurable NPN/PNP, 1 PNP |
| Sensing Mode (General) | Retroreflective |
| Adjustments | Teach Button |
| Connection technology signal | Wide Beam Retroreflective (Polarized) |
| DeviceNet | No |
| EPLAN Original Sent Date | 03/26/2025 |
| EPLAN Status | Published |
| Feature | Clear Object Detection, Quick Disconnect |
| Homerun Exit Location | .5 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| IO Link | Yes |
| Item Status | RELEASED |
| Lens Material | COC |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | PC/ABS |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 630 |
| Slot width (mm) | 0.15 |
| Special feature | Remote Teach |
| Min Op. Temperature (C) | -30.0 |
| Max Sensing Distance (mm) | 2000.0 |
| Max Op. Temp. (C) | 60 |
Description
B25 Wide Beam Sensor
Range: 2 m; Input: 10-30 V dc; 25 mm Beam Width
Output: Push/Pull with IO-Link, PNP
150 mm (6 in) M12 Pigtail QD
