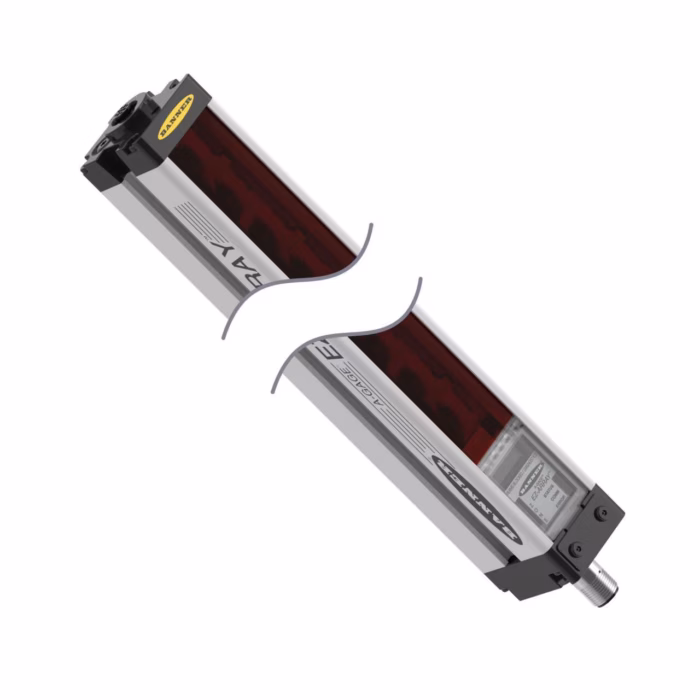

Detection Arrays and Wide Beam Sensors – Banner – MBE2416Q
2 Piece Mini-Array Basic Series: Emitter
3/4 in Optical Spacing, Sensing Length: 600 mm
Range: 2 m; Input Voltage 16-30 V dc
8-pin M12 Integral QD
| Array Length (mm) | 600.0 |
|---|---|
| Beam Spacing | 19 mm |
| Emitter/Receiver Range (m) | 2 |
| Housing Length (mm) | 685.0 |
| Low Contrast | No |
| Max Relative Humidity | 95% |
| Min Temp (C) | -40.0 |
| Minimum Object Sensitivity (mm) | 25.4-38.1 |
| Short Range | No |
| Connection technology signal | Emitter |
| Device type | Two-Piece |
| DeviceNet | No |
| IO Link | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Number of beams | 32.0 |
| Operating voltage | 16-30 V dc |
| Port | M12 |
| Receptacle housing material B | Aluminum |
| RS-232 | No |
| RS-485 | No |
Description
2 Piece Mini-Array Basic Series: Emitter
3/4 in Optical Spacing, Sensing Length: 600 mm
Range: 2 m; Input Voltage 16-30 V dc
8-pin M12 Integral QD
