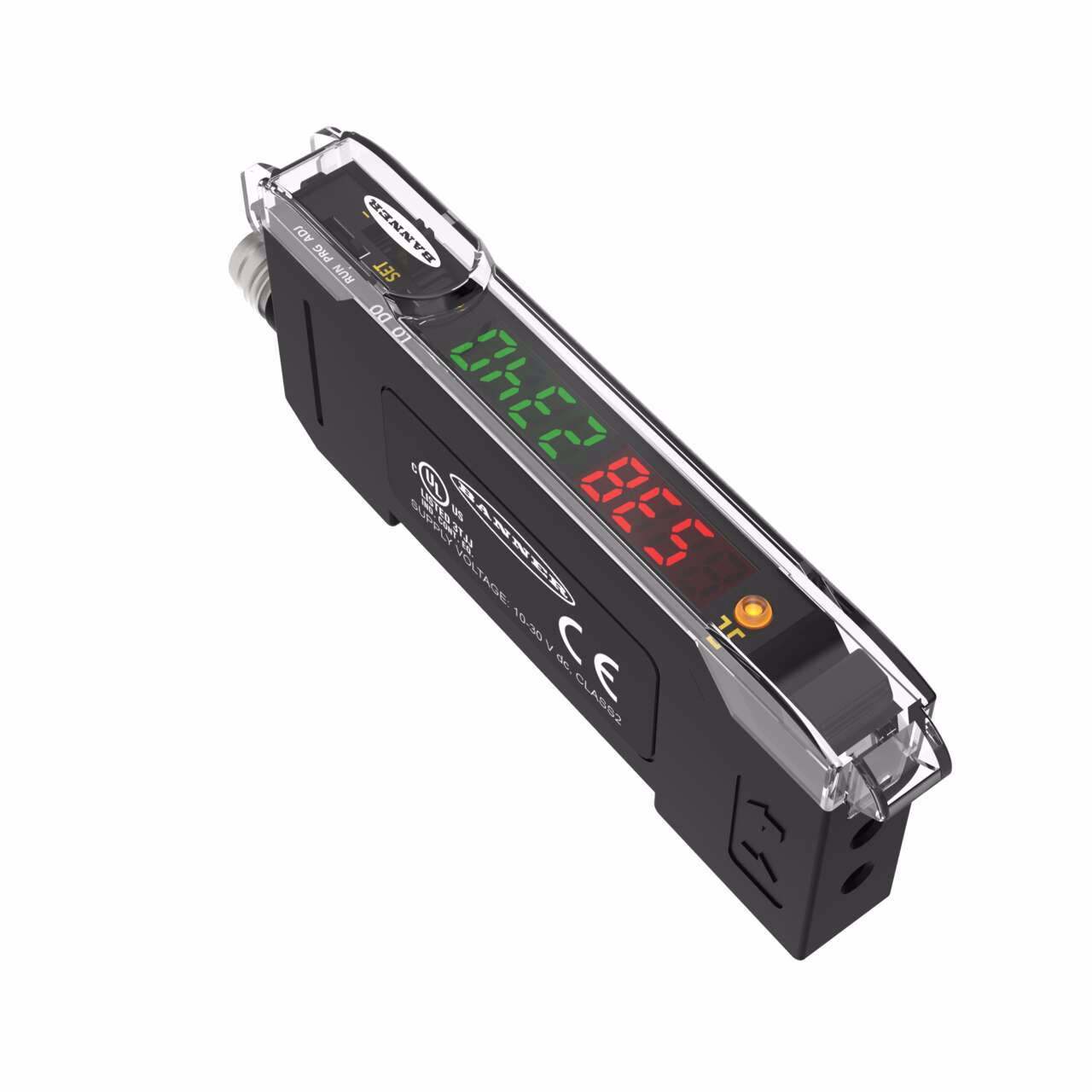

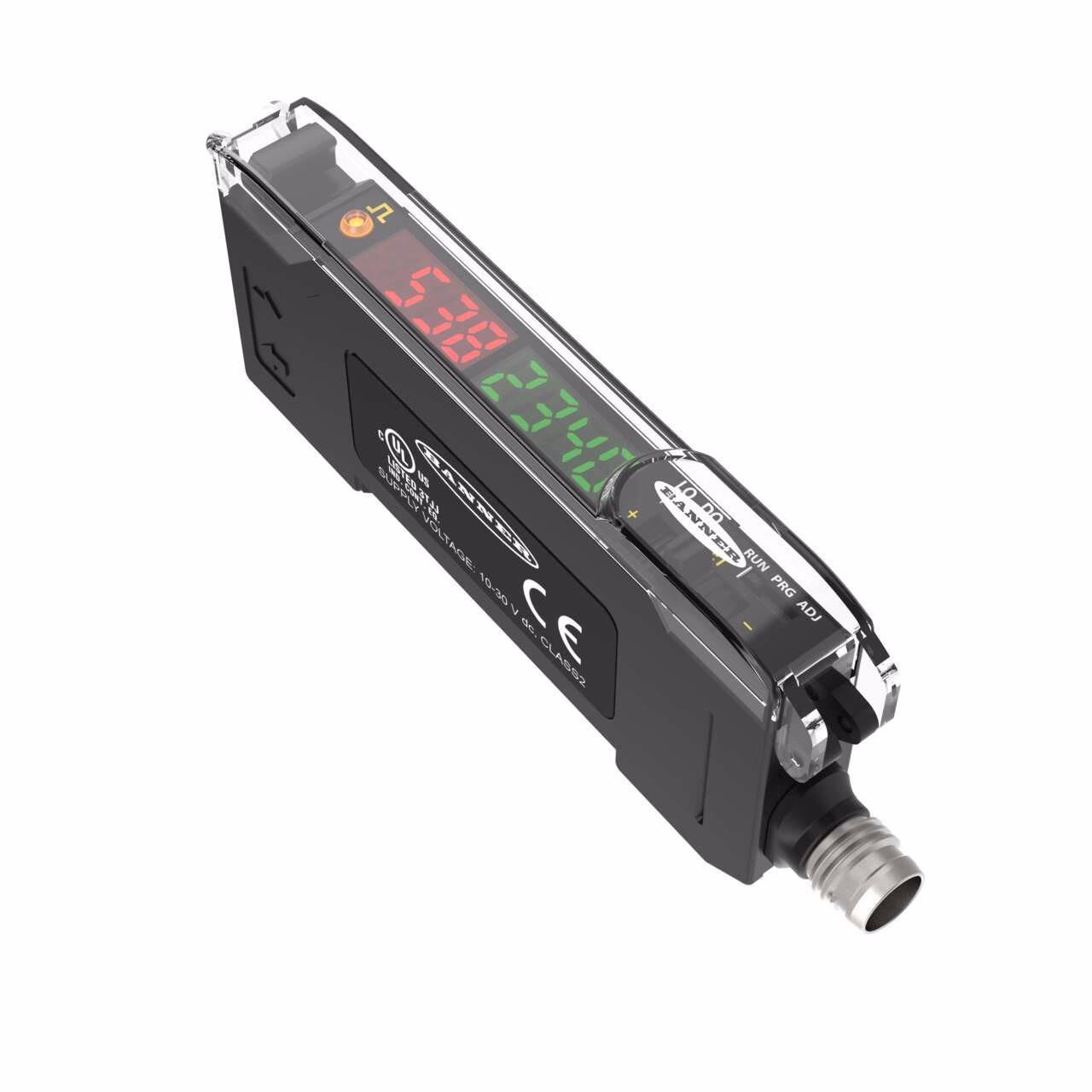

DF-G1 Series General Purpose Fiber Optic Amplifier – Banner – DF-G1-NF-Q7
DF-G1 Dual Display Fiber Amplifier
With Fluorescent Filter
Range: Depends on Fiber; Input 10-30 V dc
Output: 1 NPN
4-pin M8 Integral QD
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
|---|---|
| Color LED - Amplifiers | Red |
| Connection | Integral QD |
| Crosstalk Avoidance | Yes |
| Feature: Audible | No |
| Fiber Type | Plastic and Glass |
| Indicator Display Type | Dual Digital Displays |
| Max Op. Temperature [?C] | 55.0 |
| Min Op. Temperature [?C] | -10.0 |
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 10-30 V dc |
| Adjustments | Teach Button |
| Feature | Quick Disconnect, Timing (Hold/Delay) |
| Housing material | Thermoplastic |
| Housing Style | DIN Rail |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| IO Link | No |
| Item Status | RELEASED |
| Number of pins | 4 |
| Port | M8 |
| Power Good Output | DC |
| Protection class shaft | IP50 |
| Receptacle housing material B | Thermoplastic |
| Setting option | NPN |
| Special feature | Remote Teach |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 500 |
| Repeatability (µs) | 66 to 100 |
| Max op. relative humidity (%).1 | 90% @ 60°C |
| Minimum Response Time (ms) | 0.2 |
Description
DF-G1 Dual Display Fiber Amplifier
With Fluorescent Filter
Range: Depends on Fiber; Input 10-30 V dc
Output: 1 NPN
4-pin M8 Integral QD
