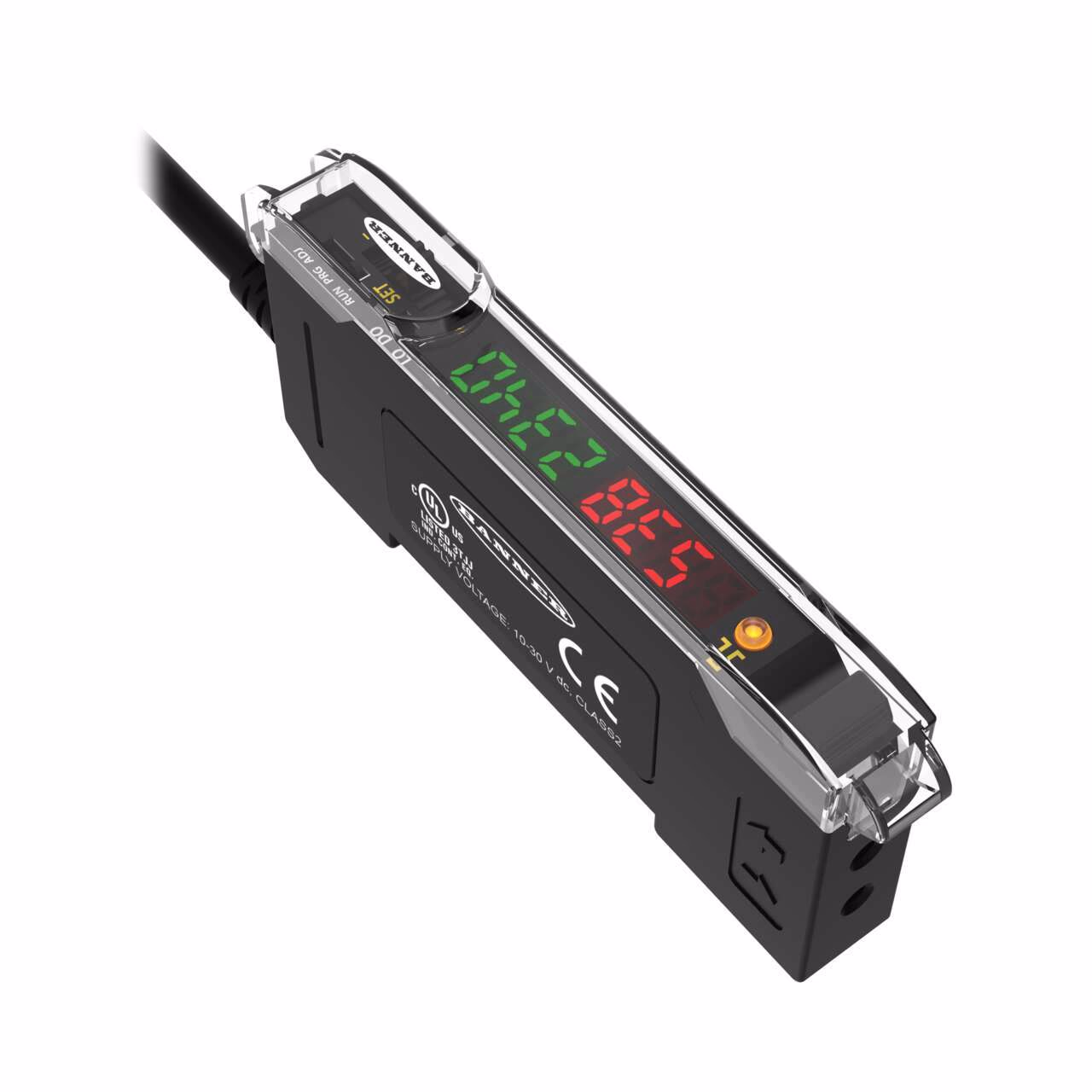

DF-G3 Series Long Range Fiber Optic Amplifier – Banner – DF-G3LIR-KD-Q5
DF-G3 Long IR Beam Water Detector Dual Display Fiber Amplifier
Range: Depends on Fiber; Input 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: PNP only
150 mm (6 in) 4-pin M12 PVC Pigtail QD
| Accepts Fiber Termination Type | T5 Termination |
|---|---|
| Color LED - Amplifiers | Long Infrared (Water Detection) |
| Connection | Pigtail QD |
| Crosstalk Avoidance | Yes |
| Feature: Audible | No |
| Fiber Type | Glass Only |
| Indicator Display Type | Dual Digital Displays |
| Output Type (Specific) | IO-Link and Dual Discrete |
| Power Supply/Supply Voltage | 10-30 V dc |
| Adjustments | Teach Button |
| EPLAN Original Sent Date | 03/29/2023 |
| EPLAN Status | Published |
| Feature | Health/Marginal Signal Output, Quick Disconnect, Timing (Hold/Delay) |
| Housing Style | DIN Rail |
| Input/Output | Discrete & Serial |
| Intrinsically Safe | No |
| IO Link | No |
| Item Status | RELEASED |
| Number of pins | 4 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP50 |
| Receptacle housing material B | Thermoplastic |
| Min Op. Temperature (C) | -10 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 0.15 |
| Delay at Power-up (ms) | 500 |
| Max Op. Temperature (C) | 55 |
| Max op. relative humidity (%).1 | 90% @ 60°C |
| Minimum Response Time (ms) | 0.5 |
| Setting option | NPN |
| Special feature | Remote Teach |
Description
DF-G3 Long IR Beam Water Detector Dual Display Fiber Amplifier
Range: Depends on Fiber; Input 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: PNP only
150 mm (6 in) 4-pin M12 PVC Pigtail QD
