Double-Ended – Banner – BC-M12F4A-M12M4A-U22-10-CB60

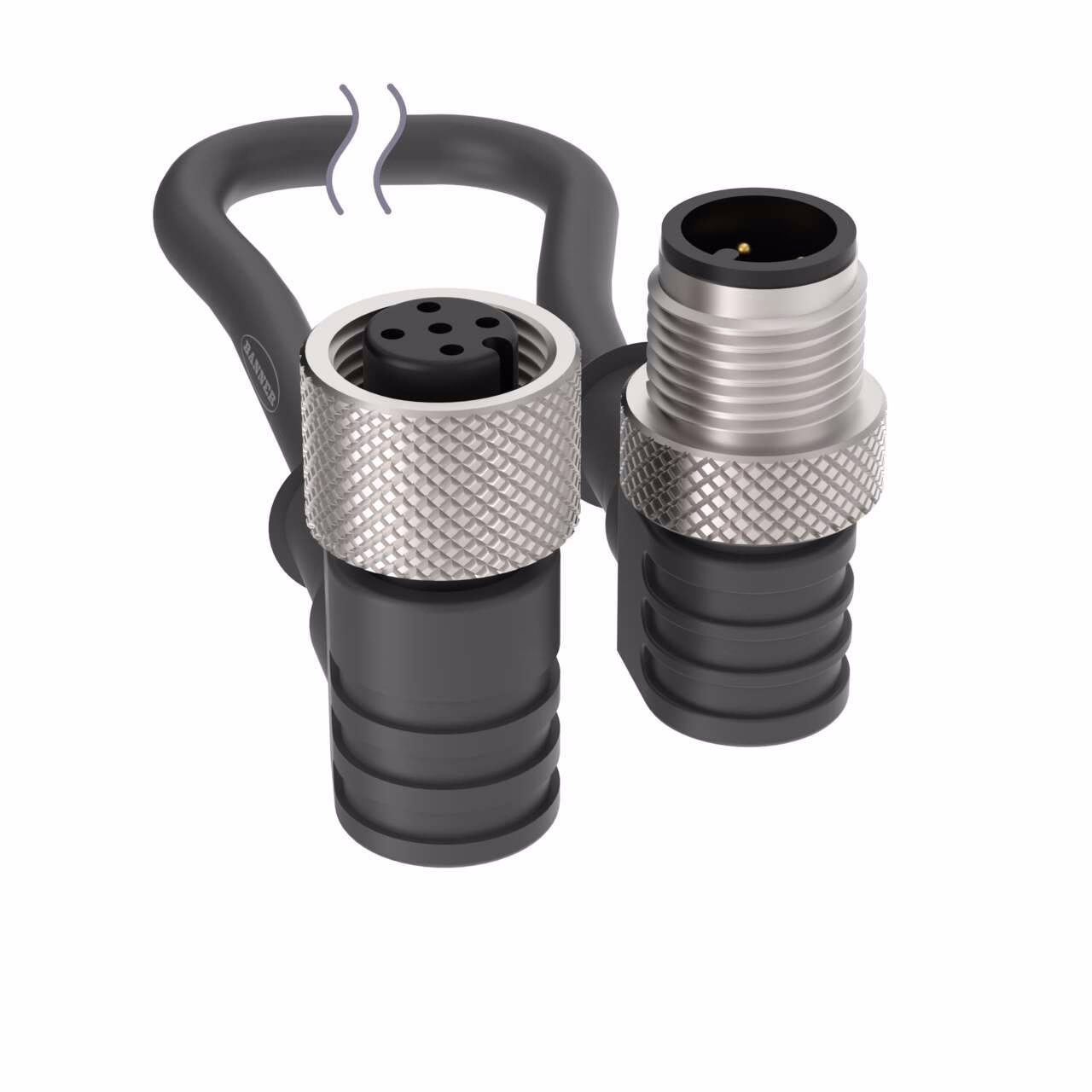

Cordset: Double-Ended M12
4-pin Right-Angle Female; 4-pin Right-Angle Male Connectors
10 m 4×22 Black TPU Jacket Cold Bend -60C
Nickel-Plated Brass Coupling Nuts
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | TPU |
| Connector 2 Gender | Male |
| Connector 2 Key Code | A |
| Connector 2 Number of Contacts | 4.0 |
| Connector 2 Orientation | Right Angle |
| Cordset Length (m) | 10.0 |
| Cordset Special Features | -60C Cold Bend |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 6 |
| Shield/No Shield | No Shield |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Right Angle |
| Connector 1 Type | M12 |
| Connector 2 Type | M12 |
| Connector B | Female |
| Current (A) | 4 |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP66, IP67, IP68 |
| Maximum Temp. (Celsius) | 105.0 |
| Number of pins.1 | 4.0 |
| Minimum Temp. (Celsius) | -60.0 |
Description
Cordset: Double-Ended M12
4-pin Right-Angle Female; 4-pin Right-Angle Male Connectors
10 m 4×22 Black TPU Jacket Cold Bend -60C
Nickel-Plated Brass Coupling Nuts
