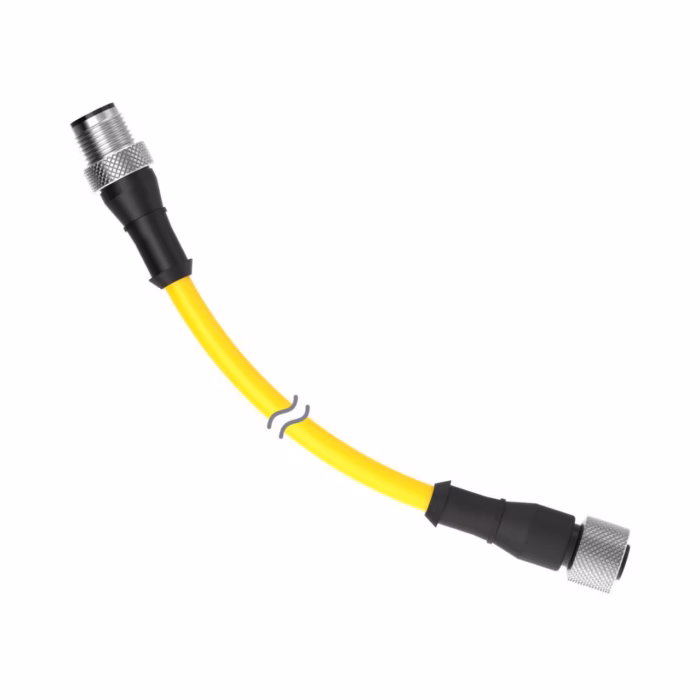

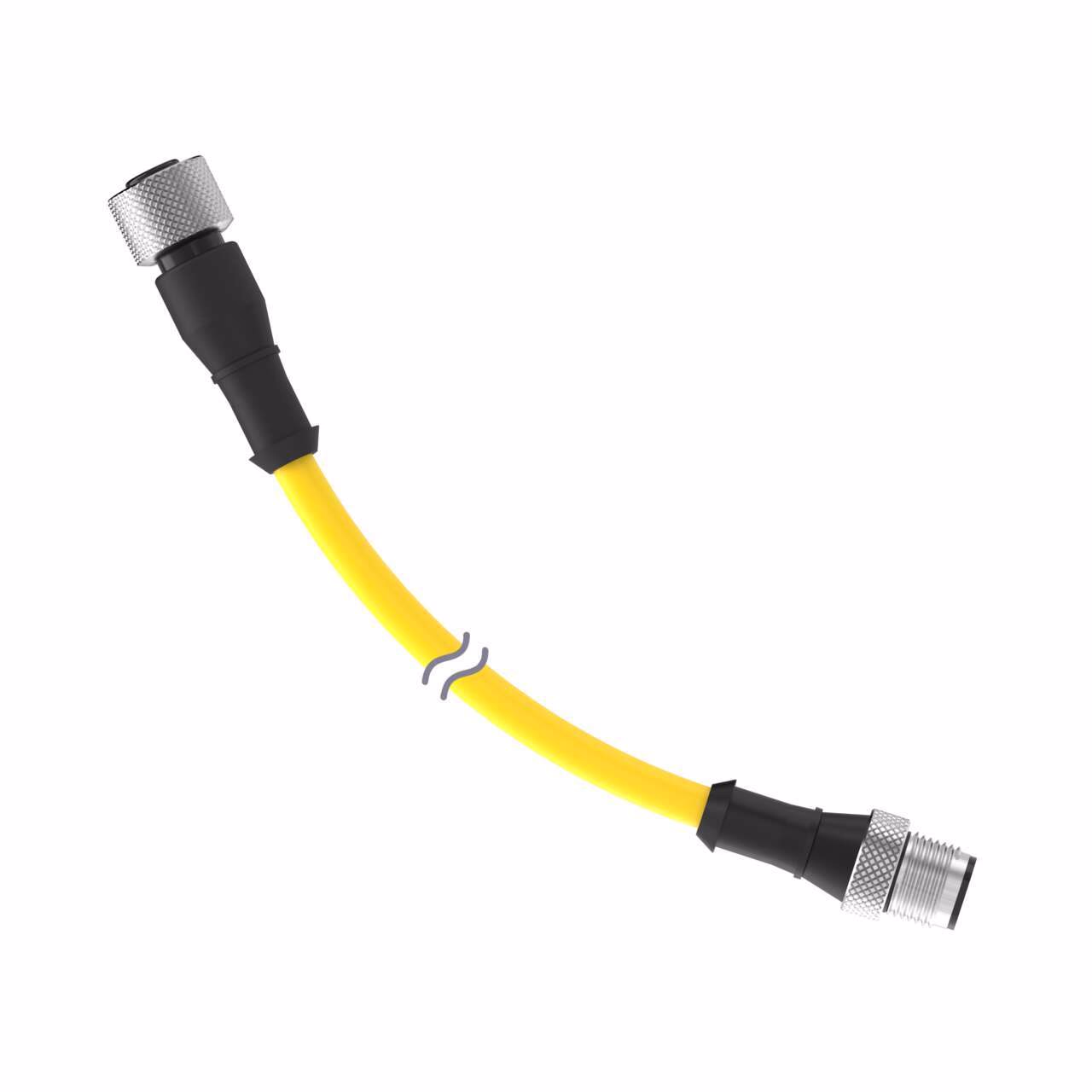

Double-Ended – Banner – DEE2R-821D
Cordset: Double-Ended M12
8-pin Straight Female; 8-pin Straight Male
6.4 m 8×22 Yellow PVC Jacket
Nickel-Plated Brass Coupling Nuts
| Cable Jacket Color | Yellow |
|---|---|
| Cable Jacket Material | PVC |
| Connector 2 Gender | Male |
| Connector 2 Key Code | A |
| Connector 2 Number of Contacts | 8 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 6.4 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 5.46 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | M12 |
| Connector B | Female |
| Current (A) | 2 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V ac/dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP68 |
| Maximum Temp. (Celsius) | 70 |
| Number of pins.1 | 8 |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Double-Ended M12
8-pin Straight Female; 8-pin Straight Male
6.4 m 8×22 Yellow PVC Jacket
Nickel-Plated Brass Coupling Nuts
