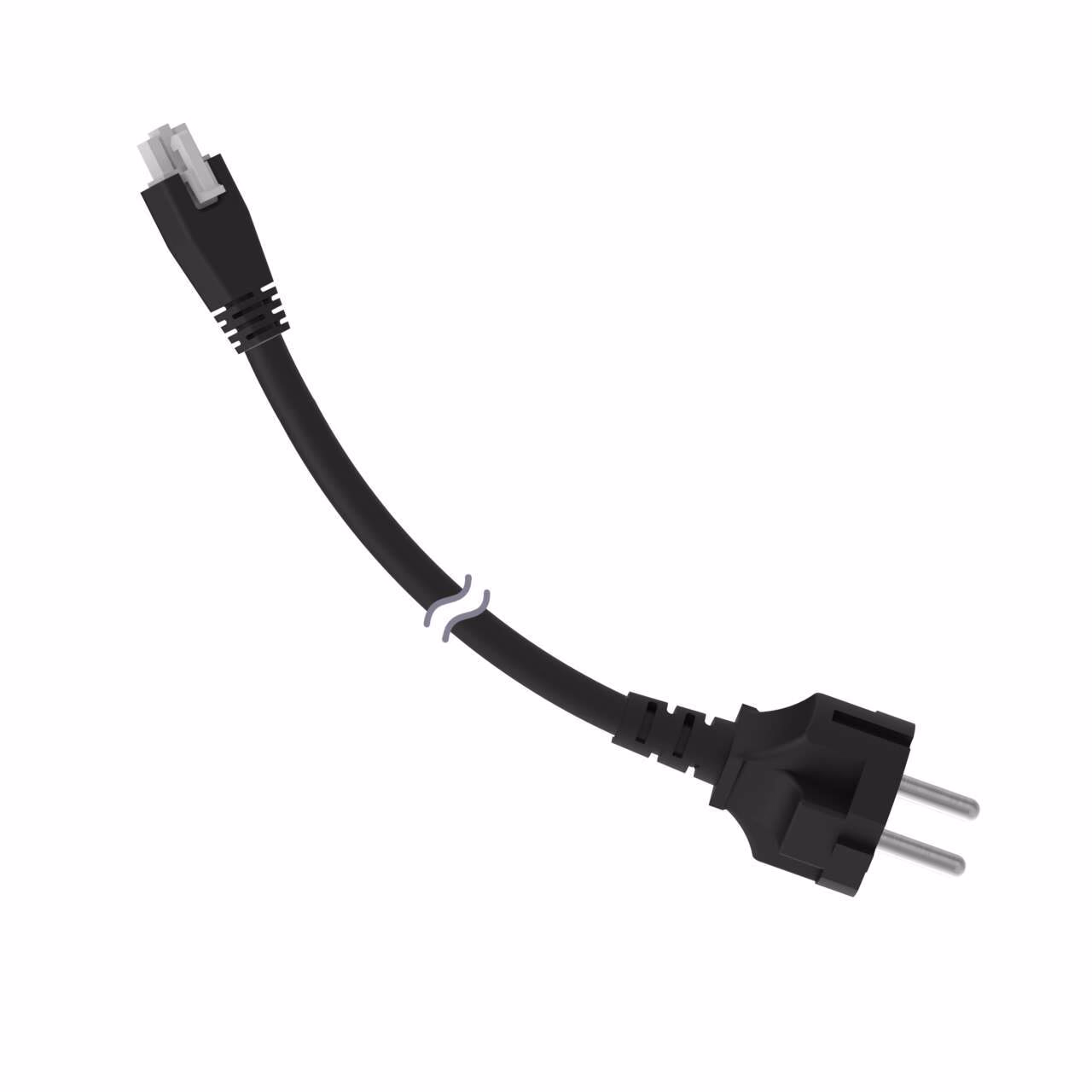

Double-Ended – Banner – LQMAC-325EF
Cordset: Double-Ended Molex to AC Plug
3-pin Straight Female; 3-pin Straight Male
7.62 m 3×18 Black PVC Jacket
PVC Black
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 3.0 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 7.62 |
| Outside Cable Diameter (mm) | 6.8 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Orientation | Straight |
| Connector 1 Type | Molex |
| Connector 2 Type | AC Plug |
| Connector B | Female |
| Current (A) | 3.0 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 300 V ac/dc |
| Overmold Material and Color | PVC Black |
| Protection class shaft | IP50 |
| Maximum Temp. (Celsius) | 105.0 |
| Number of pins.1 | 3.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Double-Ended Molex to AC Plug
3-pin Straight Female; 3-pin Straight Male
7.62 m 3×18 Black PVC Jacket
PVC Black
