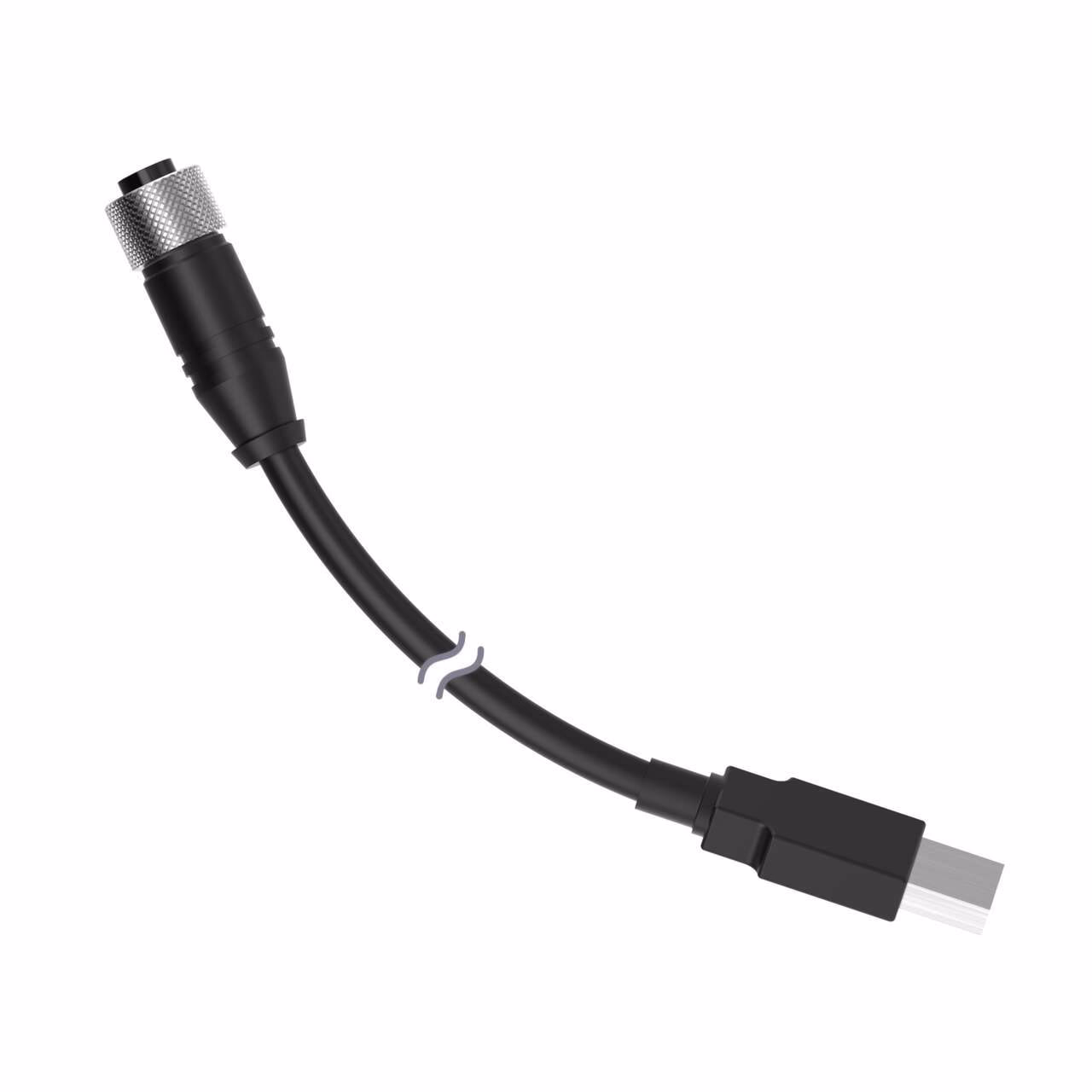

Double-Ended – Banner – MQDEC-1703SS-USB
Cordset: Double-Ended M12 to USB-A
17-pin Straight Female; 4-pin Straight Male
1 m 17×26 Shielded Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
| AWG | 26, 28 |
|---|---|
| Application | Signal |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 4.0 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 1.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 4.0 |
| Shield/No Shield | Shield – Tied to Coupling Nut |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | USB-A |
| Connector B | Female |
| Current (A) | 0.5 |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V dc |
| Overall shield | Shield – Tied to Coupling Nut |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP68 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 17.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Double-Ended M12 to USB-A
17-pin Straight Female; 4-pin Straight Male
1 m 17×26 Shielded Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
