Double-Ended – Banner – MQDEC-WDSS-401SS
Cordset: Double-Ended M12

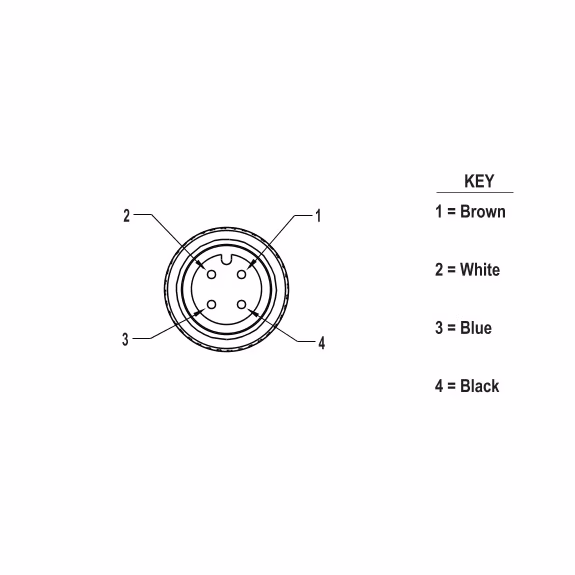

4-pin Straight Female; 4-pin Straight Male
0.31 m 4×22 Black PVC Jacket
PVC Black; 316 Stainless Steel Coupling Nuts
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 4.0 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 0.3 |
| Coupling Nut Material | 316 Stainless Steel |
| Outside Cable Diameter (mm) | 4.80 |
| Shield/No Shield | No Shield |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | M12 |
| Connector B | Female |
| Current (A) | 4.0 |
| Feature | Washdown Rated |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V dc |
| Overmold Material and Color | PVC Black |
| Protection class shaft | IP69 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 4.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | No Trunk |
| Connector 2 Key Code | A |
| Cordset Special Features | Washdown Rated |
Description
Cordset: Double-Ended M12
4-pin Straight Female; 4-pin Straight Male
0.31 m 4×22 Black PVC Jacket
PVC Black; 316 Stainless Steel Coupling Nuts
