Double-Ended – Banner – STP-8M12-4M12D

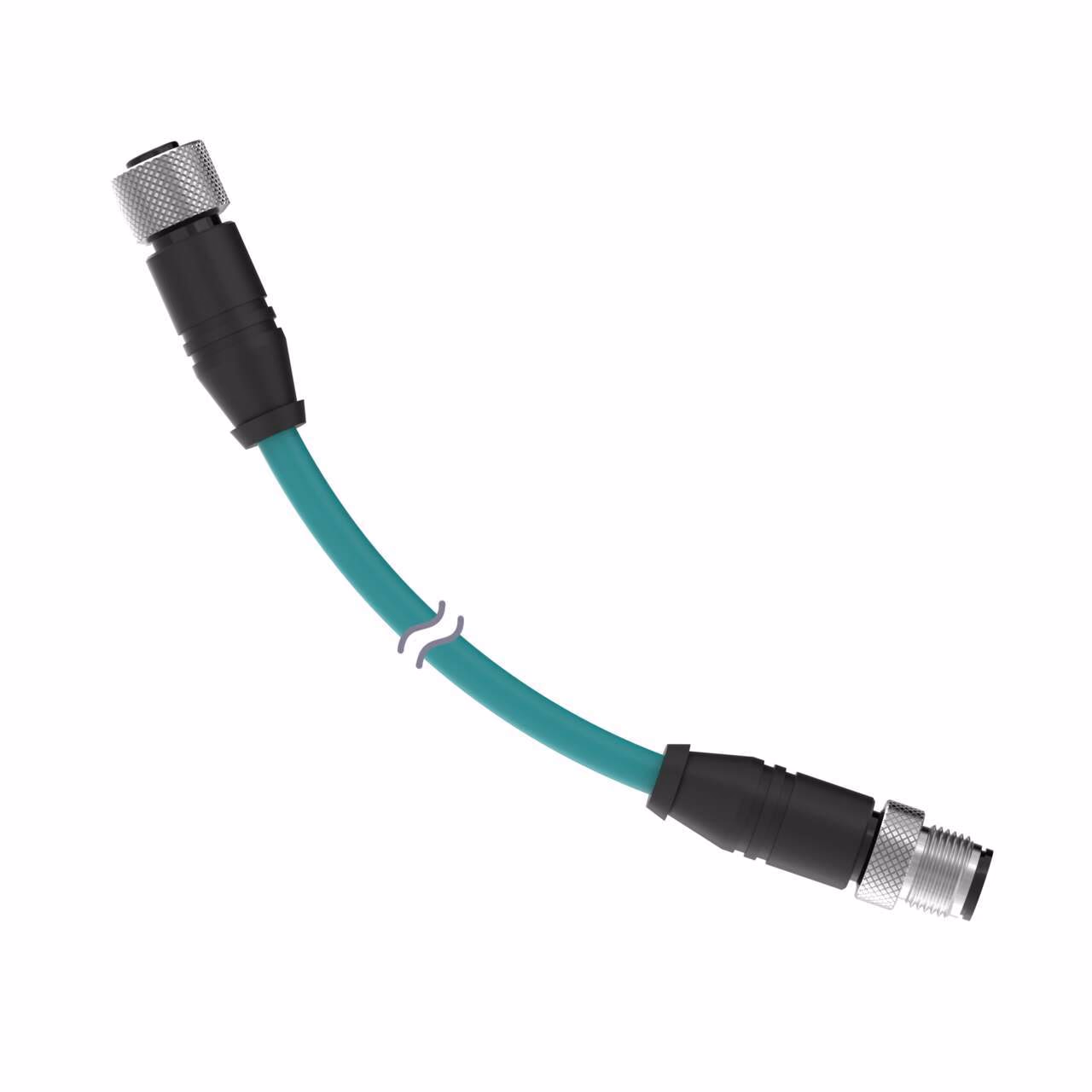

Cordset: Double-Ended M12
4-pin Straight Female D code; 8-pin Straight Male
0.5 m 8×24 Shielded Teal PUR Jacket
Nickel-Plated Brass Coupling Nuts
| Cable Jacket Color | Teal |
|---|---|
| Cable Jacket Material | PUR |
| Connector 2 Gender | Male |
| Connector 2 Key Code | A |
| Connector 2 Number of Contacts | 8.0 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 0.5 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 6.2 |
| Shield/No Shield | Shield – Tied to Coupling Nut |
| Coiled | No |
| Connector 1 Key Code | D |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | M12 |
| Connector B | Female |
| Current (A) | 2.0 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V ac/dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 4.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Double-Ended M12
4-pin Straight Female D code; 8-pin Straight Male
0.5 m 8×24 Shielded Teal PUR Jacket
Nickel-Plated Brass Coupling Nuts
