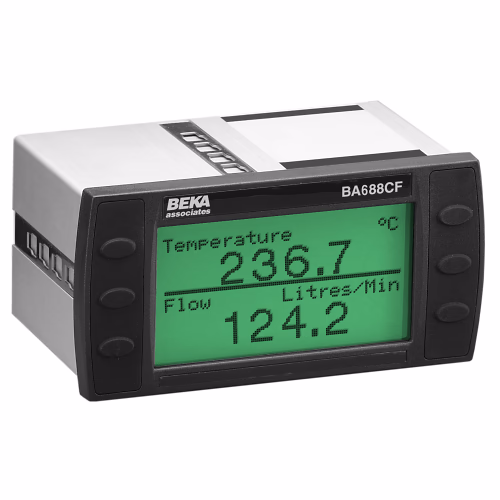

Eight variable PROFIBUS PA display, General purpose, panel mounting – BA688CF-P
Features:
High contrast 86.5mm x 45mm display with backlight.
Up to 8 fieldbus variables
PROFIBUS PA protocol
Bus powered
Six optional alarm outputs
Push buttons may be used to send operator commands to the fieldbus host.
Standard displaysPROFIBUS PA FAQ’S
| Communication protocol | PROFIBUS PA |
|---|---|
| Display | High contrast 86.5mm x 45mmwith backlight, up to 8 fieldbus variables |
| Protection class | IP20, IP66 |
| Brand | Beka |
| Mounting | Panel |
| Options Available | Alarms, Push Buttons |
Product details
This BA688CF-P PROFIBUS PA display instrument can display up to eight fieldbus process variables on a 86.5mm x 45mm screen.
Up to eight fieldbus variables may be displayed at the same time on one of eleven standard display screen formats, together with units of measurement and tag information. The operator can select the displayed screen via the front panel push-buttons, or these buttons may be disabled.
The fieldbus display push buttons may also be used for returning operator commands to the fieldbus host. If large industrial push buttons are required for operator inputs, external push buttons or switches may be connected to the instrument.
The fieldbus display can be supplied with six isolated alarm outputs, each of which may be linked to any of the displayed fieldbus variables. Configuration and alarm setpoints are entered via the front panel push-buttons which may be protected by a security code.
