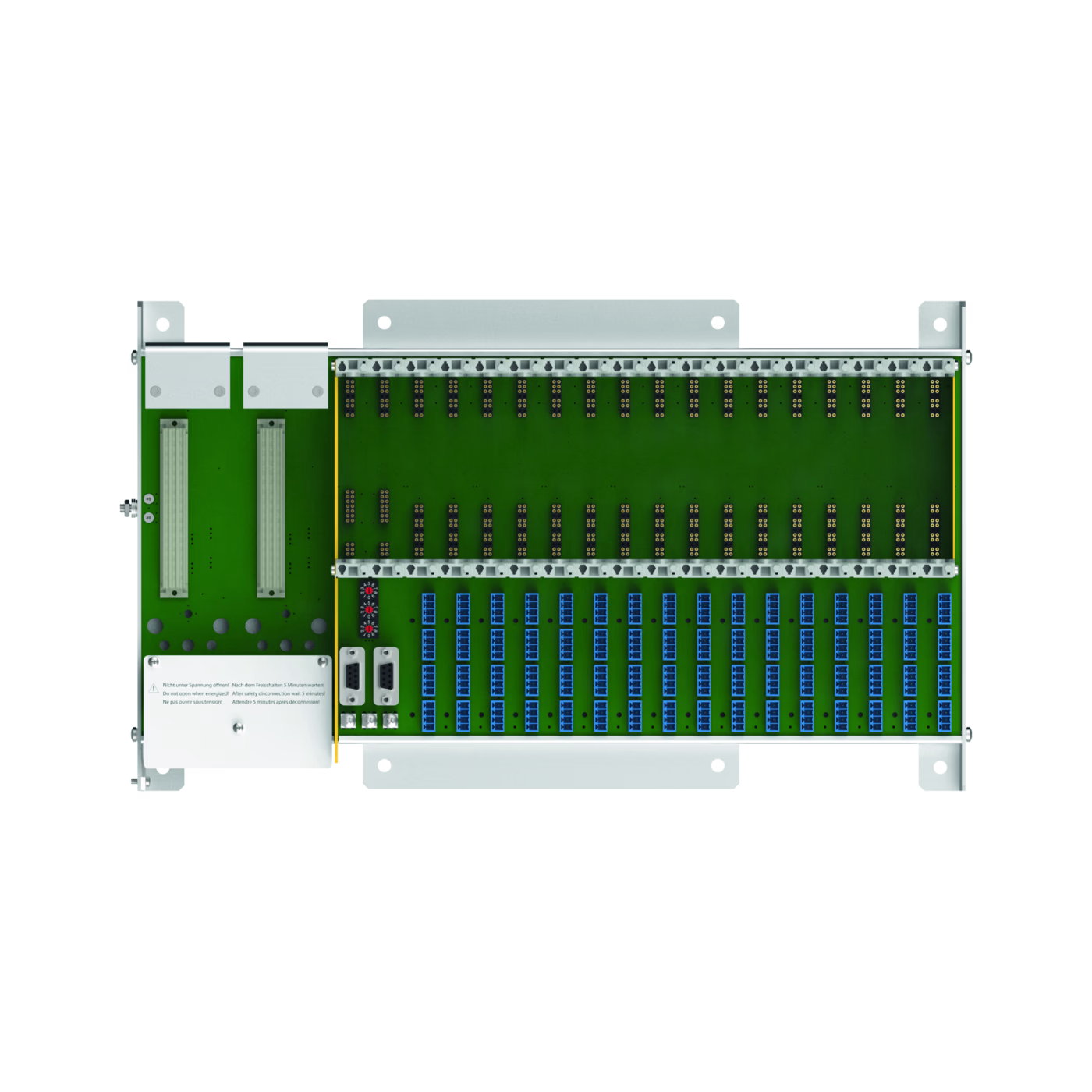

excom I/O System MT16-2G/MSA
excom I/O System
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX, BV, CCC, CE, cFM, cFMus, DNV GL, EAC Ex, IECEx, INMETRO, KCC, KOSHA, KR, LR, UKCA |
| Connection technology signal | Cage clamp terminal, Screw terminal |
| Device type | Module Racks |

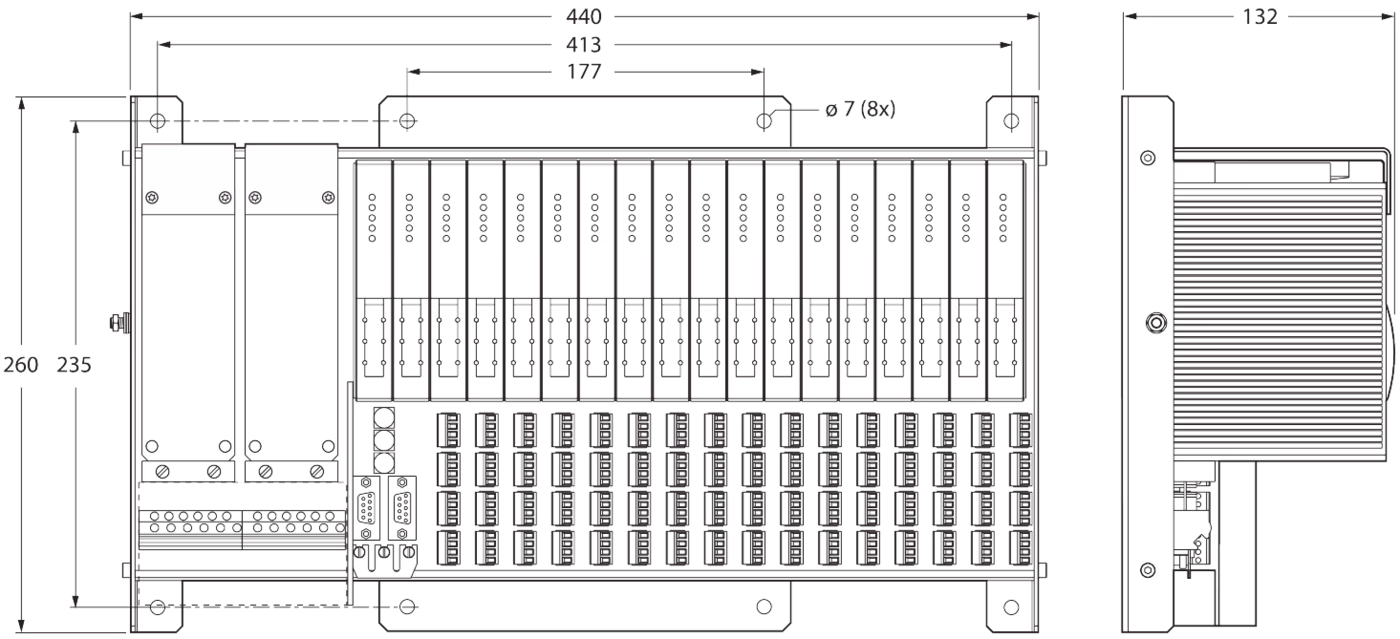

| Dimensions | 260 mm x 440 mm x 130 mm |
| Electrical output | 4 x 4 clamps per module |
| Fieldbus connection technology | 2 × D-SUB, 9-pin |
| Housing material | Aluminium, extrusion profile |
| Network protocol | EtherNet/IP, Modbus TCP, PROFIBUS-DP, PROFINET |
| Protection class | IP20 |
