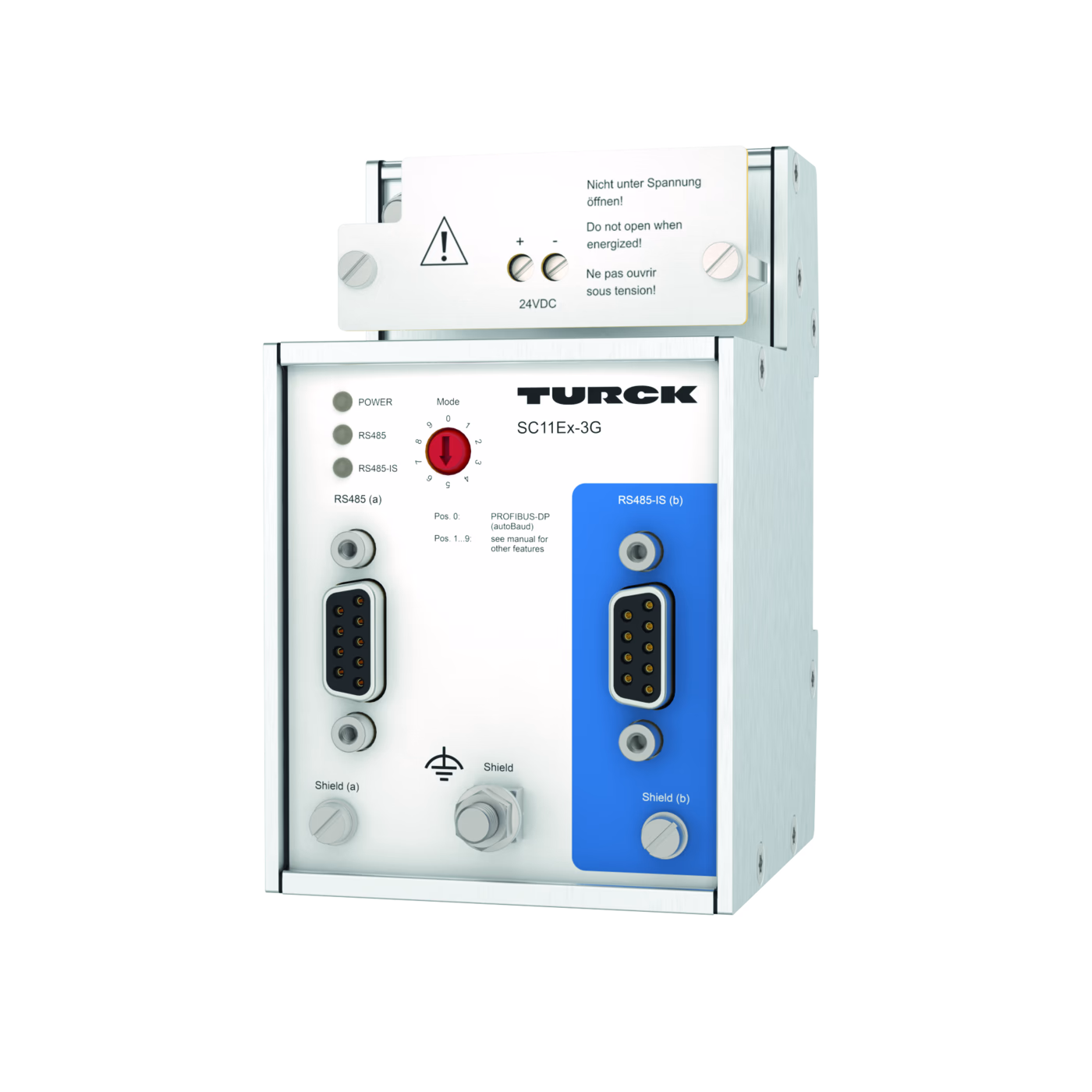

excom I/O System SC11EX-3G
excom I/O System
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX, CCC, CE, cFM, cFMus, EAC Ex, IECEx, KOSHA, UKCA |
| Connection technology signal | D-Sub |
| Device type | Coupler |
| Dimensions | 105 mm x 65 mm x 73.5 mm |
| Housing material | Anodized aluminium |
| Network protocol | PROFIBUS-DP |
| Number of channels | 1 |
| Protection class | IP20 |
