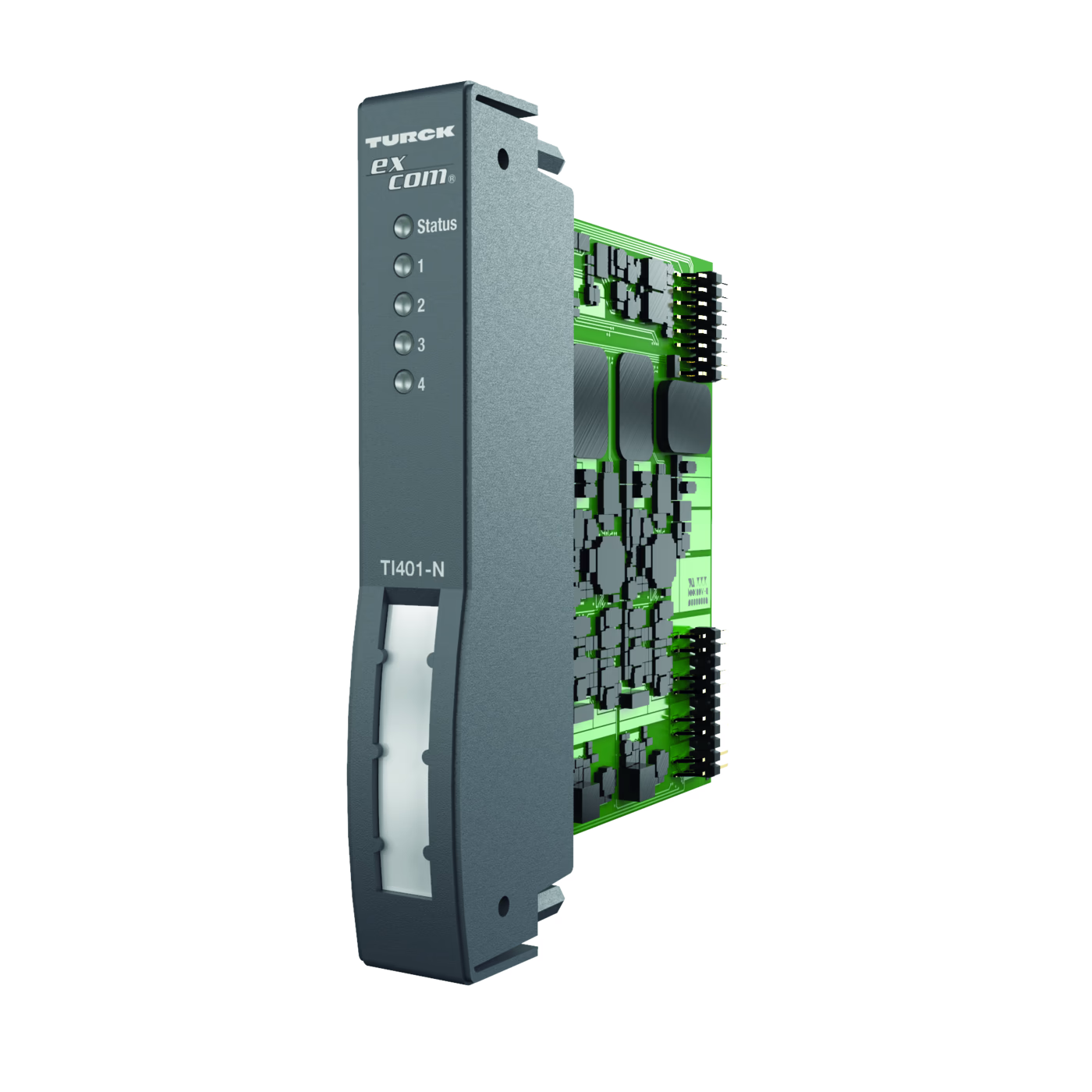

excom I/O System TI401-N
excom I/O System
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX, CE, cFM, cFMus, IECEx |
| Connection technology signal | Cage clamp terminal, Screw terminal |
| Device type | I/O Module |
| Dimensions | 118 mm x 18 mm x 106 mm |
| Housing material | Plastic |
| Installation area | zone 2 |
| Network protocol | EtherNet/IP, Modbus TCP, PROFIBUS-DP, PROFINET |
| Number of channels | 4 |
| Protection class | IP20 |
| Signal type | Analog input, Non-intrinsically safe |
