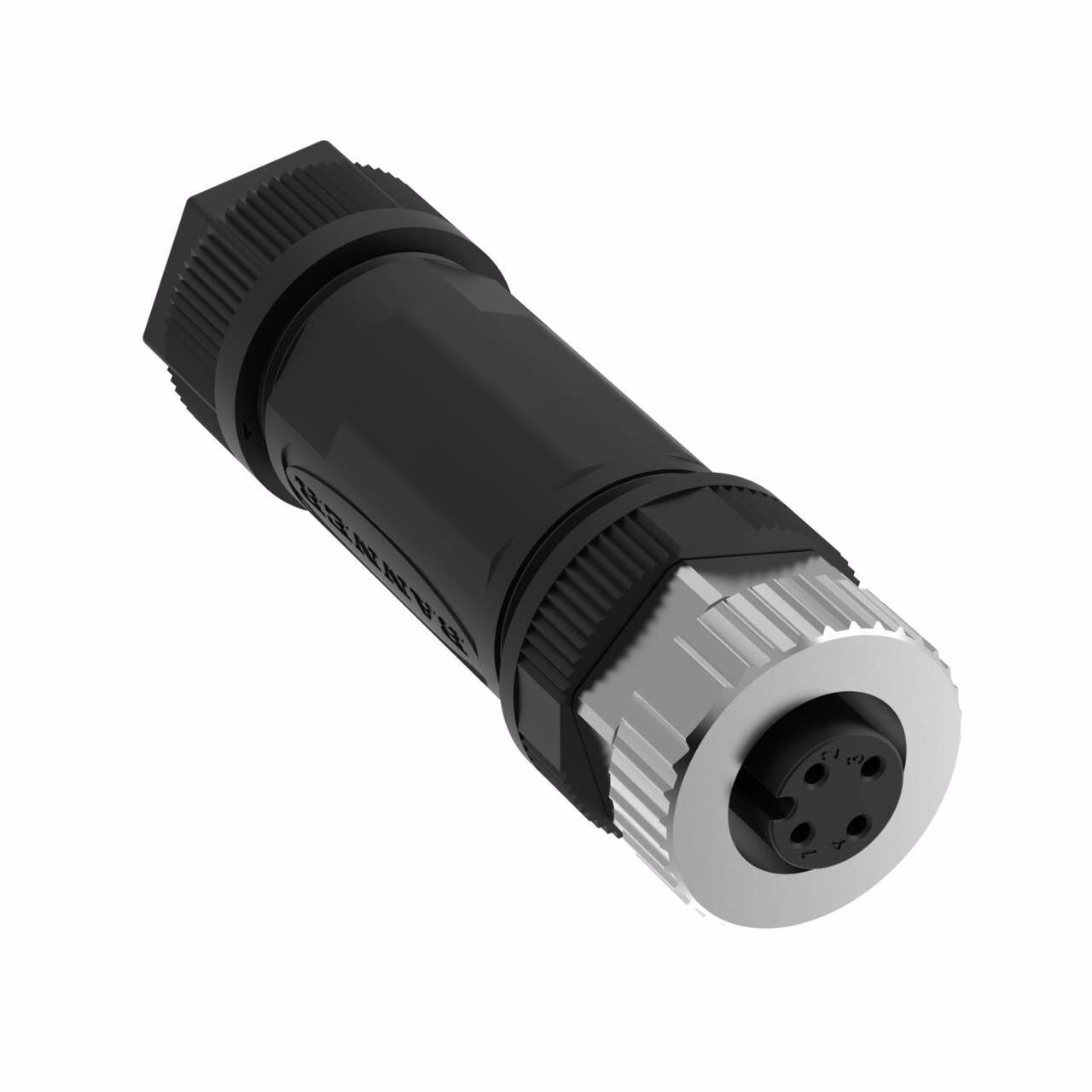

Field Wireable – Banner – BFW-M12F4-6SL
Field Wireable: M12
4-pin Straight Female
22 AWG 4-6 mm Cable Range; Slide Lock Terminal
Plastic Black Body; Aluminum Alloy Coupling Nut
| Outside Cable Diameter (mm) | 4 to 6.5 |
|---|---|
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector B | Female |
| Current (A) | 4.0 |
| EPLAN Original Sent Date | 03/26/2025 |
| EPLAN Status | Published |
| Item Status | RELEASED |
| Operating voltage | 250 V ac/dc |
| Protection class shaft | IP68 |
| Termination | Slide Lock |
| Maximum Temp. (Celsius) | 85.0 |
| Number of pins.1 | 4.0 |
| Minimum Temp. (Celsius) | -40.0 |
Description
Field Wireable: M12
4-pin Straight Female
22 AWG 4-6 mm Cable Range; Slide Lock Terminal
Plastic Black Body; Aluminum Alloy Coupling Nut
