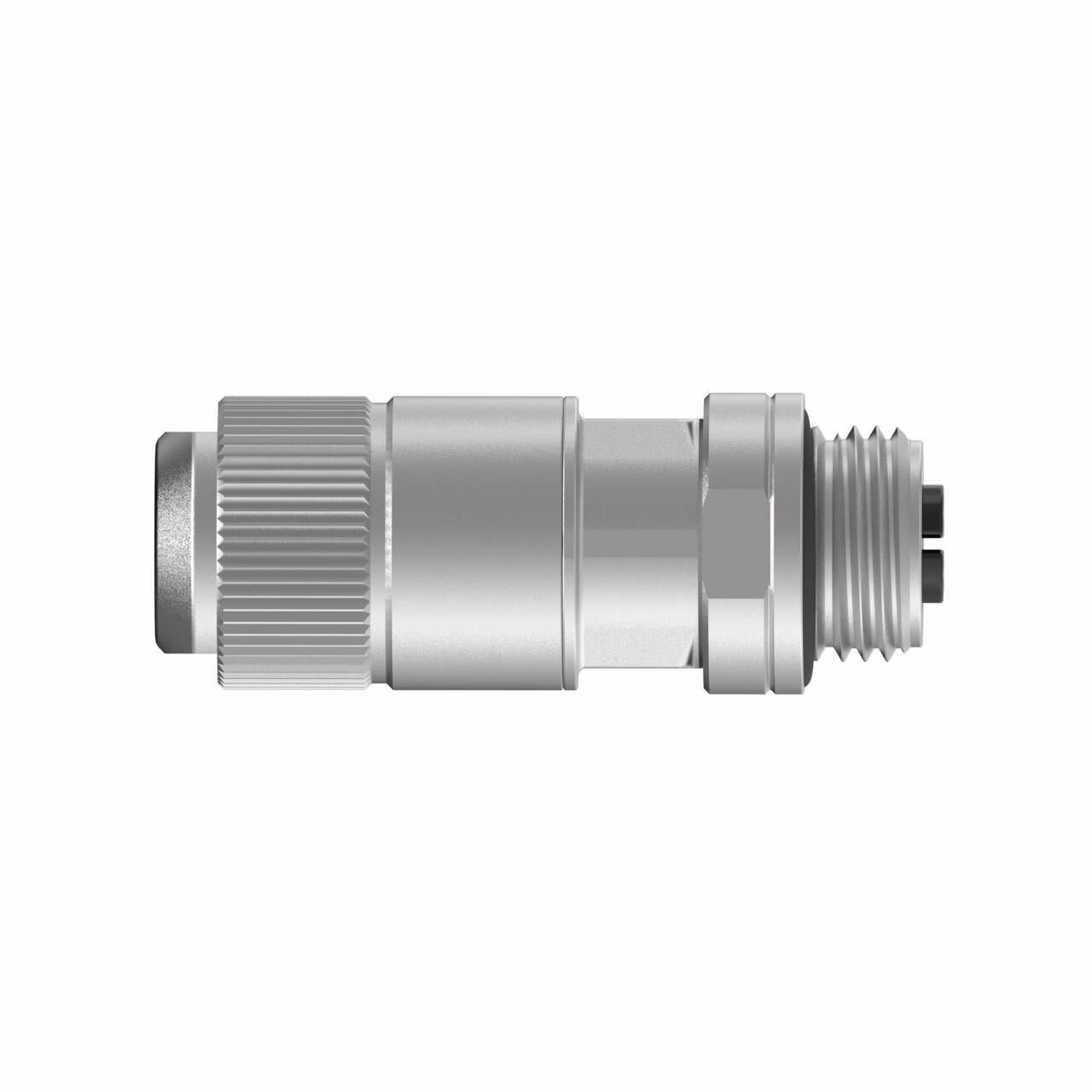

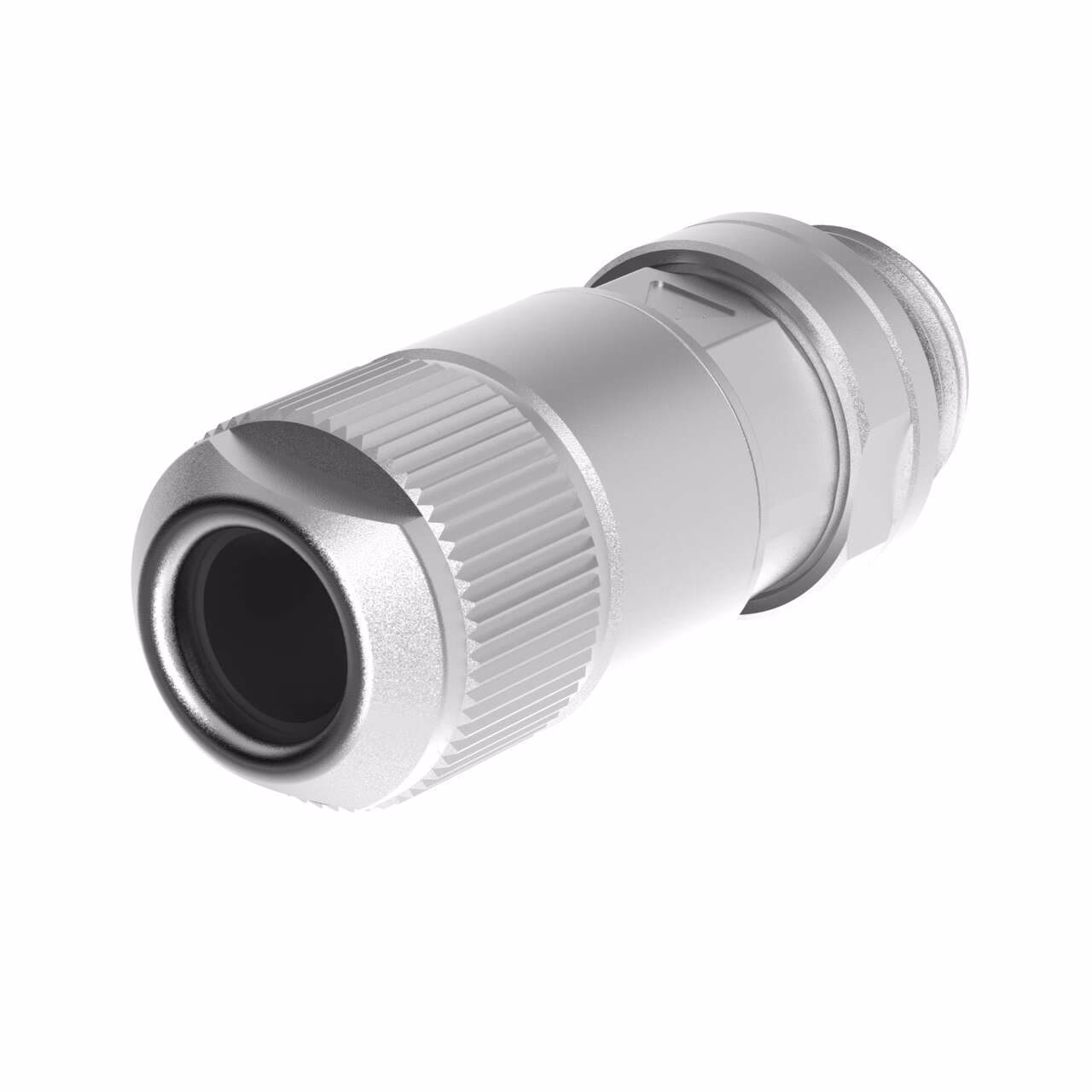

Field Wireable – Banner – BFW-M12XF8-9X
Field Wireable: M12 X-Code
8-pin Straight Female
22-27 AWG 5.5-9 mm Cable Range; IDC Connection
Nickel-Plated Brass / Zinc Die-Cast Nickel-Plated Body; Zinc Alloy Die-Cast Coupling Nut
| Connector 1 Thread/Snap | Threaded |
|---|---|
| Coupling Nut Material | Zinc Alloy Die Cast |
| Number of Conductors | 8.0 |
| Outside Cable Diameter (mm) | 5.5 – 9 |
| Wire AWG | 22 – 27 |
| Connector 1 Key Code | X |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector B | Female |
| Current (A) | 0.5 |
| EPLAN Original Sent Date | 09/18/2025 |
| EPLAN Status | Pending Publish |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Operating voltage | 50 V ac / 60 V dc |
| Overmold Material and Color | Zinc Alloy Die Cast |
| Protection class shaft | IP67 |
| Termination | Insulation Displacement |
| Maximum Temp. (Celsius) | 80.0 |
| Number of pins.1 | 8.0 |
| Minimum Temp. (Celsius) | -40.0 |
Description
Field Wireable: M12 X-Code
8-pin Straight Female
22-27 AWG 5.5-9 mm Cable Range; IDC Connection
Nickel-Plated Brass / Zinc Die-Cast Nickel-Plated Body; Zinc Alloy Die-Cast Coupling Nut
